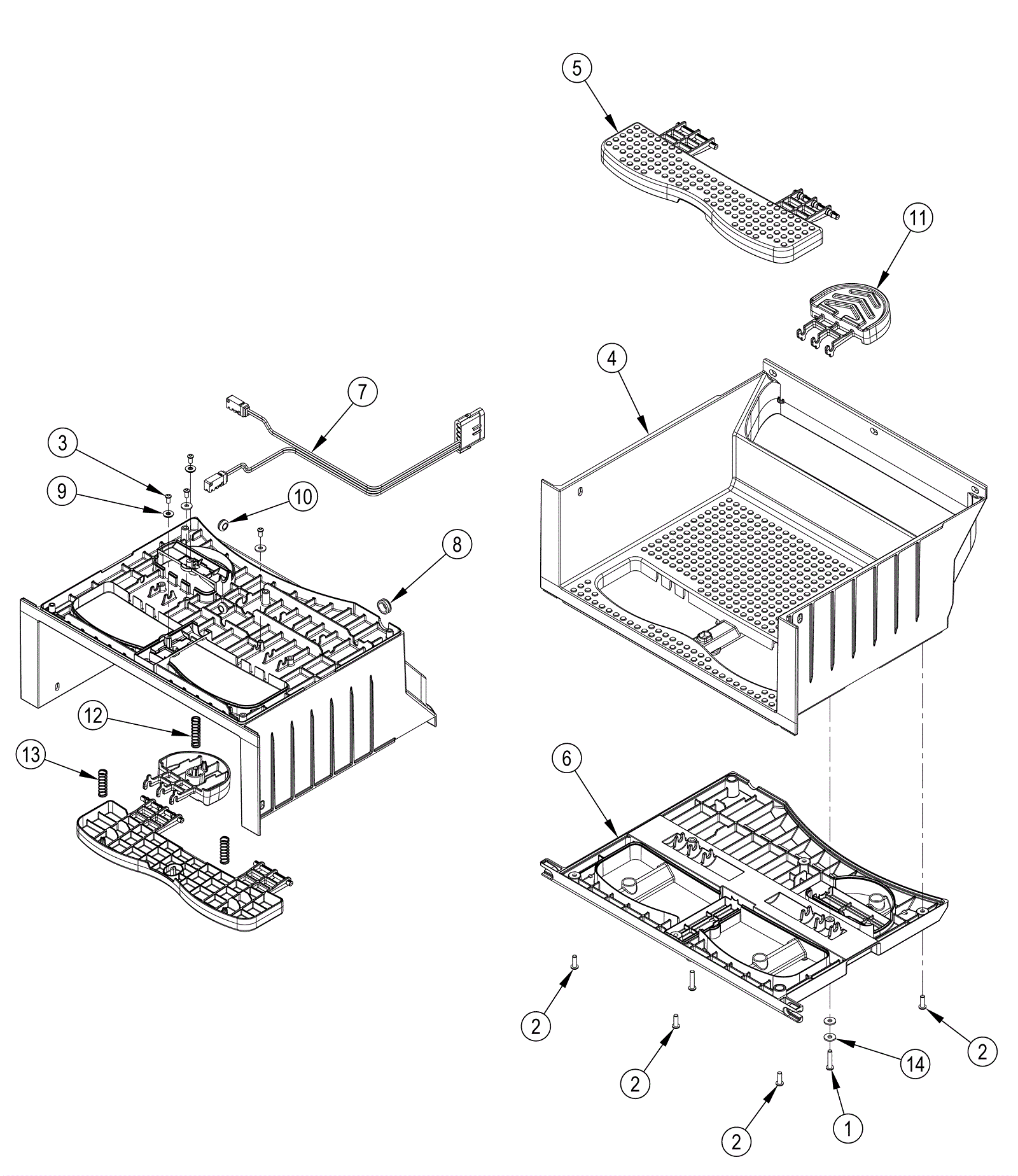

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(only avaliable in KIT1)(screw 10-14 x 1.0 pan head phillips plastite) |
|
2 |
N/A
|
Not available |
6 |
(only avaliable in KIT1)(screw 10-14 x .62 pan head phillips plastite) |
|
3 |
N/A
|
Not available |
4 |
(only avaliable in KIT1)(screw M5 x 2.3 x 10mm pan head phillips plastite) |
|
4 |
272-6680
|
Upper platform |
1 |
|
|
5 |
272-6681
|
Safety pedal |
1 |
|
|
6 |
272-6683
|
Bottom platform |
1 |
|
|
7 |
572-6040
|
Switch harness |
1 |
|
|
8 |
172-9055
|
Grommet |
1 |
|
|
9 |
N/A
|
Not available |
2 |
(only avaliable in KIT1)(washer) |
|
10 |
272-6686
|
Grommet |
2 |
|
|
11 |
472-8293
|
Pedal |
1 |
|
|
12 |
472-8294
|
SPRING-COMPRESSION-SS-.480 OD |
1 |
|
|
13 |
472-8297
|
SPRING-COMPRESSION-M/W-.480 OD |
2 |
|
|
14 |
N/A
|
Not available |
6 |
(only avaliable in KIT1)(washer M5 x 15 plain) |
|
KIT1 |
272-6687
|
Platform hardware kit |
1 |
(includes 1-3,9 and 14) |
|
