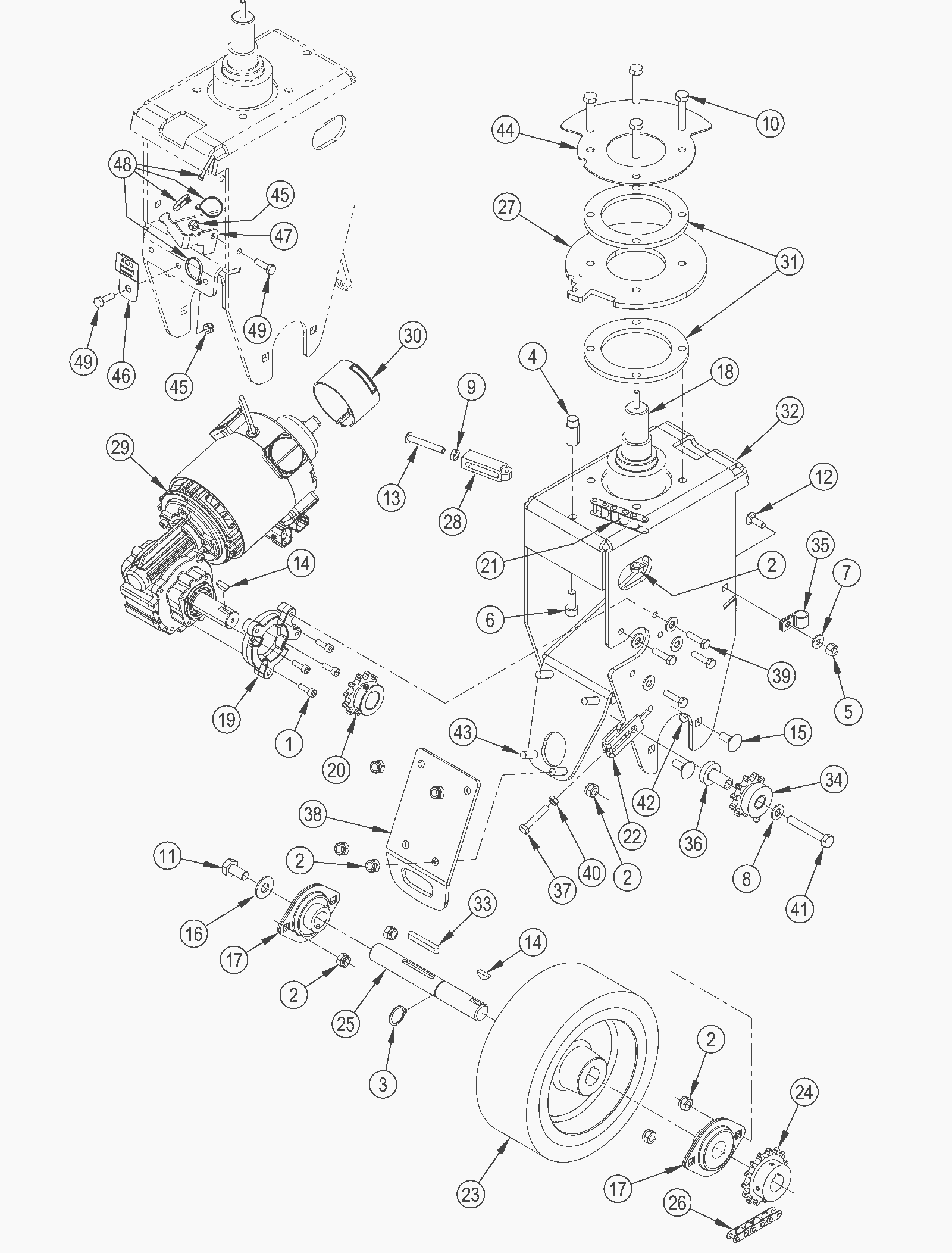

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
4 |
(only available in KIT1 and KIT4)(screw M5 x 16 cap hex head socket) |
|
2 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
13 |
|
|
3 |
172-4754
|
Snap ring |
1 |
|
|
4 |
N/A
|
Not available |
1 |
(only available in KIT4)(stop steering bushing) |
|
5 |
N/A
|
Not available |
1 |
(only available in KIT4)(nut 1/4-20 nylon hex loc stainless steel) |
|
6 |
N/A
|
Not available |
1 |
(only available in KIT4)(screw M8 x 20.0 socket head) |
|
7 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
8 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
1 |
|
|
9 |
999-0971
|
Nut 1/4-20 jam stainless steel |
1 |
|
|
10 |
N/A
|
Not available |
4 |
(only available in KIT4)(screw M8 x 45 hex head) |
|
11 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
1 |
|
|
12 |
999-1400
|
Screw 1/4-20 x 1 3/4 carriage head stainless steel |
1 |
|
|
13 |
999-0599
|
Screw 1/4-20 x 1 3/4 pan head phillips stainless steel |
1 |
|
|
14 |
472-3576
|
KEY-WDF 5X6.5 DIN 6888 |
2 |
|
|
15 |
472-3589
|
Screw M8-1.25 X 20mm carriage head stainless steel |
4 |
|
|
16 |
272-6673
|
Washer |
1 |
|
|
17 |
572-6026
|
Axle bearing (obsolete) |
2 |
|
|
18 |
572-6027
|
Spindle weldment |
1 |
|
|
19 |
N/A
|
Not available |
1 |
(only available in KIT1)(spacer) |
|
20 |
N/A
|
Not available |
1 |
(only available in KIT3)(11 tooth sprocket) |
|
21 |
272-6672
|
Roller chain |
1 |
|
|
22 |
N/A
|
Not available |
1 |
(only available in KIT3)(Idler adjustment bracket) |
|
23 |
572-6028
|
Drive wheel |
1 |
|
|
24 |
N/A
|
Not available |
1 |
(only available in KIT3)(15 tooth sprocket) |
|
25 |
572-6029
|
Drive axle |
1 |
|
|
26 |
N/A
|
Not available |
1 |
(only available in KIT3)(Roller chain) |
|
27 |
572-6030
|
Steering plate |
1 |
|
|
28 |
572-6031
|
Chain tensioner |
1 |
|
|
29a |
N/A
|
Not available |
1 |
(only available in KIT1)(Drive wheel motor) |
|
29b |
572-6032
|
Electromagnetic brake kit |
1 |
(Electromagnetic Brake Kit 56104850 can be used to replace Brake-Electromagnetic as a separate repair part for the Drive Wheel Motor) (optional) |
|
30 |
572-6033
|
Brake boot |
1 |
|
|
31 |
572-6034
|
Switch cam spacer |
2 |
|
|
32 |
372-1362
|
Drive wheel frame weldment |
1 |
|
|
33 |
172-3388
|
Square keyway |
1 |
|
|
34 |
N/A
|
Not available |
1 |
(only available in KIT3)(Sprocket assembly) |
|
35 |
N/A
|
Not available |
1 |
(only available in KIT4)(p-clamp) |
|
36 |
N/A
|
Not available |
1 |
(only available in KIT3 and KIT4)(flanged bushing) |
|
37 |
N/A
|
Not available |
1 |
(only available in KIT3 and KIT4)(Screw M6x35 Hex head stainless steel) |
|
38 |
572-6035
|
Tie down bracket |
1 |
|
|
39 |
N/A
|
Not available |
4 |
(only available in KIT1 and KIT4)(Screw M6-1.0x25mm hex head stainless stell) |
|
40 |
N/A
|
Not available |
1 |
(only available in KIT3)(Nut M6 Hex stainless steel) |
|
41 |
N/A
|
Not available |
1 |
(only available in KIT3 and KIT4)(screw M8x55 Hex head stainless steel) |
|
42 |
372-3071
|
Washer M8 (set of 10) |
8 |
|
|
43 |
N/A
|
Not available |
4 |
(only available in KIT4)(Screw M8x25) |
|
44 |
572-6036
|
Home position cam |
1 |
|
|
45 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
46 |
372-3148
|
Connector clip |
1 |
|
|
47 |
572-6037
|
Rentention harness brakcet |
1 |
|
|
48 |
372-2096
|
Cable tie |
4 |
|
|
49 |
272-0780
|
Screw M6 x 20 hex head stainless steel (set of 10) |
2 |
|
|
KIT1 |
572-6038
|
Drive wheel motor kit |
1 |
(includes 1,14,19,29a,39, and 42) |
|
KIT3 |
272-6676
|
Sprocket and chain kit |
1 |
(includes 2) |
|
KIT4 |
572-6039
|
Drive wheel hardware kit |
1 |
(includes 1-16,33,35-37,39,41-43) |
|
KIT5 |
272-6679
|
Front wheel bearings kit |
1 |
(includes 2,15,17, and 42) |
|
