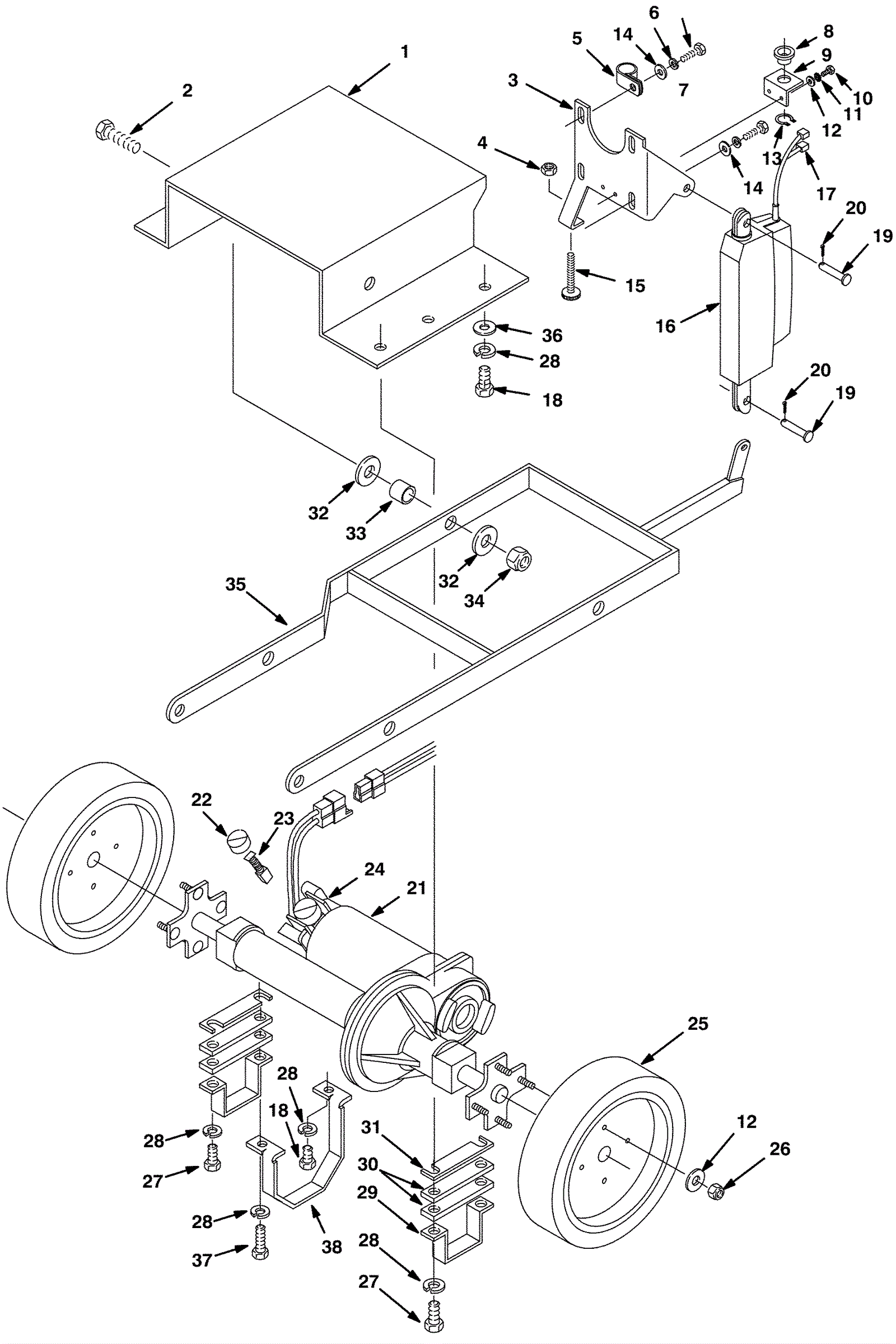

Drive Assembly - Before 02.2002

#PartDescription ReqNotesAvailability
1 175-3002 Base transaxle plate 1
2 999-0687 Bolt 1/2-13 x 1 1/4 hex head stainless steel 2
3 275-4594 Actuator bracket 1
4 999-0430 Nut 5/16-18 hex jam plain finish 2
5 175-3005 P clamp 1
6 999-0553 Washer 5/16 medium split lock stainless steel 4
7 999-1653 Screw M8-1.25 x 30mm hex head stainless steel 4
8 175-8735 Cable bushing 1
9 175-3007 Cable guide bracket 1
10 999-0807 Screw M6-1 x 10mm flat head phillips 2
11 999-1024 Washer 1/4 external tooth lock stainless steel 2
12 999-0016 Washer 1/4 flat plain finish 10
13 175-3008 Retaining ring 1
14 999-0024 Washer 5/16 flat stainless steel 4
15 175-3009 Round knob assembly 1
16 175-3010 Actuator 1
17 175-3011 Female terminal 2
18 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel 2
19 175-3012 Clevis pin 2
20 175-5080 Cotter pin 2
21 175-3013 24V transaxle kit (OBSOLETE) 1
22 175-3014 Cap 2
23 175-3015 Carbon brush (sold individually) 2
24 175-3013 24V transaxle kit (OBSOLETE) 1
25 175-3017 Neoprene solid wheel (OBSOLETE) 2
26 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel 8
27 175-3019 Screw M10 x 35mm 3
28 999-1081 Washer M10 split lock stainless steel 6
29 175-3020 Transaxle mounting bracket 2
30 175-3021 Axle spacer (OBSOLETE) 4
31 175-3022 Spacer (OBSOLETE) 2
32 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
33 175-3023 Bushing 2
34 999-1208 Nut 1/2-13 nylon insert lock stainless steel 2
35 175-3650 Lift scrub head bracket 1
36 999-0617 Washer 3/8 x 1 flat stainless steel 2
37 175-5037 Bolt M10 x 45mm hex head 1
38 175-3026 Transaxle guard (OBSOLETE) 1
