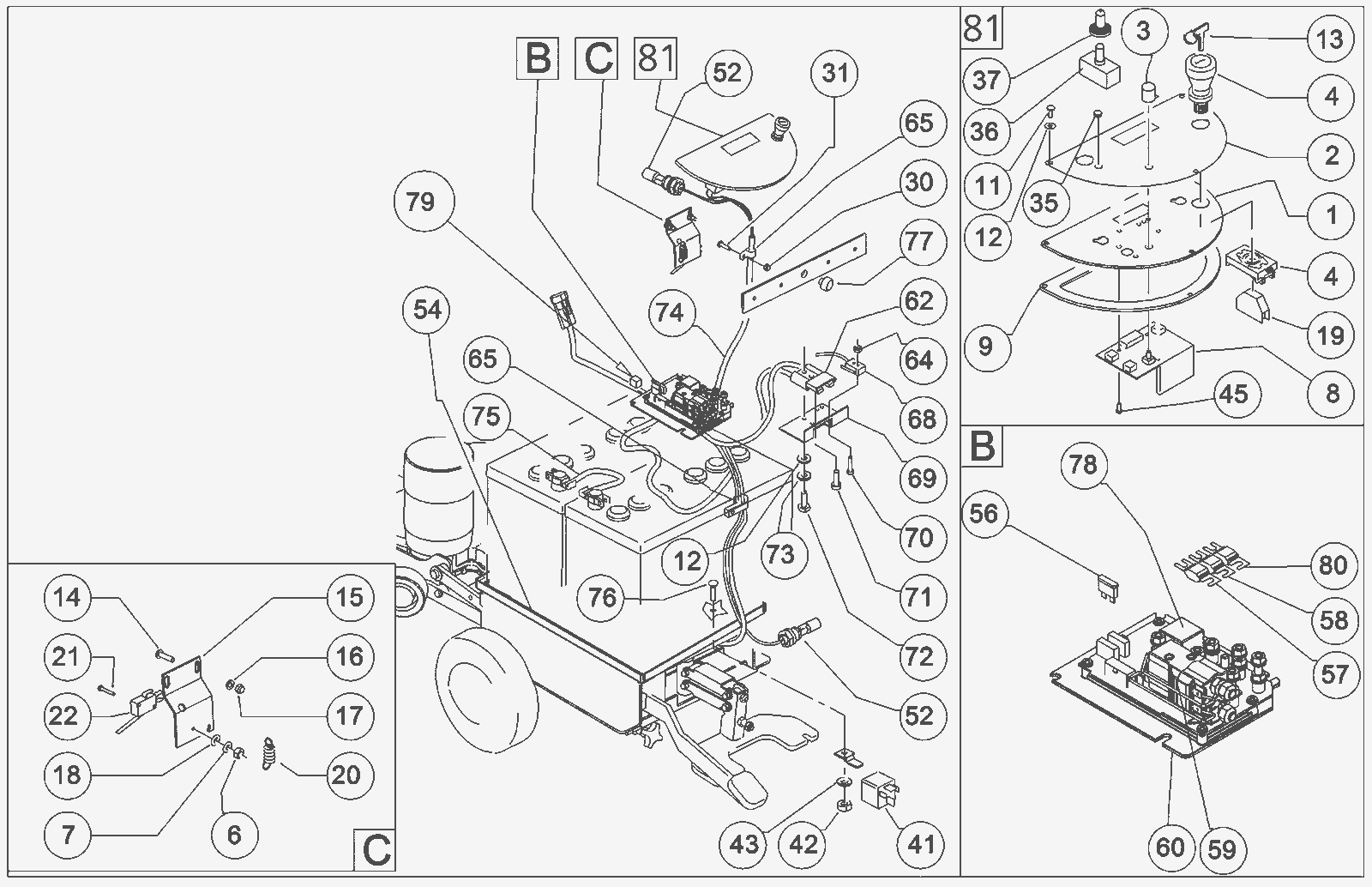

1040S Electrical Components Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-9778 Support Call for price 1 usually ships 5-16 days
2a 375-9780 Decal Call for price 1 (EMEA model) usually ships 5-16 days
2b 375-9779 Decal $14.63 1 (traction model) usually ships 5-16 days
3 375-9781 Potentiometer knob $7.70 1 usually ships 5-16 days
4 375-9782 Emergency key switch $70.84 1 usually ships 5-16 days
6 999-1419 Nut M3-.5 hex stainless steel $0.99 7 ships same day
7 375-9784 Washer Call for price 7 usually ships 5-16 days
8a 375-9786 Circuit board display $280.50 1 (EMEA model) (EMEA model) usually ships 5-16 days
8b 375-9785 Circuit board assembly $509.74 1 (traction model) usually ships 5-16 days
9 375-9787 Gasket $28.05 1 usually ships 5-16 days
11 375-9680 Screw M4 x 10 inox $3.96 3 usually ships 5-16 days
12 375-9531 Washer D. 4 inox $2.90 10 usually ships 5-16 days
13 375-9788 Keys $32.23 1 ships same day
14 375-9483 Screw M5 x 16 inox $0.50 2 ships same day
15 375-9789 Plate $25.19 1 usually ships 5-16 days
16 375-9666 Washer D5 inox $2.90 2 usually ships 5-16 days
17 375-9665 Nut M5 inox Call for price 6 usually ships 5-16 days
18 375-9790 Washer $2.90 2 usually ships 5-16 days
19 375-9791 Contact $7.15 1 usually ships 5-16 days
20 375-9649 Spring $9.79 1 ships same day
21 375-9792 Screw $3.96 2 usually ships 5-16 days
22 375-9793 Handle switch $28.71 1 usually ships 5-16 days
30 375-9661 Nut M4 inox $3.43 1 usually ships 5-16 days
31 375-9794 Screw $3.96 5 usually ships 5-16 days
35 375-9795 Screw cap $11.88 1 usually ships 5-16 days
36 375-9796 250VAC 10A switch $40.48 1 usually ships 5-16 days
37 375-9797 Rubber deviator $11.88 1 usually ships 5-16 days
41 375-9798 24V relay $73.37 1 usually ships 5-16 days
42 375-9499 Nut M6 inox $3.43 1 usually ships 5-16 days
43 375-9508 Washer D. 6 inox $2.90 1 usually ships 5-16 days
45 375-9799 Screw $3.96 3 usually ships 5-16 days
52 375-9800 Shutoff float $74.47 2 usually ships 5-16 days
54 375-9801 Battery support $41.69 1 usually ships 5-16 days
56 375-9802 2AL fuse Call for price 1 usually ships 5-16 days
57 375-9803 50A fuse $30.69 1 usually ships 5-16 days
58 375-9804 40A fuse $16.50 1 ships same day
59 375-9805 100A contactor $118.58 1 usually ships 5-16 days
60 375-9806 Main circuit board $282.48 1 usually ships 5-16 days
62a 375-9808 Connector $63.58 1 (EMEA model) usually ships 5-16 days
62b 375-9807 Plug $58.52 1 (traction model) usually ships 5-16 days
64 375-9809 Nut M2 $3.43 2 usually ships 5-16 days
65 375-9636 Clamp $1.32 2 usually ships 5-16 days
68 375-9810 Microswitch charging plug $68.31 1 usually ships 5-16 days
69 375-9811 Support $14.30 1 usually ships 5-16 days
70 375-9812 Screw M2 x 16 $3.96 2 usually ships 5-16 days
71 375-9813 Screw $3.96 1 usually ships 5-16 days
72 375-9657 Screw M4 x 25 $3.96 2 usually ships 5-16 days
73 375-9525 Washer D. 4 $2.90 2 usually ships 5-16 days
74a 375-9815 Wiring Call for price 1 (EMEA model) usually ships 5-16 days
74b 375-9814 Wiring Call for price 1 (traction model) usually ships 5-16 days
75 375-9816 Battery bridge with terminal wiring $84.26 1 usually ships 5-16 days
76 375-9817 Screw $3.96 1 usually ships 5-16 days
77 375-9818 Cap $1.85 1 usually ships 5-16 days
78 375-9819 24V 70A relay $55.99 1 ships same day
79 375-9820 Mousse M20 x 15 x 18 $19.47 1 usually ships 5-16 days
80 375-9821 30A fuse $12.54 1 ships same day
81a 375-9777 Board $335.17 1 (EMEA model) usually ships 5-16 days
81b 375-9776 Board $1,085.04 1 (traction model) usually ships 5-16 days
