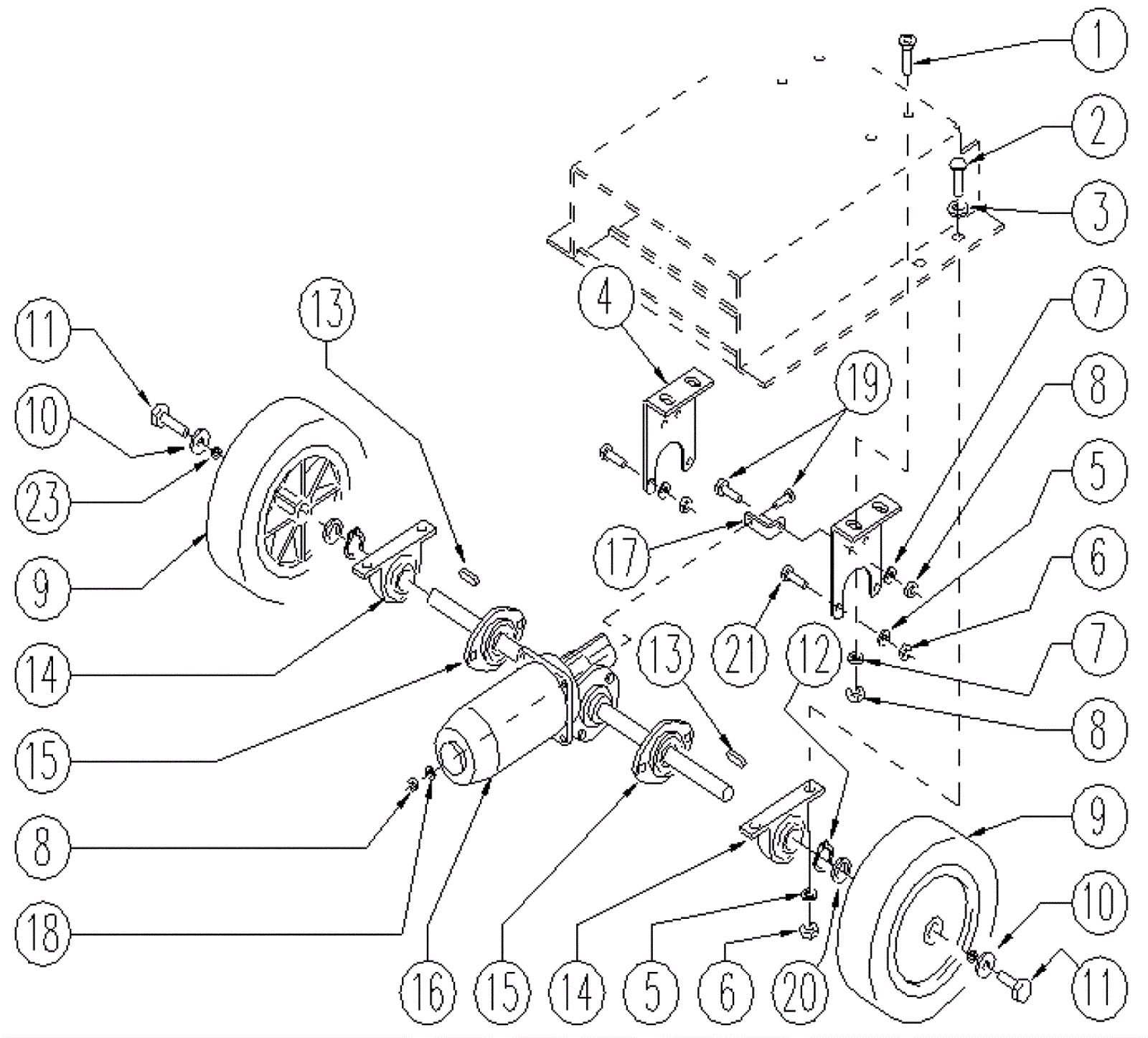

Pad Assist Traction Motor Assembly

#PartDescription ReqNotesAvailability
1 375-9764 Screw M6 x 20 4
2 375-9765 Screw 4
3 375-9714 Washer D12 x 24 inox 4
4 375-9766 Motor bracket 2
5 189-0897 Washer D8 8
7 189-1391 Washer D6 5
8 375-9499 Nut M6 inox 6
9 375-9767 Wheel 2
10 375-9615 Washer D. 8 x 24 inox 2
11 189-1357 Screw 6 x 12 inch 2
12 189-7523 Outer snap ring 2
13 375-9769 Key 2
14 375-9770 Bearing flange 2
15 189-0226 Bearing 2
16a 375-9773 24V motor 1
16b 375-9772 Carbon 2
17 375-9774 Small square 1
18 203-1286 Washer D6 1
19 375-9532 Screw 6 x 20 inox 2
20 203-1274 Washer 2
21 375-9703 Screw M8 x 25 inox 4
23 375-9732 Washer D8 2
