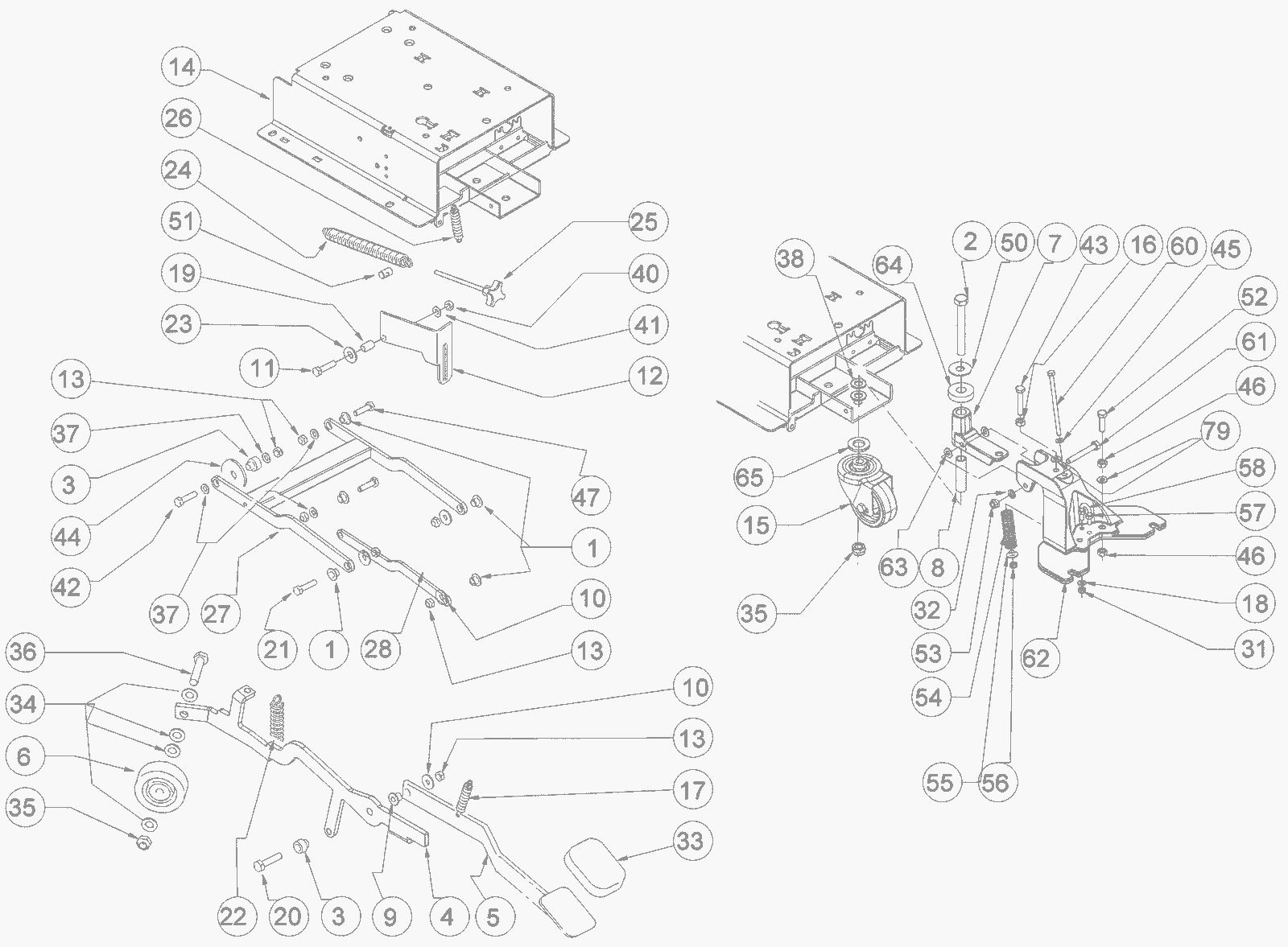

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-9724
|
Brush deck support bushing |
5 |
|
|
2 |
375-9687
|
Screw M12 x 110 |
1 |
|
|
3 |
375-9688
|
Bushing |
2 |
|
|
5 |
375-9690
|
Brush head lifting pedal |
1 |
|
|
6 |
375-9691
|
Brush wheel |
1 |
|
|
8 |
375-9693
|
Pin |
1 |
|
|
9 |
375-9694
|
Bushing |
1 |
|
|
11 |
203-5428
|
Screw M6 |
1 |
|
|
16 |
999-1651
|
Nut M8-1 hex stainless steel |
1 |
|
|
19 |
375-9701
|
Bushing |
1 |
|
|
21 |
375-9703
|
Screw M8 x 25 inox |
3 |
|
|
22 |
375-9704
|
Spring |
1 |
|
|
23 |
375-9658
|
Washer nylon |
1 |
|
|
24 |
375-9705
|
Spring |
1 |
|
|
25 |
375-9706
|
Handwheel |
1 |
|
|
26 |
375-9707
|
Spring |
1 |
|
|
31 |
375-9499
|
Nut M6 inox |
2 |
|
|
32 |
189-0897
|
Washer D8 |
1 |
|
|
33 |
375-9710
|
Cover |
1 |
|
|
36 |
375-9713
|
Screw M12 x 60 |
1 |
|
|
38 |
375-9714
|
Washer D12 x 24 inox |
2 |
|
|
41 |
203-1286
|
Washer D6 |
1 |
|
|
42 |
189-1344
|
Screw M8 |
1 |
|
|
43 |
375-9716
|
Screw M8 x 45 |
1 |
|
|
45 |
203-1286
|
Washer D6 |
1 |
|
|
50 |
375-9731
|
Washer |
1 |
|
|
54 |
375-9723
|
Spring |
1 |
|
|
55a |
189-1391
|
Washer D6 |
1 |
|
|
55b |
375-9724
|
Brush deck support bushing |
1 |
|
|
60 |
375-9727
|
Screw M6 x 110 |
1 |
|
|
61 |
375-9728
|
Screw M8 x 60 |
1 |
|
|
62 |
375-9729
|
Squeegee support |
1 |
|
|
64 |
375-9730
|
Washer M15 x 40 |
1 |
|
|
65 |
375-9731
|
Washer |
1 |
|
|
