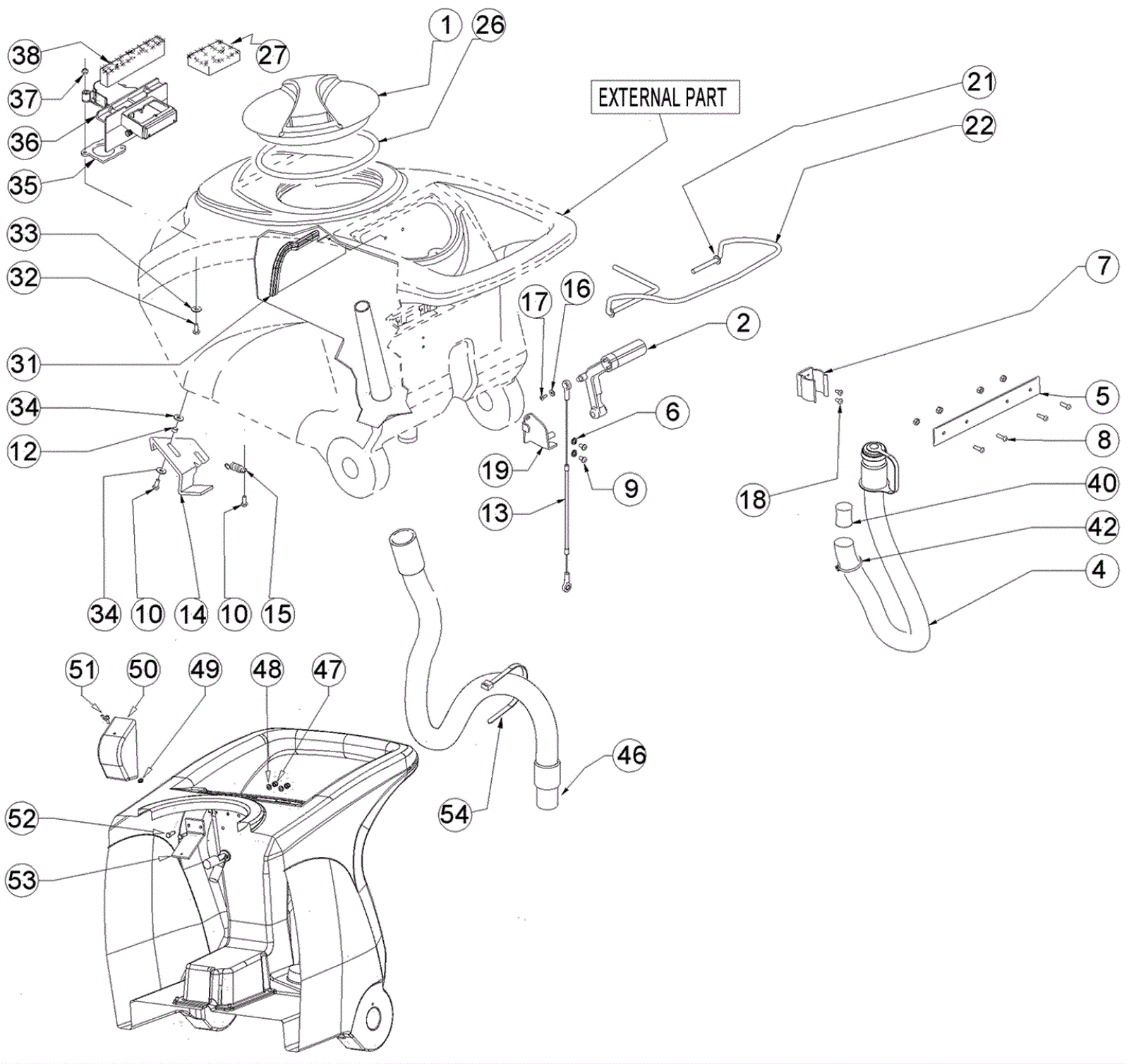

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-9642
|
Tank cap |
1 |
|
|
2 |
375-9643
|
Squeegee lift lever |
1 |
|
|
4 |
375-1707
|
Drain hose |
1 |
|
|
5 |
375-9644
|
Plate |
1 |
|
|
6 |
375-9480
|
Washer D. 5 inox |
2 |
|
|
7 |
375-9645
|
Recovery hose clip |
1 |
|
|
8 |
375-9483
|
Screw M5 x 16 inox |
4 |
|
|
9 |
999-1801
|
Screw M6 X 12mm hex head flange |
2 |
|
|
10 |
999-1600
|
Screw M6 x 16 pan head zinc |
3 |
|
|
12 |
375-9646
|
Spacer |
1 |
|
|
13 |
375-9647
|
Squeegee lift cable |
1 |
|
|
14 |
375-9648
|
Handle |
1 |
|
|
15 |
375-9649
|
Spring |
1 |
|
|
16 |
375-9577
|
Washer 4-16 inox |
1 |
|
|
17 |
375-9650
|
Screw M4 x 12 zinc |
1 |
|
|
18 |
375-9516
|
Screw M4 x 10 inox |
2 |
|
|
19 |
375-9651
|
Squeegee lifting bracket |
1 |
|
|
21 |
189-0897
|
Washer D8 |
2 |
|
|
22 |
375-9653
|
Handle activation lever |
1 |
|
|
26 |
375-9654
|
Recovery tank cover seal |
1 |
|
|
27 |
375-9655
|
Vacuum filter |
1 |
|
|
31 |
375-9656
|
Plate |
1 |
|
|
32 |
375-9657
|
Screw M4 x 25 |
2 |
|
|
33 |
203-0235
|
Washer |
2 |
|
|
34 |
375-9658
|
Washer nylon |
4 |
|
|
35 |
375-9659
|
Gasket |
1 |
|
|
36 |
375-9660
|
Box |
1 |
|
|
37 |
375-9661
|
Nut M4 inox |
2 |
|
|
38 |
375-9662
|
Gasket |
1 |
|
|
40 |
375-9663
|
Gasket |
2 |
|
|
42 |
375-9664
|
Clamp |
1 |
|
|
46 |
375-6019
|
Hose |
1 |
|
|
47 |
375-9665
|
Nut M5 inox |
2 |
|
|
49 |
375-9667
|
Washer |
1 |
|
|
50 |
375-9668
|
Protection |
1 |
|
|
51 |
375-9669
|
Screw M4 x 10 |
1 |
|
|
52 |
375-9481
|
Screw M5 x 20 |
2 |
|
|
53 |
375-9670
|
Bracket |
1 |
|
|
54 |
375-9671
|
Clamp |
1 |
|
|
