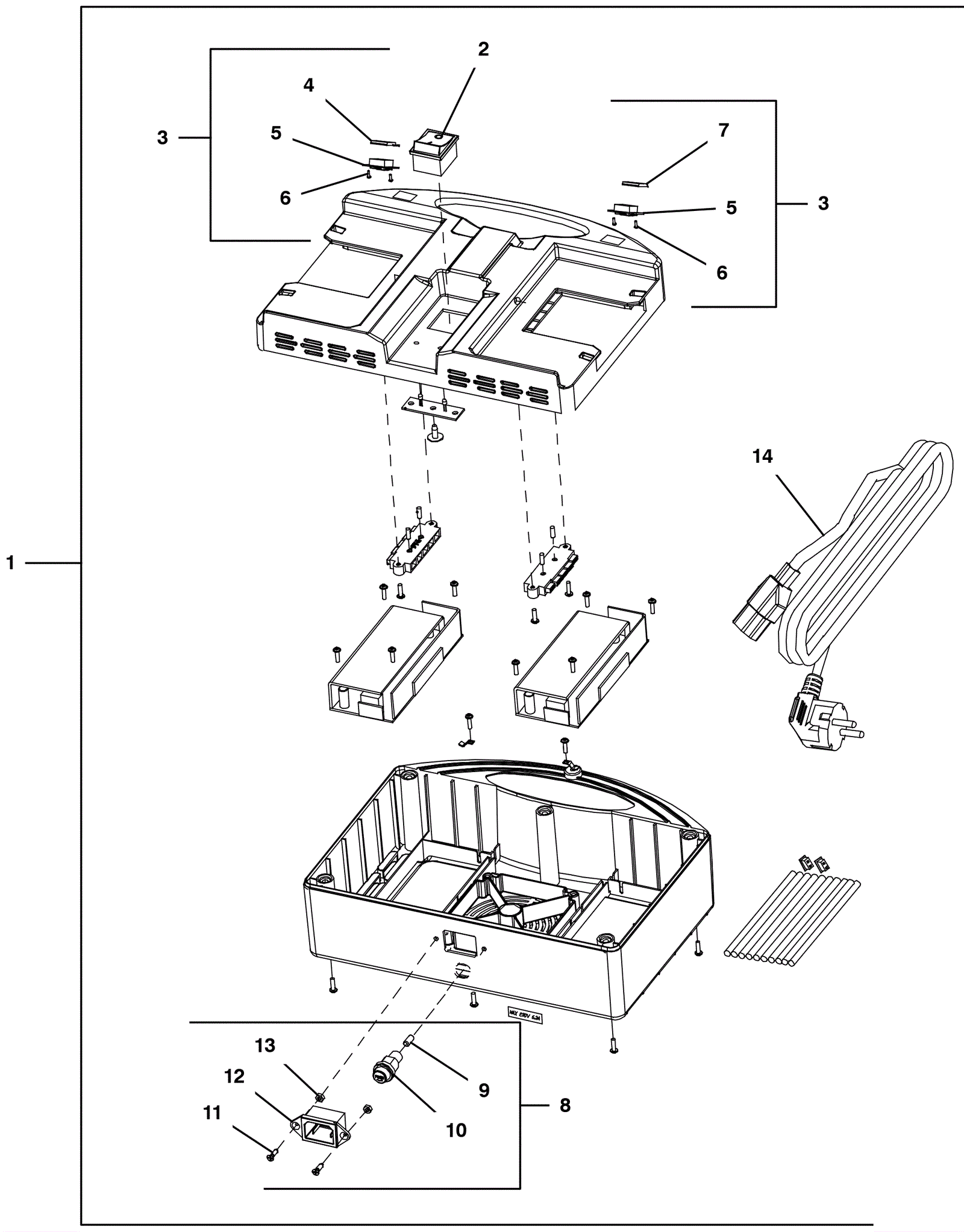

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-4164
|
Battery charger |
1 |
(includes 2-14a) |
|
2 |
375-4165
|
Charger switch |
1 |
|
|
3 |
375-4166
|
Voltage light |
1 |
(includes 4-7) |
|
4 |
N/A
|
Not available |
1 |
(right hand transparent cover voltage display) (part available in kit) |
|
5 |
N/A
|
Not available |
2 |
(voltage display with percentage) (part available in kit) |
|
6 |
N/A
|
Not available |
4 |
(screw M2 x 5 cross head self tapping) (part available in kit) |
|
7 |
N/A
|
Not available |
1 |
(left hand transparent cover voltage display) (part available in kit) |
|
8 |
375-4167
|
Charger receptacle kit |
1 |
(includes 9-13) |
|
9 |
N/A
|
Not available |
1 |
(6.3A fuse) (part available in kit) |
|
10 |
N/A
|
Not available |
1 |
(6.3A base fuse) (part available in kit) |
|
11 |
N/A
|
Not available |
2 |
(screw M3 x 15 countersunk) (part available in kit) |
|
12 |
N/A
|
Not available |
1 |
(inlet and two screw holes) (part available in kit) |
|
13 |
N/A
|
Not available |
2 |
(nut M3 nylon) (part available in kit) |
|
14a |
375-4168
|
Power cord |
1 |
(standard) |
|
14b |
475-2078
|
CORD, POWER [UL 3 PIN, 11 METERS LG] |
1 |
(optional) |
|
