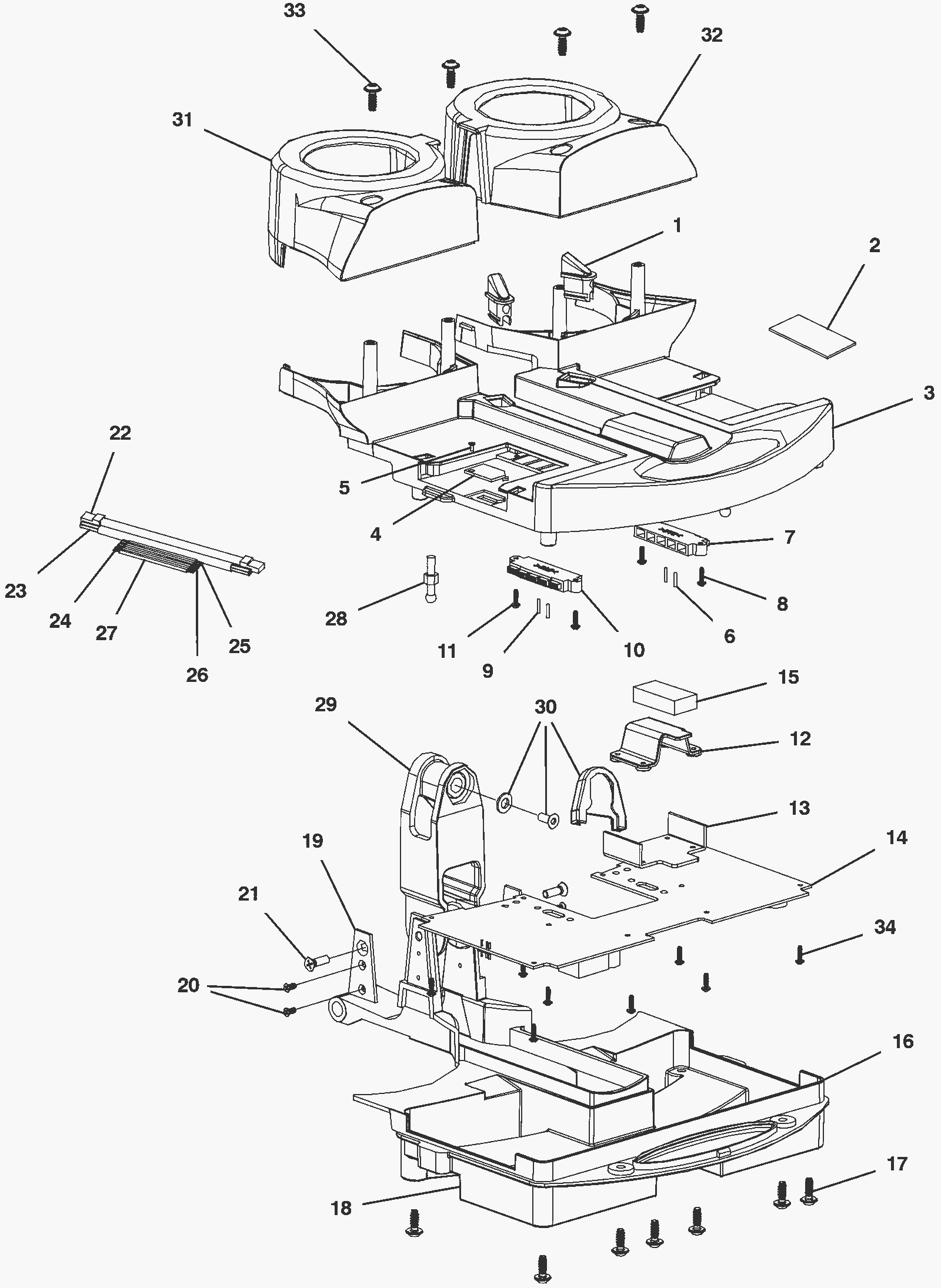

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-9457
|
Main lever cover |
1 |
(includes 1b-5) |
|
1b |
N/A
|
Not available |
2 |
(pcb machine seal) (part available in kit) |
|
2 |
N/A
|
Not available |
1 |
(strong magnet decal) (part available in kit) |
|
3 |
375-9458
|
Main cover (white) |
1 |
|
|
4 |
375-9459
|
USB slot cover |
1 |
|
|
5 |
N/A
|
Not available |
1 |
(screw M1.7 x 6 counter sunk) (part available in kit) |
|
6a |
375-9030
|
Right hand battery connector |
1 |
(includes 6a-8) |
|
6b |
N/A
|
Not available |
2 |
(alignment pin longer version) (part available in kit) |
|
7 |
N/A
|
Not available |
1 |
(right hand battery connector male gray) (part available in kit) |
|
8 |
N/A
|
Not available |
2 |
(screw 25 x 10) (part available in kit) |
|
9a |
375-9031
|
Left hand battery connector |
1 |
(includes 9b-11) |
|
9b |
N/A
|
Not available |
2 |
(alignment pin longer version) (part available in kit) |
|
10 |
N/A
|
Not available |
1 |
(left hand battery connector male blue) (part available in kit) |
|
11 |
N/A
|
Not available |
2 |
(screw 25 x 10) (part available in kit) |
|
12a |
375-9460
|
Battery control circuitboard |
1 |
(includes 12b-15) |
|
12b |
N/A
|
Not available |
1 |
(magnet top unit holder gray) (part available in kit) |
|
13 |
N/A
|
Not available |
1 |
(3mm steel cover isolation magnet) (part available in kit) |
|
14 |
375-9460
|
Battery control circuitboard |
1 |
|
|
15 |
N/A
|
Not available |
1 |
(magnet top unit 40 x 20 x 10mm) (part available in kit) |
|
16b |
475-2380
|
HOUSING, LEVER, MAIN [IMOP] |
1 |
|
|
17 |
N/A
|
Not available |
8 |
(screw 50 X 14) (part available in kit) |
|
18 |
N/A
|
Not available |
1 |
(bottom name plate) (part available in kit) |
|
19a |
375-9034
|
Hinge plate assembly |
1 |
(includes 19b-21) |
|
19b |
475-2380
|
HOUSING, LEVER, MAIN [IMOP] |
2 |
|
|
20 |
475-1615
|
SCREW, FLT, SOC, M3 X 8 SS NL [10X,IMOP] |
4 |
|
|
21 |
475-1557
|
SCREW, FLT, SOC, M5 X 16 NL [10X, IMOP] |
2 |
|
|
22a |
375-9037
|
Main lever assembly |
1 |
(includes 22b-27) |
|
22b |
375-9461
|
100cm cable |
1 |
|
|
23 |
N/A
|
Not available |
1 |
(power cable 3 wires) (part available in kit) |
|
24 |
N/A
|
Not available |
2 |
(wires for brush unit red) (part available in kit) |
|
25 |
N/A
|
Not available |
2 |
(male connector and wires) (part available in kit) |
|
26 |
N/A
|
Not available |
2 |
(male connector and connector wires) (part available in kit) |
|
27 |
N/A
|
Not available |
2 |
(wires for brush unit black) (part available in kit) |
|
28 |
375-9036
|
Pin |
2 |
|
|
29 |
375-9462
|
Hinge kit |
1 |
(includes 30) |
|
30 |
375-9035
|
Hardware kit |
1 |
|
|
31 |
375-9463
|
Left hand motor cover |
1 |
(includes 2 of 33) |
|
32 |
375-9464
|
Right hand motor cover |
1 |
(includes 2 of 33) |
|
