| # | Part | Description |
Req | Notes | Availability |
|---|

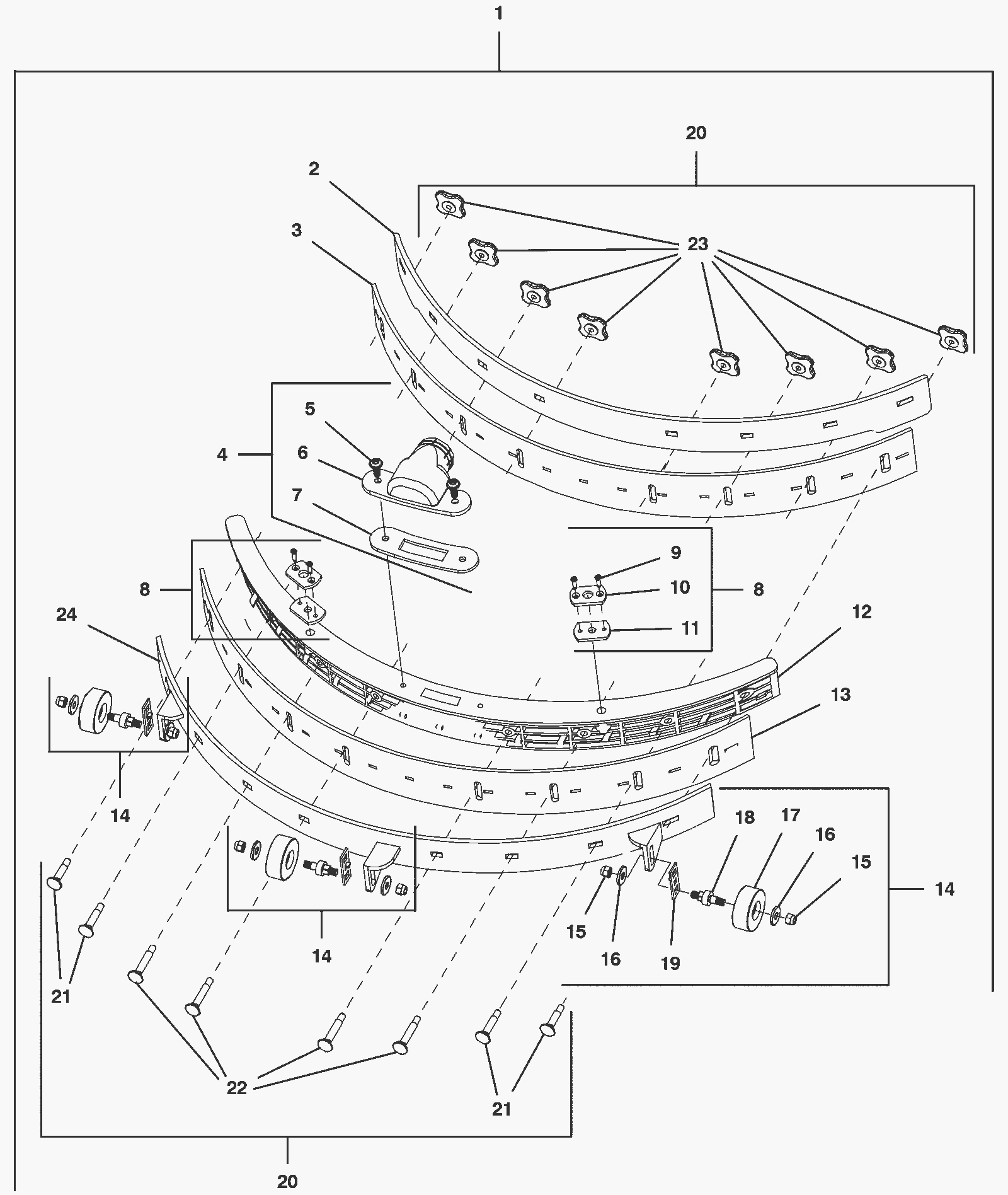

1 |
375-9450
|
Squeegeee assembly |
1 |
(includes 2-3a, 4-11a, 12-13a, 14-24) |
|
2 |
375-9451
|
Rear squeegee plate |
1 |
|
|
3a |
375-9452
|
Front squeegee blade (linatex) |
1 |
(standard) |
|
3b |
375-9453
|
Front squeegee blade (urethane) |
1 |
(optional) |
|
4 |
375-4152
|
Squeegee connector hose |
1 |
(includes 5-7) |
|
5 |
375-9454
|
Screw 50 x 14 hex head |
2 |
|
|
6 |
N/A
|
Not available |
1 |
(squeegee hose connector yellow) (part available in kit) |
|
7 |
475-1484
|
GASKET, HOSE, SQUEEGEE [IMOP] |
1 |
|
|
8 |
375-4153
|
Squeegee retaining kit |
1 |
(includes 9-11) |
|
9 |
N/A
|
Not available |
4 |
(screw M3 x 10 countersunk) (part available in kit) |
|
10 |
475-1631
|
PLATE, MTG, SQGE [SS, IMOP] |
1 |
|
|
11a |
475-1450
|
WASHER, RBR, SQGE [BLACK, IMOP] |
2 |
(qty 1) |
|
11b |
475-2294
|
WASHER, RBR, SQGE [BLACK, IMOP, QTY 100] |
1 |
(qty 100) |
|
12 |
375-9402
|
Top plate (XXL I-mop) |
1 |
|
|
13a |
375-9403
|
Squeegee blade rear |
1 |
(standard) |
|
13b |
375-9455
|
Rear squeegee blade (urethane) |
1 |
(optional) |
|
14 |
475-2000
|
Squeegee caster assembly |
1 |
(includes 15-19) (includes 3 caster assemblies and 8) |
|
15 |
N/A
|
Not available |
6 |
(nut M5 nylon) (part available in kit) |
|
16 |
N/A
|
Not available |
6 |
(washer M5 5 x 15 x 1mm) (part available in kit) |
|
17 |
N/A
|
Not available |
3 |
(squeegee castor gray) (part available in kit) |
|
18 |
N/A
|
Not available |
3 |
(shaft squeegee castor) (part available in kit) |
|
19 |
N/A
|
Not available |
3 |
(height adjustment plate) (part available in kit) |
|
20 |
375-4155
|
Squeegee retainer knob kit |
1 |
(includes 21-23) |
|
21 |
N/A
|
Not available |
4 |
(Screw M5 thread length 30) (part available in kit) |
|
22 |
N/A
|
Not available |
4 |
(Screw M5 thread length 35) (part available in kit) |
|
23 |
N/A
|
Not available |
8 |
(plastic nut squeegee) (part available in kit) |
|
24 |
375-9404
|
Rear squeegee plate |
1 |
|
|
