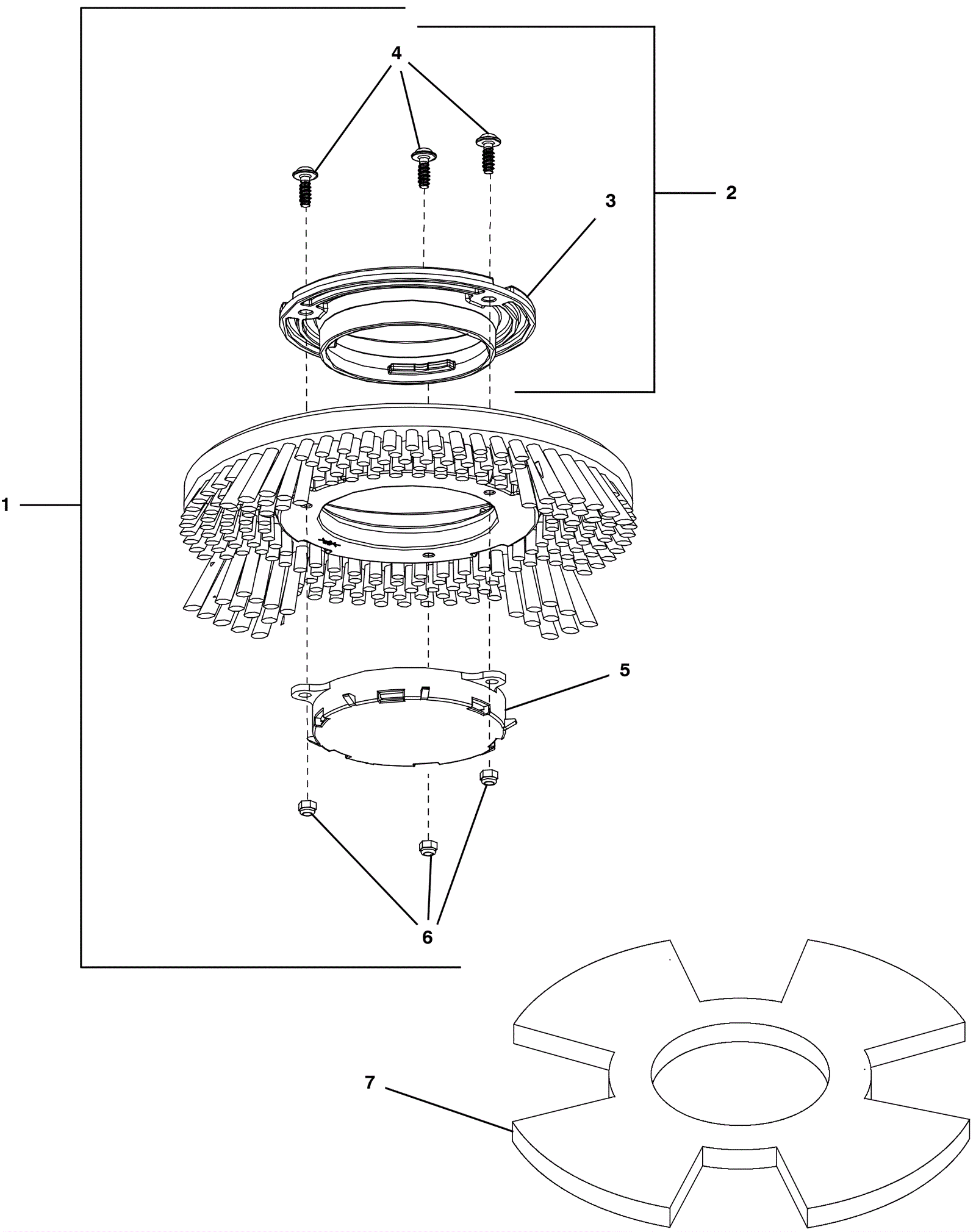

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-9438
|
Pad driver assembly (blue) |
2 |
(includes 2-6) |
|
2a |
375-4127
|
Brush driver kit (blue) |
2 |
(includes 3a and 4) (standard) |
|
2b |
375-4128
|
Brush driver kit (red) |
2 |
(includes 3b and 4) (optional) |
|
2c |
375-4129
|
Brush driver kit (yellow) |
2 |
(includes 3c and 4) (optional) |
|
2d |
375-4130
|
Brush driver kit (green) |
2 |
(includes 3d and 4) (optional) |
|
3a |
N/A
|
Not available |
2 |
(standard brush locker blue) (part available in kit) (standard) |
|
3b |
N/A
|
Not available |
2 |
(brush locker red) (part available in kit) (optional) |
|
3c |
N/A
|
Not available |
2 |
(brush locker yellow) (part available in kit) (optional) |
|
3d |
N/A
|
Not available |
2 |
(brush locker green) (part available in kit) (optional) |
|
4 |
N/A
|
Not available |
6 |
(screw 50 x 14) (part available in kit) |
|
5 |
N/A
|
Not available |
2 |
(imop pad holder assembly) (part available in kit) |
|
6 |
N/A
|
Not available |
6 |
(nut M4 nylon) (part available in kit) |
|
7a |
375-9439
|
Cleaning pad (red) (pkg of 10) |
1 |
|
|
7b |
375-9440
|
Buffing pad (white) (box of 10) |
1 |
|
|
7c |
375-9441
|
Scrubbing pad (green) (box of 10) |
1 |
|
|
7d |
375-9442
|
Scrubbing pad (blue) (pkg fo 10) |
1 |
|
|
7e |
375-9443
|
Light stripping pad (black) (pkg of 10) |
1 |
|
|
7f |
375-9444
|
Diamond polishing pad (green) |
2 |
|
|
7g |
375-9445
|
Diamond polishing pad (yellow) |
2 |
|
|
7h |
375-9446
|
Diamond polishing pad (white) |
2 |
|
|
7i |
375-9447
|
Diamond polishing pad (red) |
2 |
|
|
7j |
375-9448
|
Diamond polishing pad (orange) |
2 |
|
|
7k |
375-9449
|
Diamond polishing pad (blue) |
2 |
|
|
