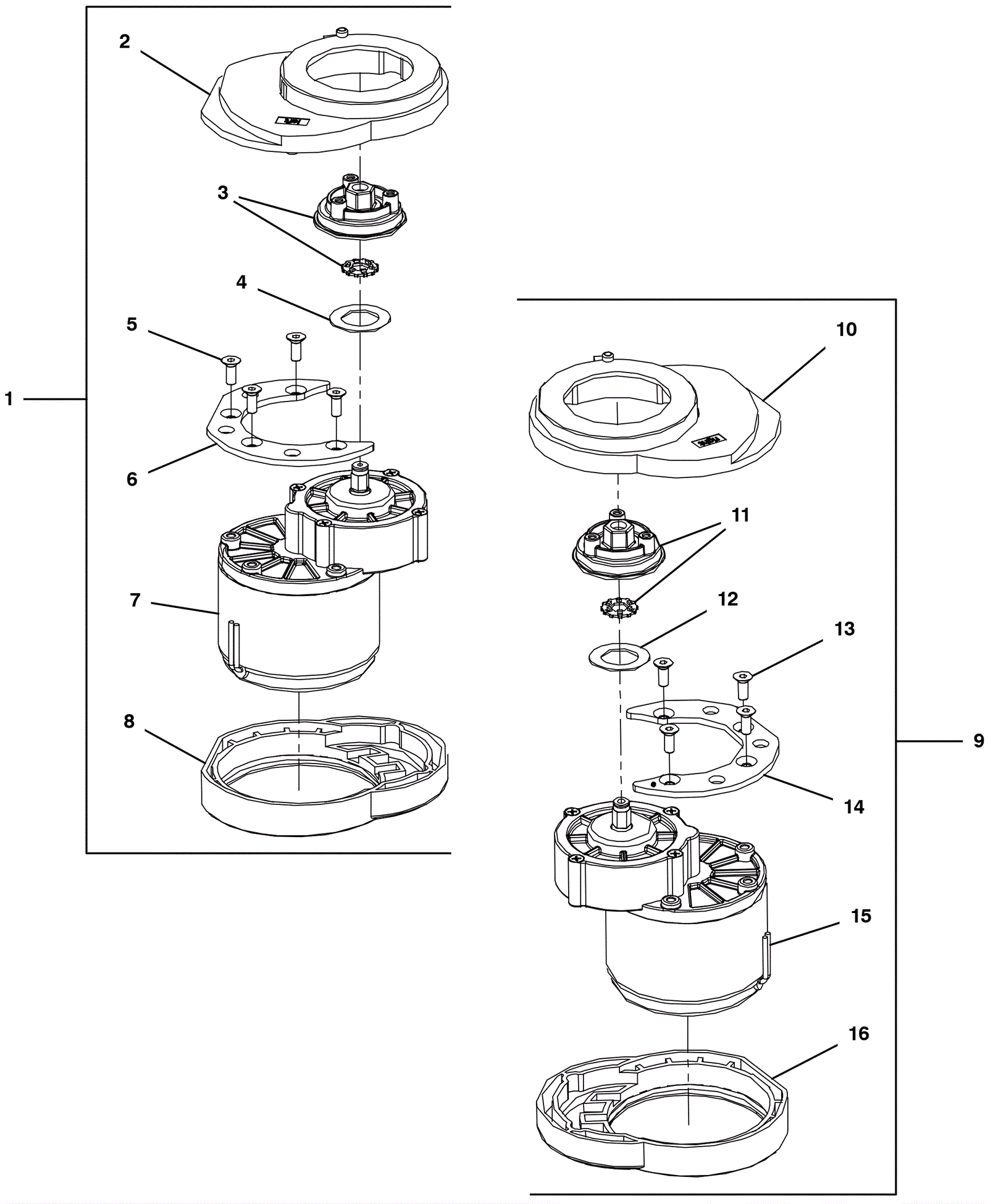

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-9425
|
Left hand brush motor |
1 |
(includes 2-8) |
|
2 |
N/A
|
Not available |
1 |
(left hand rubber brush motor support) (part available in kit) |
|
3 |
375-4924
|
Driving wheel w/metal insert |
1 |
|
|
4 |
N/A
|
Not available |
1 |
(felt brush motor) (part available in kit) |
|
5 |
N/A
|
Not available |
4 |
(screw M6 x 16 nylock) (part available in kit) |
|
6 |
N/A
|
Not available |
1 |
(left hand brush motor construction ring) (part available in kit) |
|
7 |
N/A
|
Not available |
1 |
(left hand brush motor helical gears) (part available in kit) |
|
8 |
N/A
|
Not available |
1 |
(left hand conductive rubber brush motor fixation) (part available in kit) |
|
9 |
375-9424
|
Right hand brush motor |
1 |
(includes 10-16) |
|
10 |
N/A
|
Not available |
1 |
(right hand rubber brush motor support) (part available in kit) |
|
11 |
375-4924
|
Driving wheel w/metal insert |
1 |
|
|
12 |
N/A
|
Not available |
1 |
(felt brush motor) (part available in kit) |
|
13 |
N/A
|
Not available |
4 |
(screw M6 x 16 nylock) (part available in kit) |
|
14 |
N/A
|
Not available |
1 |
(right hand brush motor construction ring) (part available in kit) |
|
15 |
N/A
|
Not available |
1 |
(right hand brush motor helical gears) (part available in kit) |
|
16 |
N/A
|
Not available |
1 |
(right hand conductive rubber brush motor fixation) (part available in kit) |
|
