| # | Part | Description |
Req | Notes | Availability |
|---|

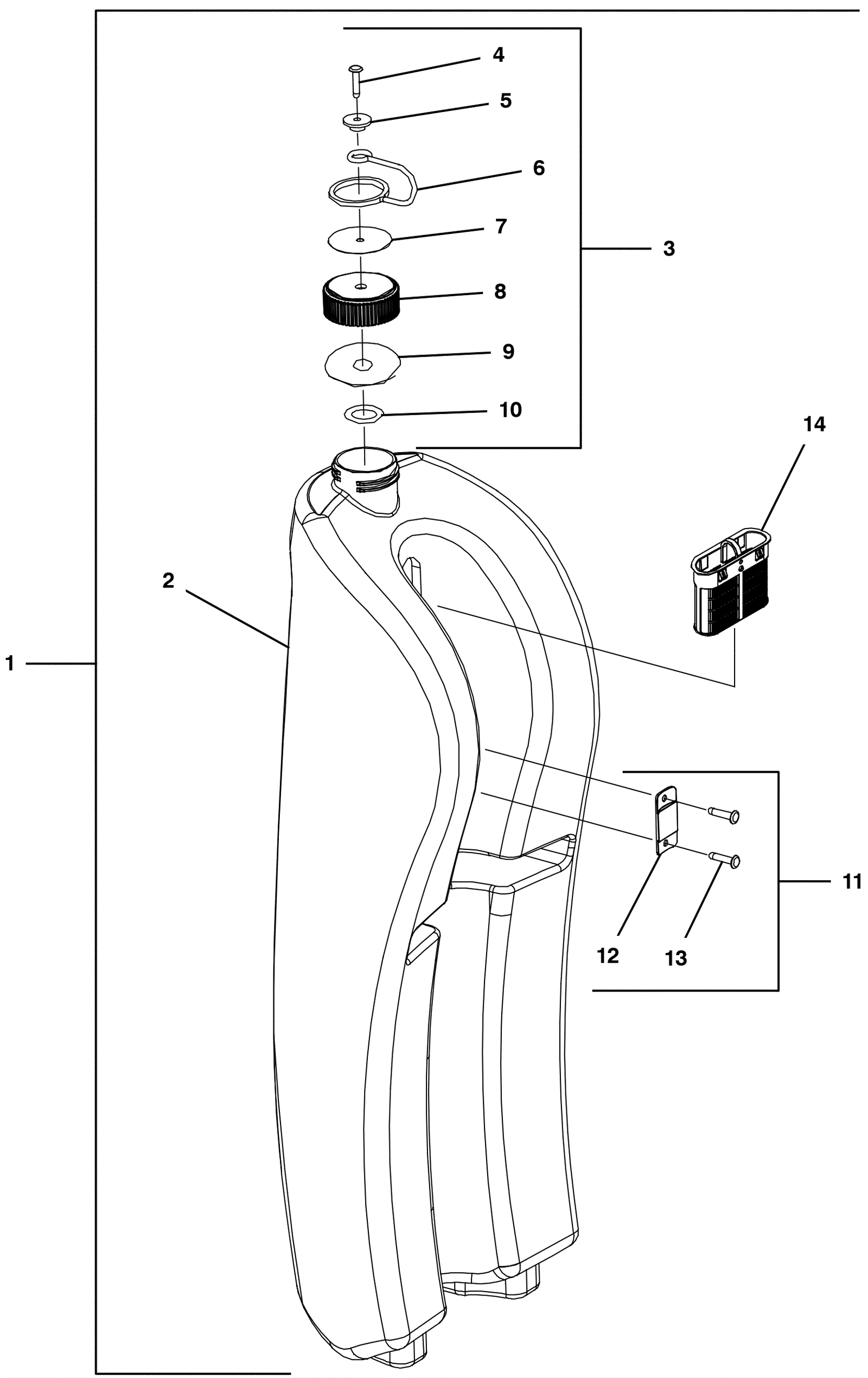

1 |
375-9423
|
Tank assembly |
1 |
(includes 2-14) |
|
2 |
N/A
|
Not available |
1 |
(dirty water compartment) (part available in kit) |
|
3 |
375-4105
|
Recovery tank cap kit |
1 |
(includes 4-10) |
|
4 |
N/A
|
Not available |
1 |
(blind rivet nail 4 x 15) (part available in kit) |
|
5 |
N/A
|
Not available |
1 |
(sleeve cap holder) (part available in kit) |
|
6 |
N/A
|
Not available |
1 |
(cap holder) (part available in kit) |
|
7 |
N/A
|
Not available |
1 |
(warning plate) (part available in kit) |
|
8 |
N/A
|
Not available |
1 |
(cap without hole) (part available in kit) |
|
9 |
N/A
|
Not available |
1 |
(sealing gasket cap dirty tank) (part available in kit) |
|
10 |
N/A
|
Not available |
1 |
(plastic washer 9 x 4 x 1mm) (part available in kit) |
|
11 |
375-4106
|
Tank plate |
1 |
(includes 12-13) |
|
12 |
N/A
|
Not available |
1 |
(fixation plate dirt compartment) (part available in kit) |
|
13 |
N/A
|
Not available |
2 |
(blind rivet nail 4 x 15) (part available in kit) |
|
14 |
375-4092
|
Filter assembly |
1 |
|
|
