| # | Part | Description |
Req | Notes | Availability |
|---|

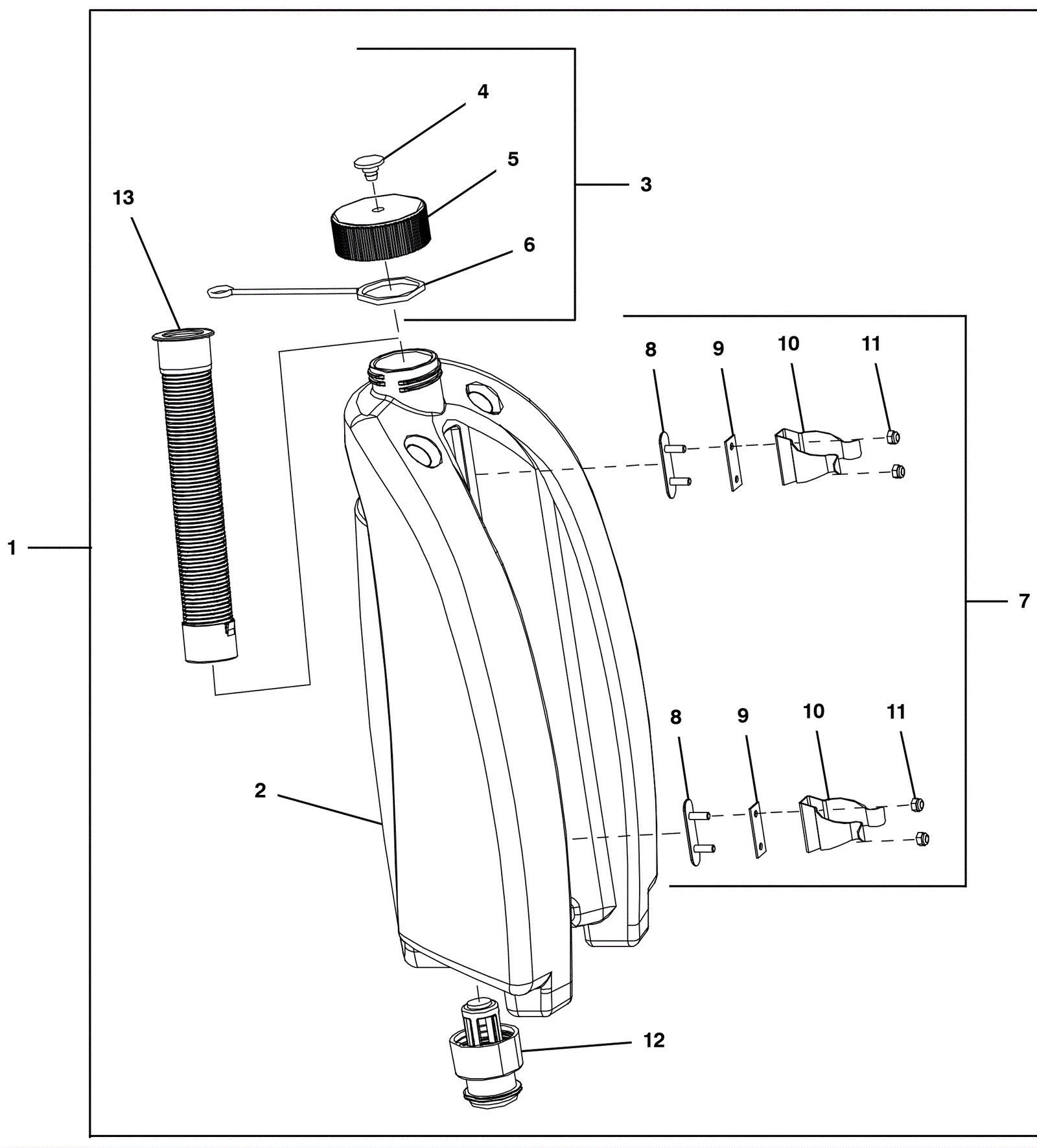

1a |
375-9419
|
Solution tank assembly (blue cap) |
1 |
(includes 2-13) |
|
1b |
375-9420
|
Solution tank assembly (red cap) |
1 |
(includes 2-13) |
|
1c |
375-9421
|
Solution tank assembly (yellow cap) |
1 |
(includes 2-13) |
|
1d |
375-9422
|
Solution tank assembly (green cap) |
1 |
(includes 2-13) |
|
2 |
N/A
|
Not available |
1 |
(clean water compartment) (part available in kit) |
|
3a |
375-4122
|
Solution tank cap (blue) |
1 |
(includes 4-6) |
|
3b |
375-4123
|
Solution tank cap (red) |
1 |
(includes 4-6) |
|
3c |
375-4124
|
Solution tank cap (yellow) |
1 |
(includes 4-6) |
|
3d |
375-4125
|
Solution tank cap (green) |
1 |
(includes 4-6) |
|
4 |
N/A
|
Not available |
1 |
(sleeve cap holder clean tank) (part available in kit) |
|
5 |
N/A
|
Not available |
1 |
(cap with hole) (part available in kit) |
|
6 |
N/A
|
Not available |
1 |
(cap holder) (part available in kit) |
|
7 |
375-1628
|
Tank retaining clip |
1 |
(includes 8-11) |
|
8 |
N/A
|
Not available |
2 |
(holder plate clip clean tank) (part available in kit) |
|
9 |
N/A
|
Not available |
2 |
(rubber cushion for metal clip) (part available in kit) |
|
10 |
N/A
|
Not available |
2 |
(tank retaining clip) (part available in kit) |
|
11 |
N/A
|
Not available |
4 |
(nut M4 nylon) (part available in kit) |
|
12 |
375-4089
|
Water coupling |
1 |
|
|
13 |
N/A
|
Not available |
1 |
(filling hose assembly) (part available in kit) |
|
