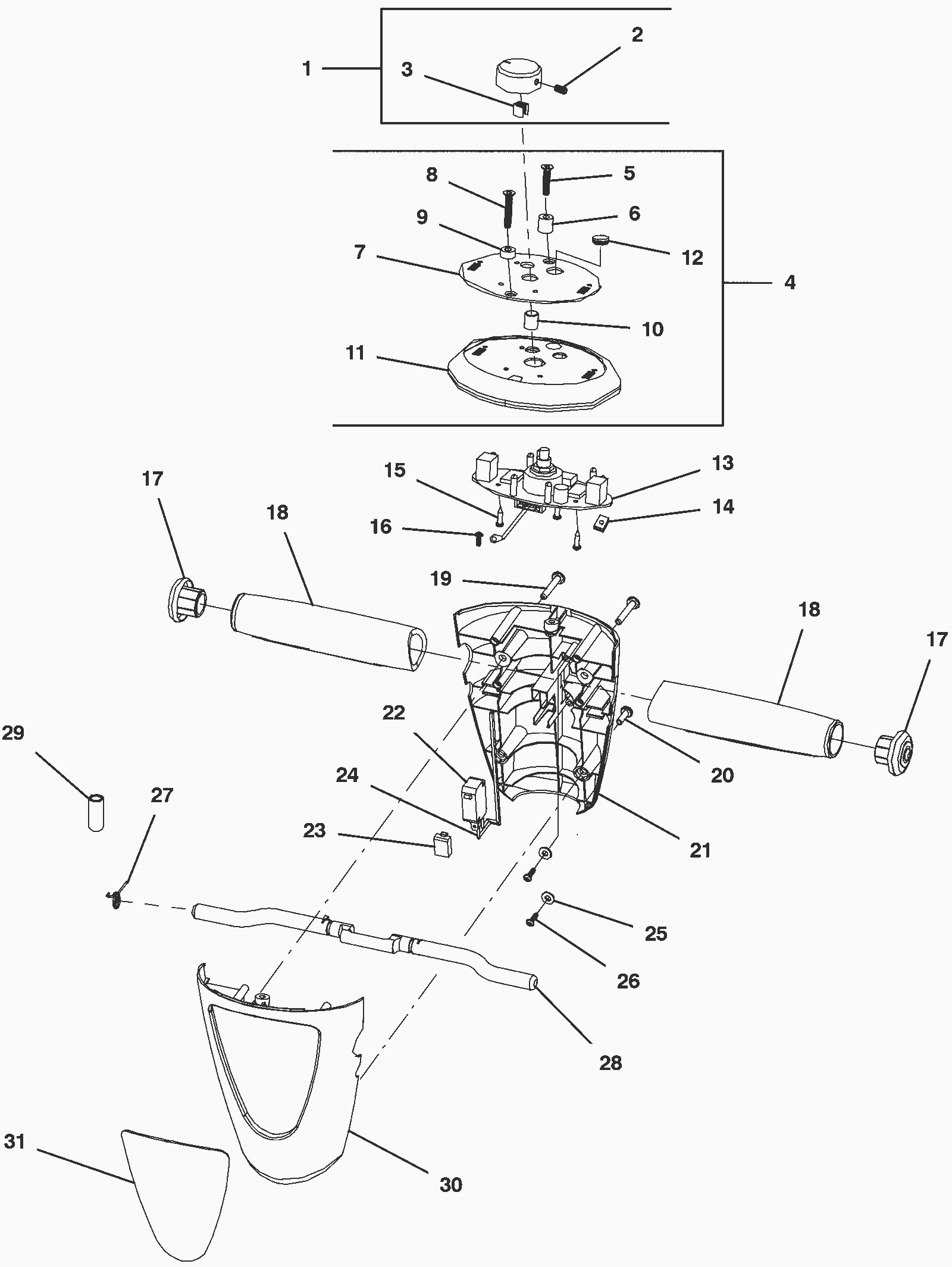

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-4102
|
Top housing knob kit |
1 |
(includes 2-3) |
|
2 |
N/A
|
Not available |
1 |
(screw M4 x 8 hex head) (part available in kit) |
|
3 |
N/A
|
Not available |
1 |
(fixation insert turning button) (part available in kit) |
|
4a |
375-9410
|
Top control housing kit |
1 |
(includes 4b-12) |
|
4b |
375-9411
|
Control housing hardware kit |
1 |
(includes 5-11) |
|
5 |
N/A
|
Not available |
1 |
(screw M4 x 25 countersunk) (part available in kit) |
|
6 |
N/A
|
Not available |
1 |
(support plastic bushing) (part available in kit) |
|
7 |
375-9412
|
Dash instruction decal kit |
1 |
|
|
8 |
N/A
|
Not available |
1 |
(screw M4 x 20 countersunk) (part available in kit) |
|
9 |
N/A
|
Not available |
1 |
(support plastic bushing) (part available in kit) |
|
10 |
N/A
|
Not available |
1 |
(water save button) (part available in kit) |
|
11 |
475-1609
|
Top control housing with bumper (XL & XXL IMOP) |
1 |
|
|
12 |
N/A
|
Not available |
1 |
(rubber block water save adjustment hole) (part available in kit) |
|
13a |
375-9413
|
Circuitboard kit with hardware |
1 |
(includes 13b-16) |
|
13b |
375-9414
|
Circuitboard control |
1 |
|
|
14 |
N/A
|
Not available |
1 |
(switch wire clamp black) (part available in kit) |
|
15 |
N/A
|
Not available |
3 |
(screw M3 x 12 crosshead selftapping) (part available in kit) |
|
16 |
N/A
|
Not available |
1 |
(screw 4 x 10) (part available in kit) |
|
17a |
375-9415
|
Handle grip (pkg of 2) |
1 |
(includes 17b-18) |
|
17b |
N/A
|
Not available |
2 |
(end cap grip blue) (part available in kit) |
|
18 |
375-9416
|
Handle grip (pkg of 2) |
1 |
|
|
19a |
375-6013
|
Power switch kit |
1 |
(includes 19b-26) |
|
19b |
N/A
|
Not available |
2 |
(screw M4 x 35 crosshead) (part available in kit) |
|
20 |
N/A
|
Not available |
2 |
(screw M4 x 12 crosshead) (part available in kit) |
|
21 |
475-1736
|
HOUSING, CONTROL, REAR [WHITE,IMOP] |
1 |
|
|
22 |
N/A
|
Not available |
1 |
(power switch control unit) (part available in kit) |
|
23 |
N/A
|
Not available |
1 |
(rubber block 15 x 10 x 5mm) (part available in kit) |
|
24 |
N/A
|
Not available |
1 |
(on/off switch wires) (part available in kit) |
|
25 |
N/A
|
Not available |
2 |
(plastic washer 9 x 4 x 1mm) (part available in kit) |
|
26 |
N/A
|
Not available |
2 |
(screw 25 x 10) (part available in kit) |
|
27a |
375-6012
|
Trigger assembly |
1 |
(includes 27-28) |
|
27 |
N/A
|
Not available |
1 |
(spring switch lever) (part available in kit) |
|
28 |
475-1643
|
HANDLE, CONTROL [BLUE, IMOP] |
1 |
|
|
29 |
375-9417
|
Easy scrub magnetic ring |
1 |
|
|
30 |
475-1876
|
HOUSING, CONTROL, FRONT [WHITE, IMOP] |
1 |
|
|
31 |
375-9418
|
Handle decal plate |
1 |
|
|
