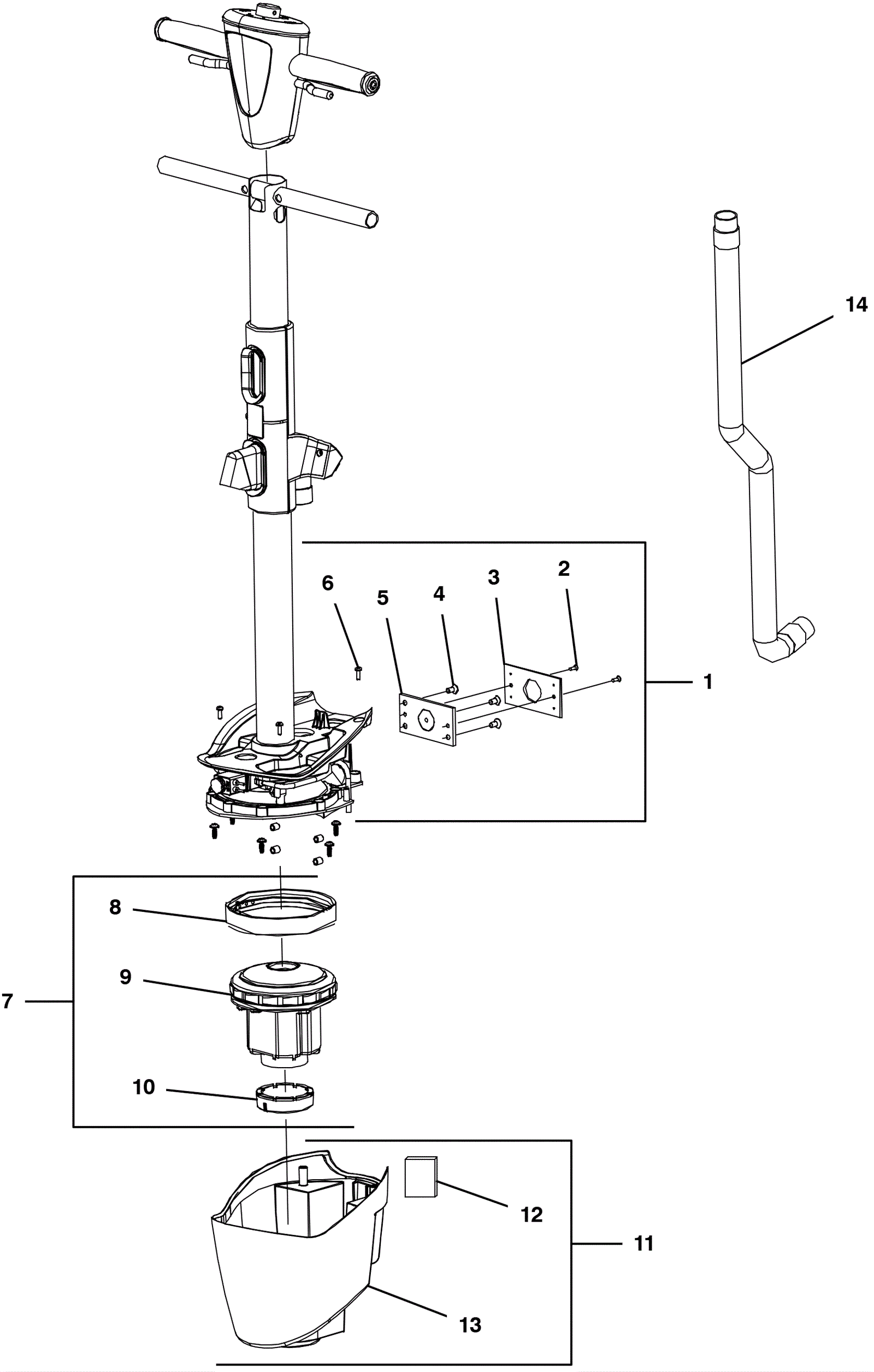

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-4097
|
Lever hinge kit |
1 |
(includes 2-6) |
|
2 |
N/A
|
Not available |
2 |
(screw N3.5 x 13 count sunk) (part available in kit) |
|
3 |
N/A
|
Not available |
1 |
(plastic plate for hinge welding assembly) (part available in kit) |
|
4 |
475-1586
|
SCREW, FLT, SOC, M6 X 12 NL [10X, IMOP] |
4 |
|
|
5 |
N/A
|
Not available |
1 |
(hinge welding assembly top unit) (part available in kit) |
|
6 |
N/A
|
Not available |
4 |
(screw M4 x 12) (part available in kit) |
|
7 |
375-4098
|
Vacuum fan |
1 |
(includes 8-10) |
|
8 |
N/A
|
Not available |
1 |
(domel vacuum cleaner motor) (part available in kit) |
|
9 |
N/A
|
Not available |
1 |
(vacuum motor sealing support) (part available in kit) |
|
10 |
N/A
|
Not available |
1 |
(vacuum motor sealing bottom) (part available in kit) |
|
11 |
375-4099
|
Fan cover kit |
1 |
(includes 12-13) |
|
12 |
N/A
|
Not available |
1 |
(magnet top unit) (part available in kit) |
|
13 |
N/A
|
Not available |
1 |
(motor unit cover) (part available in kit) |
|
14 |
375-4100
|
Hose assembly |
1 |
|
|
