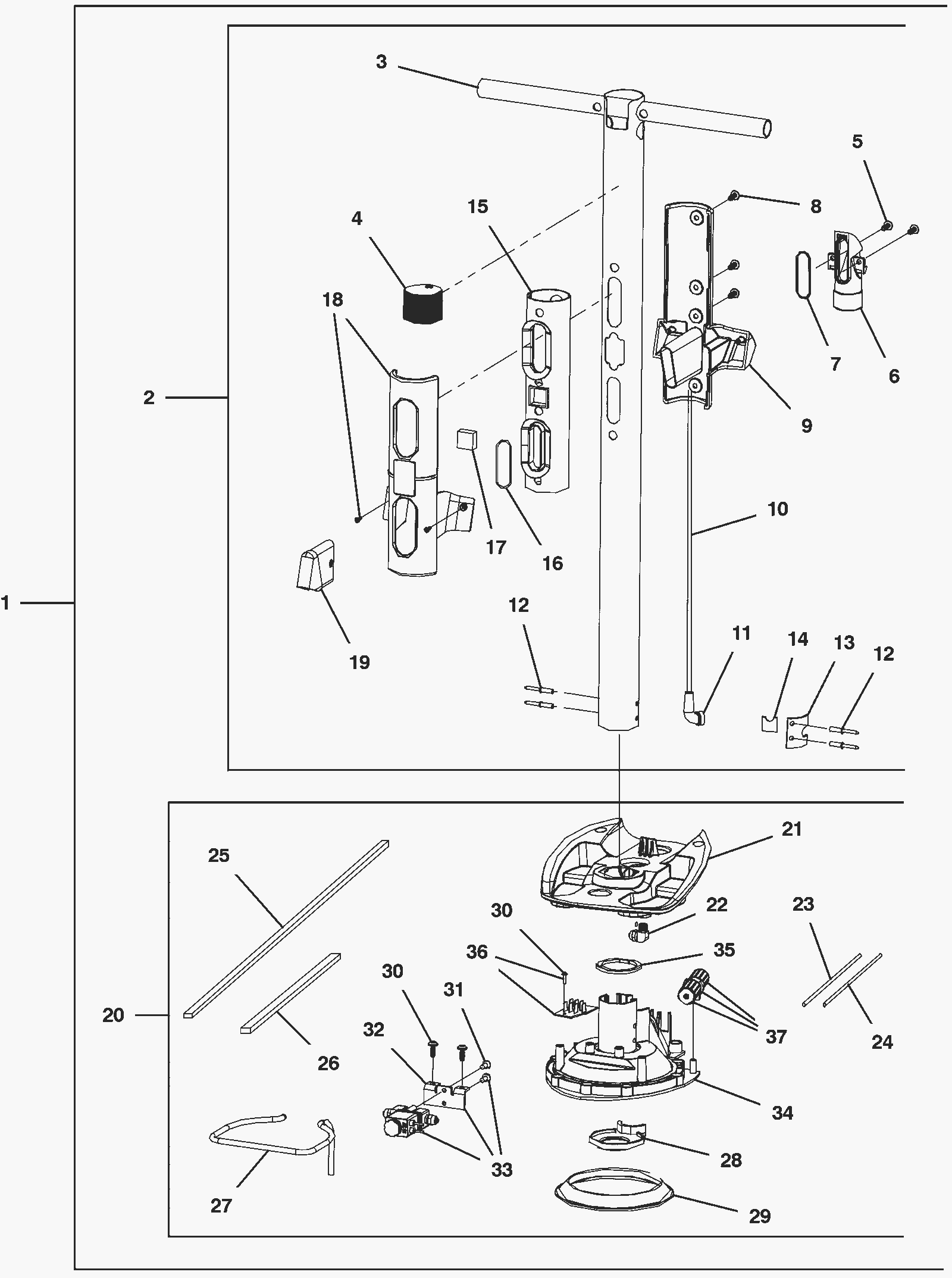

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-9405
|
Inlet tube assembly |
1 |
(includes 2-37) |
|
2a |
375-9406
|
Inlet tube kit |
1 |
(includes 2b-19) |
|
2b |
375-9407
|
Handle weldment assembly |
1 |
(includes 3-4) |
|
3 |
375-9408
|
Handle weldment tube |
1 |
|
|
4 |
N/A
|
Not available |
1 |
(end cap inlet tube) (part available in kit) |
|
5 |
N/A
|
Not available |
2 |
(screw 25 x 10) (part available in kit) |
|
6 |
475-1618
|
CONNECTOR, HOSE, SQUEEGEE [IMOP] |
1 |
|
|
7 |
N/A
|
Not available |
1 |
(hose connector gasket) (part available in kit) |
|
8a |
375-9012
|
Rear tank holder |
1 |
(includes 8b-9) |
|
8b |
N/A
|
Not available |
10 |
(screw 50 x 25) (part available in kit) |
|
9 |
N/A
|
Not available |
1 |
(rear tank holder) (part available in kit) |
|
10a |
375-9409
|
Cable tube |
1 |
(includes 10b-14) |
|
10b |
375-4091
|
Central connector cable |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(power cable guiding rubber) (part available in kit) |
|
12 |
N/A
|
Not available |
4 |
(rivet 5mm x 10mm) (part available in kit) |
|
13 |
N/A
|
Not available |
1 |
(sealing pressure plate) (part available in kit) |
|
14 |
N/A
|
Not available |
1 |
(sealing rubber sheet) (part available in kit) |
|
15a |
375-9013
|
Seal kit |
1 |
(includes 15b-17) |
|
15b |
475-1747
|
Recovery tank seal |
1 |
|
|
16 |
N/A
|
Not available |
1 |
(o-ring) (part available in kit) |
|
17 |
N/A
|
Not available |
1 |
(magnet top unit small 20 x 20 x 10mm) (part available in kit) |
|
18 |
375-9014
|
Front tank holder |
1 |
|
|
19 |
475-1714
|
DEFLECTOR, TANK, RECVY [IMOP] |
1 |
|
|
20 |
375-4093
|
Top motor kit |
1 |
(includes 21-32, 34-35) |
|
21 |
375-9015
|
Top motor housing |
1 |
|
|
22 |
375-9016
|
Connector |
1 |
|
|
23a |
375-9017
|
Terminal |
1 |
(includes 23b-24) |
|
23b |
N/A
|
Not available |
1 |
(terminal and wire red) (part available in kit) |
|
24 |
N/A
|
Not available |
1 |
(terminal and wire black) (part available in kit) |
|
25a |
375-9018
|
Gasket |
1 |
(includes 25b-26) |
|
25b |
N/A
|
Not available |
1 |
(sealing gasket 3 x 1.5 x 593mm) (part available in kit) |
|
26 |
N/A
|
Not available |
1 |
(sealing gasket 4 x 2.5 x 150mm) (part available in kit) |
|
27 |
N/A
|
Not available |
1 |
(water channel 6mm x 225mm) (part available in kit) |
|
28a |
375-9019
|
Gasket set |
1 |
(includes 28b-29) |
|
28b |
N/A
|
Not available |
1 |
(center sealing gasket top vacuum motor) (part available in kit) |
|
29 |
N/A
|
Not available |
1 |
(vacuum motor sealing top) (part available in kit) |
|
30a |
375-9020
|
Valve assembly |
1 |
(includes 30b-33) |
|
30b |
N/A
|
Not available |
2 |
(screw M3 x 12 crosshead selftapping) (part available in kit) |
|
31 |
475-1526
|
SCREW, FLT, SOC, M4 X 10 SS [10X, IMOP] |
2 |
|
|
32 |
N/A
|
Not available |
1 |
(magnetic ventil fixation plate stainless steel) (part available in kit) |
|
33 |
375-3950
|
Copper valve assembly with connectors |
1 |
|
|
34a |
375-9021
|
Connector kit |
1 |
(includes 34b-37) |
|
34b |
N/A
|
Not available |
1 |
(motor unit frame) (part available in kit) |
|
35 |
N/A
|
Not available |
1 |
(motor unit frame rubber) (part available in kit) |
|
36 |
375-4094
|
Circuit board valve |
1 |
(includes 30) |
|
37 |
375-4096
|
Connector assembly |
1 |
|
|
