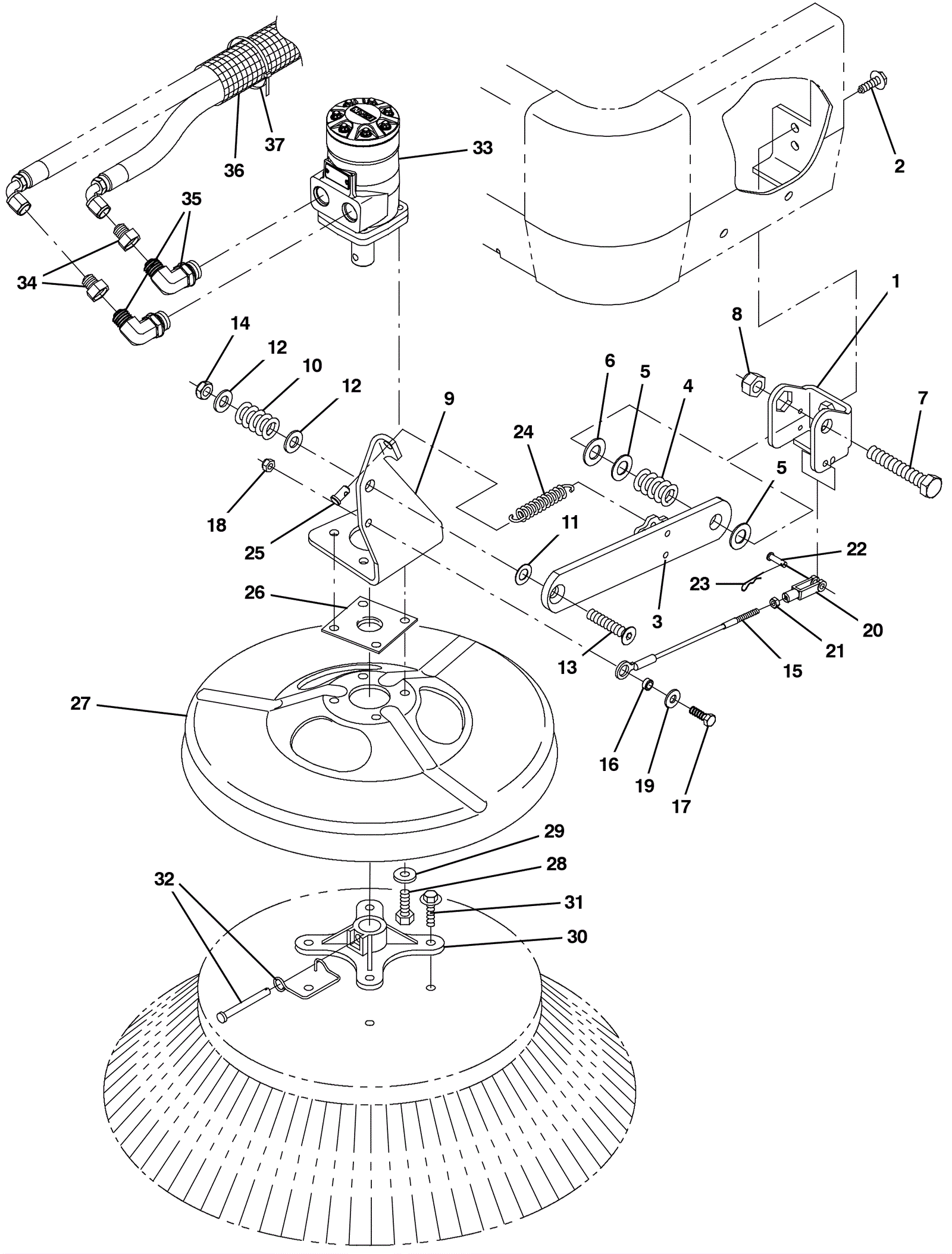

S20 Dual Side Brush Motor and Pivot Assembly - Left Hand

#PartDescriptionPriceReqNotesAvailability
1 575-5387 BRACKET, SIDEBRUSH, LH (Tennant Industrial) $61.51 1 usually ships 10-16 days
2 275-2690 Screw M10-1 1/2 x 35mm hex head (Tennant Industrial) $6.17 2 usually ships 1-5 days
3 575-6353 ARM WLDT, LIFT, LH (Tennant Industrial) $75.68 1 usually ships 10-16 days
4 275-3217 SPRING, DSL, 1.25OD 0.62ID 1.80L (Tennant Industrial) $84.35 1 usually ships 1-5 days
5 175-3347 Washer .61 thrust $5.50 2 ships same day
6 275-0710 Flat washer $4.88 1 usually ships 10-16 days
7 375-0427 Screw M16-2 x 90 hex head (Tennant Industrial) $12.50 1 usually ships 10-16 days
8 999-0764 Nut M16-2 hex nylon insert lock zinc plated $0.99 1 ships same day
9 575-6110 BRACKET, MTG, MOTOR, LH (Tennant Industrial) $71.51 1 usually ships 10-16 days
10 275-0157 SPRING, DSL, 1.00OD 0.50ID 1.25L (Tennant Industrial) $42.34 1 usually ships 10-16 days
11 275-0817 Thrust bearing $5.83 1 usually ships 10-16 days
12 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
13 575-0692 SCREW, FLT, SOC, .50-13 X 2.50, AL (Tennant Industrial) $14.50 1 usually ships 10-16 days
14 475-9853 NUT, HEX, FLEXLOCK, .50-13, THIN (Tennant Industrial) $9.17 1 usually ships 10-16 days
15 575-2256 CABLE, SS .19D 008.5L .55EYE / M6-1.0 (Tennant Industrial) $24.17 1 usually ships 10-16 days
16 175-0550 Sleeve $4.62 1 ships same day
17 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
20 575-3643 CLEVIS, ADJ, M6 PIN, M6 X 1.0 RH, PL (Tennant Industrial) $36.01 1 usually ships 10-16 days
21 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
22 175-9987 Clevis pin 1/4 x 3/4 $4.09 1 usually ships 1-5 days
23 175-7107 Cotter hair pin $3.04 1 usually ships 10-16 days
24 175-6921 Extension spring $11.22 1 usually ships 10-16 days
25 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.17 1 usually ships 10-16 days
26 575-0764 GUARD, STRING, MOTOR, BRUSH (Tennant Industrial) $15.67 1 usually ships 10-16 days
27 275-6380 Brush guard (Tennant Industrial) $61.51 1 usually ships 1-5 days
28 275-3111 SCREW, HEX, .38-16 X 1.25, NL (Tennant Industrial) $6.17 4 usually ships 1-5 days
29 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
30 175-7200 Side brush drive hub (Tennant Industrial) $124.36 1 usually ships 10-16 days
31 475-9188 SCREW, HEX, .31-12 X 1.50, FMG [AB] (Tennant Industrial) $6.17 4 usually ships 10-16 days
32 175-7201 Pin (Tennant Industrial) $33.17 1 usually ships 10-16 days
33a 675-5865 MOTOR KIT, SIDE BRUSH, REPLMT, IC (Tennant Industrial) $841.17 2 (before SN 002396) usually ships 10-16 days
33b 675-5883 MOTOR, HYD, GEAR, INT 09.7 BI-DIR 1500 (Tennant Industrial) $845.84 2 (includes 33c) (after SN 002395) usually ships 10-16 days
33c 375-0949 Motor seal kit (Tennant Industrial) $169.37 1 (after SN 002396) usually ships 10-16 days
34a 575-1567 FITTING, HYD, STR, JF08/JM06 (Tennant Industrial) $19.34 2 (before SN 003000) usually ships 10-16 days
34b 575-1177 FITTING, HYD, STR, FF08/FM06 (Tennant Industrial) $16.84 2 (after SN 002999) usually ships 10-16 days
35a 175-6893 Elbow fitting $35.97 2 (before SN 003000) usually ships 1-5 days
35b 575-4341 FITTING, HYD, E90, FM08/OM10 (Tennant Industrial) $42.34 2 (after SN 002999) usually ships 10-16 days
36 575-3681 SLEEVE, NYL, 1.63ID 25.0L (Tennant Industrial) $35.34 1 usually ships 10-16 days
37 175-2162 Nylon wire tie $3.04 1 usually ships 10-16 days
