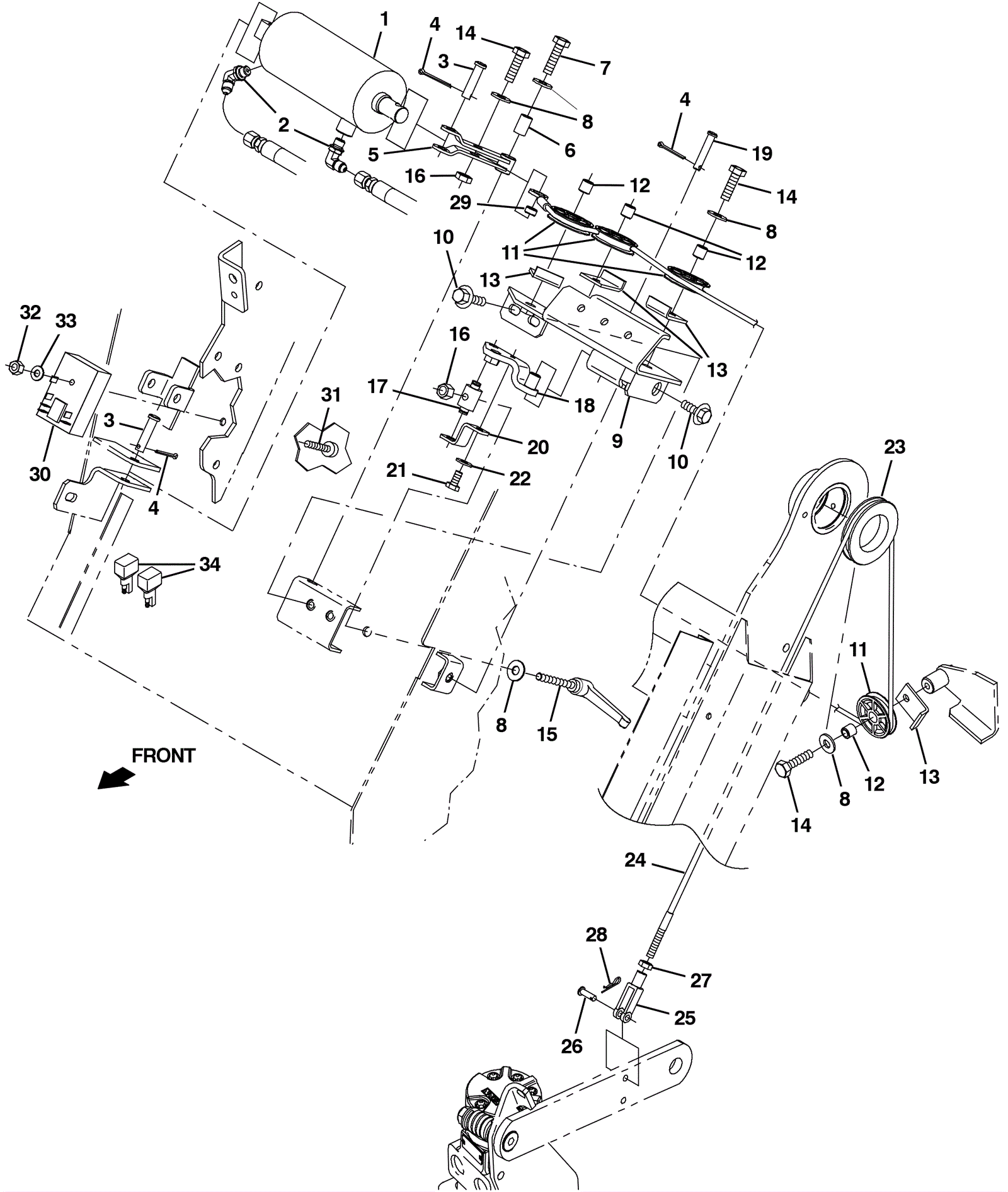

S20 Dual Side Brush Lift Assembly - Left Hand

#PartDescriptionPriceReqNotesAvailability
1 675-4624 CYL, HYD, 2.5B 9.0L 01.50STRK, 2500 (Tennant Industrial) $507.77 1 usually ships 10-16 days
2a 175-6919 Elbow fitting $14.30 2 (before SN 003000) usually ships 10-16 days
2b 575-3559 FITTING, HYD, E90, FM04/OM04 (Tennant Industrial) $34.51 2 (after SN 002999) usually ships 10-16 days
3 175-2111 Clevis pin $4.75 2 usually ships 10-16 days
4 175-4986 Cotter pin $3.04 3 usually ships 1-5 days
5 575-6012 PIVOT WLDT (Tennant Industrial) $70.51 1 usually ships 10-16 days
6 275-2023 TUBE, 0.33ID 0.51OD 00.8L, STL, PL (Tennant Industrial) $14.17 1 usually ships 1-5 days
7 175-0634 Bolt M8-1 1/4 x 35mm hex head $4.09 1 usually ships 1-5 days
8 999-0024 Washer 5/16 flat stainless steel $1.34 7 ships same day
9 575-7072 PLATE WLDT (Tennant Industrial) $88.85 1 usually ships 10-16 days
10 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $4.60 3 ships same day
11 275-0057 PULLEY, CABLE, 1.5D NYL (Tennant Industrial) $7.67 4 usually ships 10-16 days
12 175-2249 Sleeve $3.83 4 ships same day
13 275-0058 Cable keeper angle bracket $7.59 4 usually ships 1-5 days
14 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 5 ships same day
15 575-5088 LEVER, ADJ, METAL (Tennant Industrial) $53.84 1 usually ships 10-16 days
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 usually ships 12-18 days
17 575-7541 BLOCK, ADJ, PIVOT (Tennant Industrial) $87.68 1 usually ships 10-16 days
18 575-7979 PIVOT WLDT, SBA (Tennant Industrial) $108.02 1 usually ships 10-16 days
19 275-5392 Clevis pin $4.09 1 usually ships 10-16 days
20 575-0759 ANGLE, BOTTOM (Tennant Industrial) $15.67 1 usually ships 10-16 days
21 175-9354 Screw M6 hex $3.04 1 usually ships 10-16 days
22 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
23 575-6803 PULLEY, CABLE, 3.0D 1.76B, .25D CABLE (Tennant Industrial) $74.68 1 usually ships 10-16 days
24 575-5188 CABLE, SS .12D 89.0L .55EYE / M6-1.0 (Tennant Industrial) $52.84 1 usually ships 10-16 days
25 575-3643 CLEVIS, ADJ, M6 PIN, M6 X 1.0 RH, PL (Tennant Industrial) $36.01 1 usually ships 10-16 days
26 175-9987 Clevis pin 1/4 x 3/4 $4.09 1 usually ships 1-5 days
27 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
28 175-7107 Cotter hair pin $3.04 1 usually ships 10-16 days
29 175-0550 Sleeve $4.62 1 ships same day
30 575-9453 TIMER, 12VDC, 10A [LEFT HAND SIDE BRUSH] (Tennant Industrial $148.36 1 usually ships 10-16 days
31 475-7720 SCREW, PAN, PHL, M6 X 1.0 X 40, BLK (Tennant Industrial) $3.40 1 usually ships 10-16 days
32 999-0439 Nut M6-1 hex coarse thread $0.99 1 ships same day
33 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
34 175-2216 Diode plug $13.20 1 ships same day
