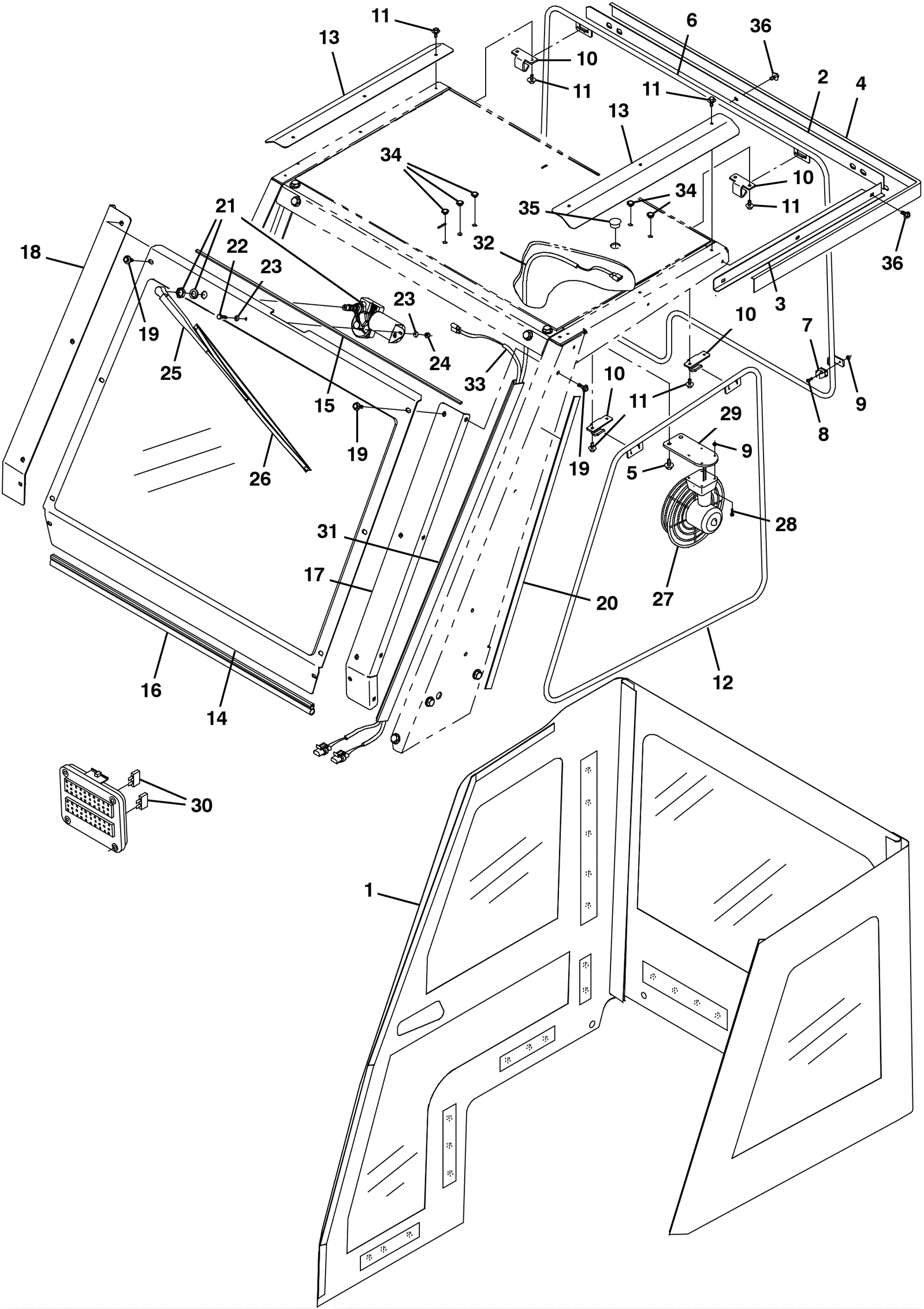

S20 Cab Frame and Windows Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-8503 PANEL ASSY, CAB (Tennant Industrial) $3,851.69 1 usually ships 5-16 days
2 575-1689 ANGLE, CAB, REAR [DRIP LEDGE, S20] (Tennant Industrial) $23.71 1 (after SN 001965) usually ships 5-16 days
3 575-1690 ANGLE, CAB, SIDE [DRIP LEDGE, S20] (Tennant Industrial) $23.71 1 (after SN 001965) usually ships 5-16 days
4 375-9068 Lip seal (OBSOLETE) Call for price 1 (after SN 001965) usually ships 5-16 days
5 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
6 675-3318 PANEL WLDT, FRAME, REAR (Tennant Industrial) $380.43 1 usually ships 5-16 days
7 475-7749 CLIP, GRIP, PIPE, 0.50, PLSTC (Tennant Industrial) $3.01 1 usually ships 5-16 days
8 175-5310 Screw 4 x 45/64 x 16 pan head $3.19 1 usually ships 1-5 days
9 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
10 575-1036 BRACKET, MTG, PANEL, CAB (Tennant Industrial) $18.87 4 usually ships 5-16 days
11 175-3166 Bolt M6-1 x 16mm hex head $3.96 14 usually ships 5-16 days
12 675-1718 PANEL WLDT, FRAME, CAB (Tennant Industrial) $252.84 1 usually ships 5-16 days
13 575-2940 PLATE, SHIELD, TOP (Tennant Industrial) $35.57 2 usually ships 5-16 days
14 675-7837 PANE ASSY, WINDSHIELD (Tennant Industrial) $2,190.37 1 usually ships 5-16 days
15 275-6116 Seal (TENNANT INDUSTRIAL) $5.01 1 usually ships 1-5 days
16 375-4362 8 foot bulb seal (Tennant Industrial) $149.63 1 usually ships 5-16 days
17 575-7207 ANGLE, MTG, WNDW, LH (Tennant Industrial) $89.85 1 usually ships 5-16 days
18 575-7208 ANGLE, MTG, WNDW, RH (Tennant Industrial) $89.85 1 usually ships 5-16 days
19 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $3.67 16 ships same day
20 475-9790 CS, TAPE, HOOK, 1.0W [VELCRO] (Tennant Industrial) $10.02 1 usually ships 5-16 days
21 675-3616 MOTOR ASSY, ELE, WIPER, 12VDC 85DEG (Tennant Industrial) $396.12 1 usually ships 5-16 days
22 275-0923 Screw M5 - 7/8 hex lock $3.30 1 usually ships 1-5 days
23 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
24 175-2894 Nut M5-.8 hex nylon locking $2.42 1 usually ships 5-16 days
25 575-6111 ARM, WIPER, WINDSHIELD 16.0L (Tennant Industrial) $53.27 1 usually ships 5-16 days
26 575-3068 BLADE, WIPER, WINDSHIELD, 22.0L (Tennant Industrial) $33.07 1 usually ships 5-16 days
27 675-1561 FAN, DEFROSTER, 12VDC, 07.3D (Tennant Industrial) $253.01 1 usually ships 5-16 days
28 175-3291 SCREW, HEX, M4 X 0.70 X 20, 8.8 (Tennant Industrial) $4.84 3 usually ships 5-16 days
29 575-0892 BRACKET, MTG, FAN (Tennant Industrial) $17.70 1 usually ships 5-16 days
30 475-7576 FUSE, BLADE, 005A, 32VDC [MINI] (Tennant Industrial) $2.17 2 usually ships 5-16 days
31 575-6752 DUCT, VYL, 0.74 X 1.50 .75D MAX 48.0L (Tennant Industrial) $73.31 1 usually ships 5-16 days
32 575-4301 HARNESS, FAN, IC [S20] (Tennant Industrial) $50.10 1 usually ships 5-16 days
33 575-3369 HARNESS, WIPER, WINDSHIELD, IC [S20] (Tennant Industrial) $39.41 1 usually ships 5-16 days
34 475-7620 PLUG, HOLE, RND, 0.38H 0.3L, PLSTC (Tennant Industrial) $2.34 5 usually ships 5-16 days
35 475-7581 PLUG, HOLE, RND, 1.00H .14-.25, BLK NYL (Tennant Industrial) $2.17 1 usually ships 5-16 days
36 175-3166 Bolt M6-1 x 16mm hex head $3.96 4 (after SN 001965) usually ships 5-16 days
