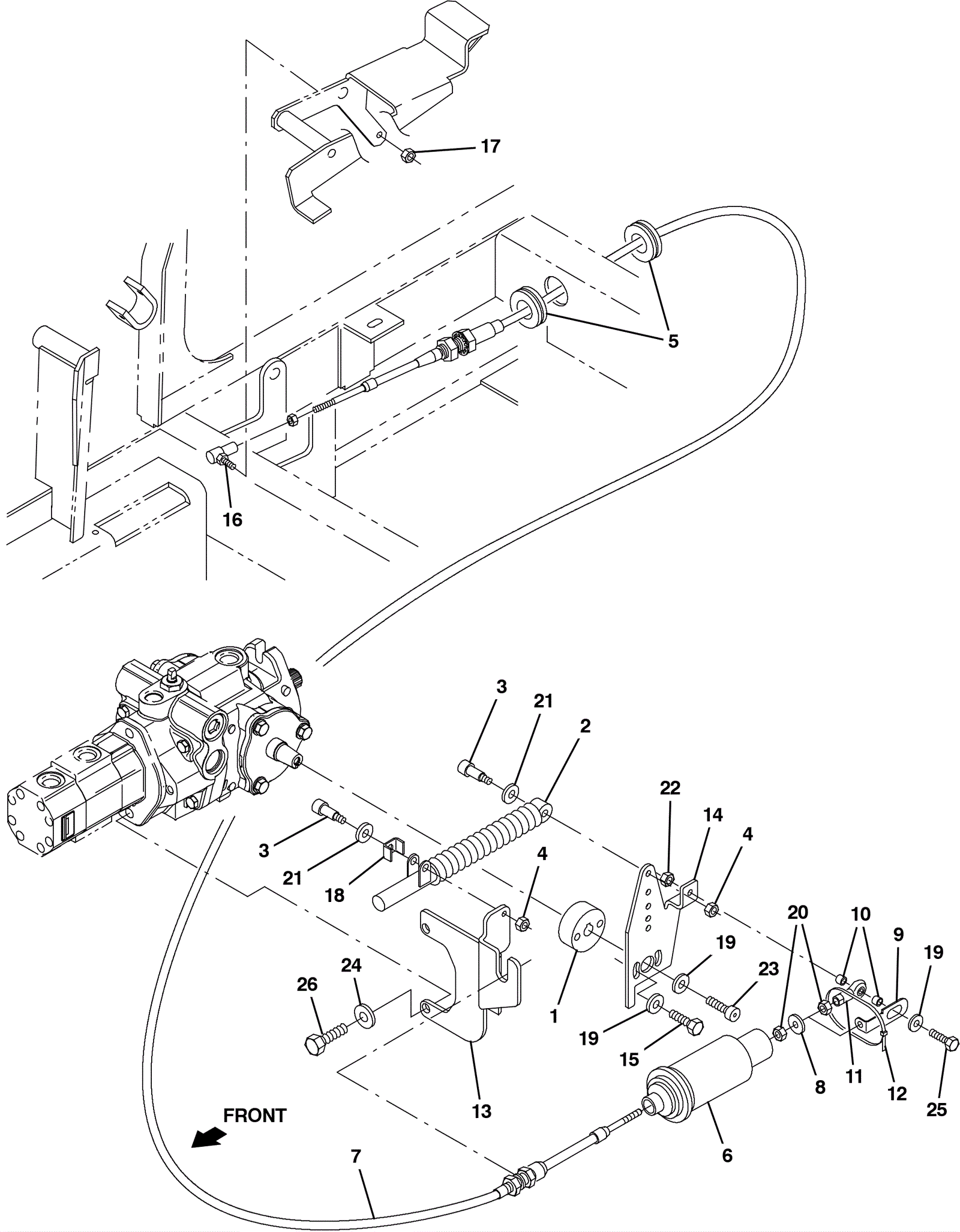

S20 Hydraulic Pump Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7155 HUB, MTG, ARM, CNTRL, PINTLE (Tennant Industrial) $39.67 1 usually ships 1-5 days
2 275-3117 SHOCK ABSORBER, 2.3 STRK (Tennant Industrial) $177.37 1 usually ships 10-16 days
3 175-3285 Bolt 1/4-20 x 5/16-1 shoulder $6.82 2 usually ships 1-5 days
4 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
5 275-4164 GROMMET, RBR, 1.06ID, F/1.4H, .19 MATL (Tennant Industrial) $7.50 2 usually ships 1-5 days
6 675-0452 SPRING ASSY, CENTERING[10/15 LB PRELOAD] (Tennant Industrial $168.87 1 usually ships 10-16 days
7 675-4698 CABLE, PUSH / PULL, 092.0L .25-28/.25-28 (Tennant Industrial $516.94 1 usually ships 10-16 days
8 175-7194 WASHER, FLAT, 0.25B 0.88D .06, NEO (Tennant Industrial) $5.17 1 usually ships 1-5 days
9 575-2335 BRACKET, CLIP, SAFETY (Tennant Industrial) $27.51 1 usually ships 10-16 days
10 175-5327 Spacer $19.03 2 usually ships 10-16 days
11 175-7212 ROD-END, 0.25-28RH FEM 0.25B [TEFLON] (Tennant Industrial) $68.68 1 usually ships 1-5 days
12 175-2162 Nylon wire tie $3.04 1 usually ships 10-16 days
13 575-2364 BRACKET, MTG, CABLE, PROPEL (Tennant Industrial) $30.34 1 usually ships 10-16 days
14 575-1140 BRACKET, MTG, CABLE, PROPEL (Tennant Industrial) $20.00 1 usually ships 10-16 days
15 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
16 175-3302 Balljoint 1/4-28 $9.35 1 usually ships 10-16 days
17 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 1 ships same day
18 275-3114 BRACKET, RETAINER, SAFETY (Tennant Industrial) $17.00 1 usually ships 1-5 days
19 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
20 999-0651 Nut 1/4-28 hex stainless steel $0.99 3 ships same day
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
22 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
23 175-7156 SCREW, SOC, .31-24 X 0.75, AL (Tennant Industrial) $5.00 1 usually ships 1-5 days
24 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
25 475-0401 SCREW, HEX, .25-20 X 1.75, G5 $5.28 1 usually ships 10-16 days
26 475-0331 SCREW, HEX, .38-16 X 1.50, G5 $3.70 2 usually ships 10-16 days
