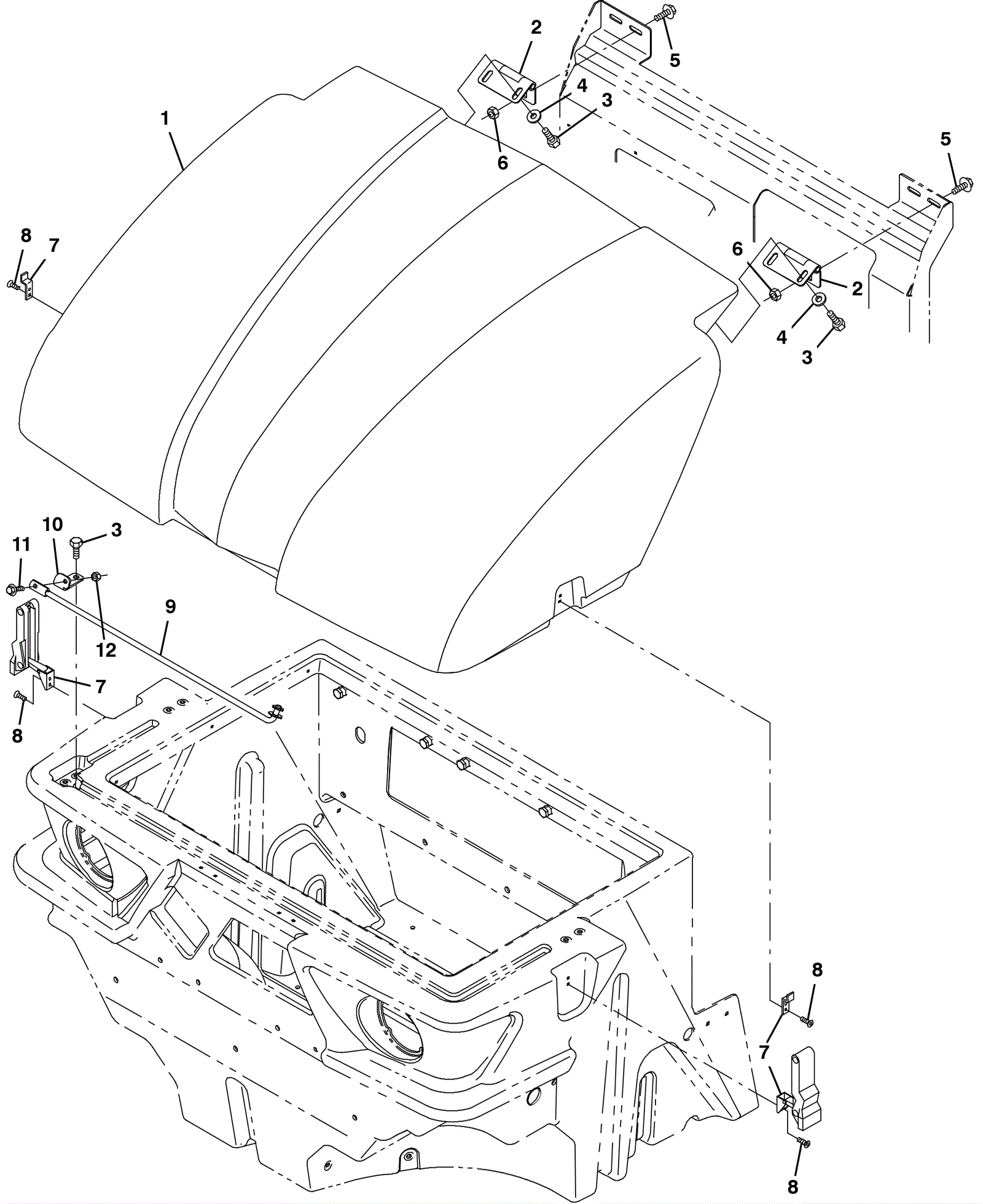

S20 Hopper Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-4090 COVER, HPPR (Tennant Industrial) $472.28 1 usually ships 5-16 days
2 575-3671 HINGE, .38PIN .12 3.5W 4.0L [OAL] (Tennant Industrial) $36.57 2 usually ships 5-16 days
3 999-0783 Screw M8-1.25 x 16mm hex head $0.99 6 ships same day
4 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
5 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $3.67 4 ships same day
6 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
7 275-8500 LATCH (Tennant Industrial) $84.17 2 usually ships 1-5 days
8 999-1225 Screw M5-.8 x 12mm pan head phillips zinc $0.99 8 ships same day
9 575-5024 ROD WLDT, SAFETY, HPPR COVER (Tennant Industrial) $55.78 1 usually ships 5-16 days
10 575-0932 BRACKET, ROD, SAFETY (Tennant Industrial) $17.87 1 usually ships 5-16 days
11 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 1 ships same day
12 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
