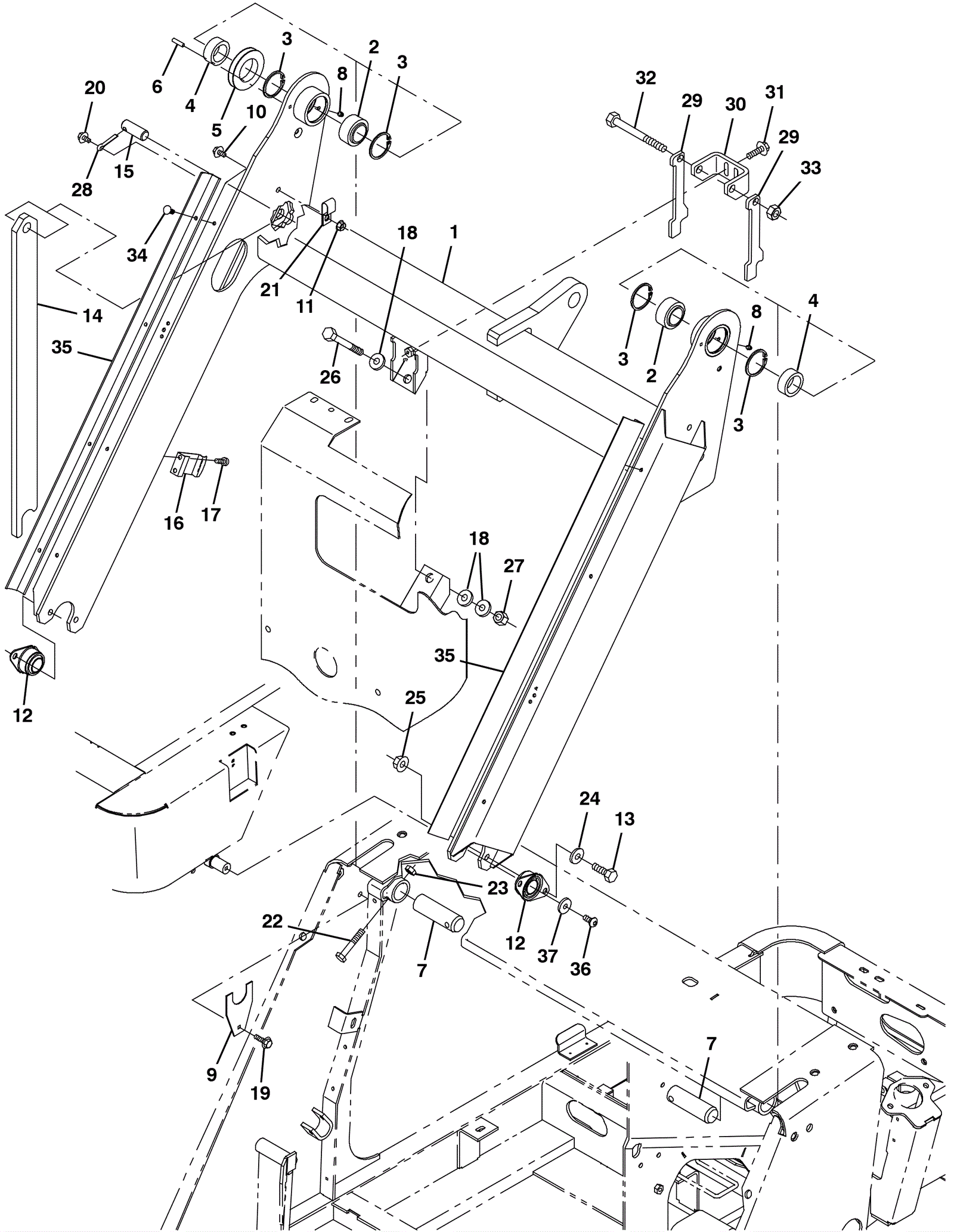

S20 Hopper Lift Arms Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-7433 ARM, LIFT, HPPR, W/ LABEL, NA [S20 ] (Tennant Industrial) $1,780.86 1 usually ships 10-16 days
2 275-2505 Self align bearing (Tennant Industrial) $79.68 2 usually ships 1-5 days
3 275-8454 RING, RETAINING, INT, 2.00D (Tennant Industrial) $6.17 4 usually ships 1-5 days
4 575-0775 SLEEVE, P/M, 1.25B 1.75D 0.7L [430SS] (Tennant Industrial) $13.67 2 usually ships 10-16 days
5 575-6803 PULLEY, CABLE, 3.0D 1.76B, .25D CABLE (Tennant Industrial) $74.68 1 usually ships 10-16 days
6 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) $5.00 1 ships same day
7 575-6452 PIN, 1.25D 04.0L, 1/.34H, STL (Tennant Industrial) $69.35 2 usually ships 10-16 days
8 175-3248 Grease fitting $4.09 2 usually ships 10-16 days
9 275-8478 PLATE, SPACER, LIFT ARM (Tennant Industrial) $12.34 8 usually ships 1-5 days
10 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 1 ships same day
11 999-0665 Nut M8-1.25 flange lock $0.99 1 ships same day
12 575-3191 BEARING, FLNG, 2HOLE, 1.00B (Tennant Industrial) $31.84 2 usually ships 10-16 days
13 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
14a 675-2079 ARM KIT, SAFETY, HPPR, W/ LABEL [S20] (Tennant Industrial) $281.72 1 usually ships 10-16 days
14b 675-2844 ARM KIT, SAFETY, HPPR, W/ LABEL, TJ[S20] (Tennant Industrial $341.74 1 usually ships 10-16 days
15 575-2979 PIN, 0.75D 02.0L, 1/.31H, STL (Tennant Industrial) $33.34 1 usually ships 10-16 days
16 275-8665 CLIP, SPRING, PROP ARM (Tennant Industrial) $60.35 1 usually ships 1-5 days
17 999-0807 Screw M6-1 x 10mm flat head phillips $2.49 2 ships same day
18 275-0464 Washer 1/2 flat belleville $4.88 3 usually ships 10-16 days
19 175-0536 Bolt M6-1 x 20mm hex head thread forming $4.09 2 ships same day
20 175-3298 Bolt M6-1 x 12mm hex head $4.09 1 ships same day
21 175-6894 CLAMP, CABLE, STL, 1.0X2.0X0.62W, 1HOLE (Tennant Industrial $8.84 1 usually ships 1-5 days
22 175-3163 Screw M8-1.25 x 60mm hex head $4.09 2 usually ships 10-16 days
23 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
24 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
25 175-0791 Nut M10 x 1.5 hex flange $4.88 4 ships same day
26 275-3929 Screw M10 x 1.5 hex $4.22 1 usually ships 1-5 days
27 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
28 475-8724 PIN, COTTER, .250 X 1 (Tennant Industrial) $5.00 1 usually ships 10-16 days
29 475-9774 PLATE, MTG, PIN (Tennant Industrial) $10.34 2 usually ships 10-16 days
30 575-1209 CHANNEL, MTG, LOCK (Tennant Industrial) $19.17 1 usually ships 10-16 days
31 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
32 275-0463 Screw M12-1.75 x 120mm hex head $8.99 1 ships same day
33 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
34 175-5943 CLIP, SNAP-IN, 0.25H 0.80L, BLK NYL (Tennant Industrial) $5.00 8 usually ships 10-16 days
35 575-4079 SEAL, COVER (Tennant Industrial) $42.84 2 usually ships 10-16 days
36 275-2235 SCREW, BTN, M8 X 1.25 X 16, SS (Tennant Industrial) $10.00 2 (after SN 001070) usually ships 1-5 days
37 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 (after SN 001070) ships same day
