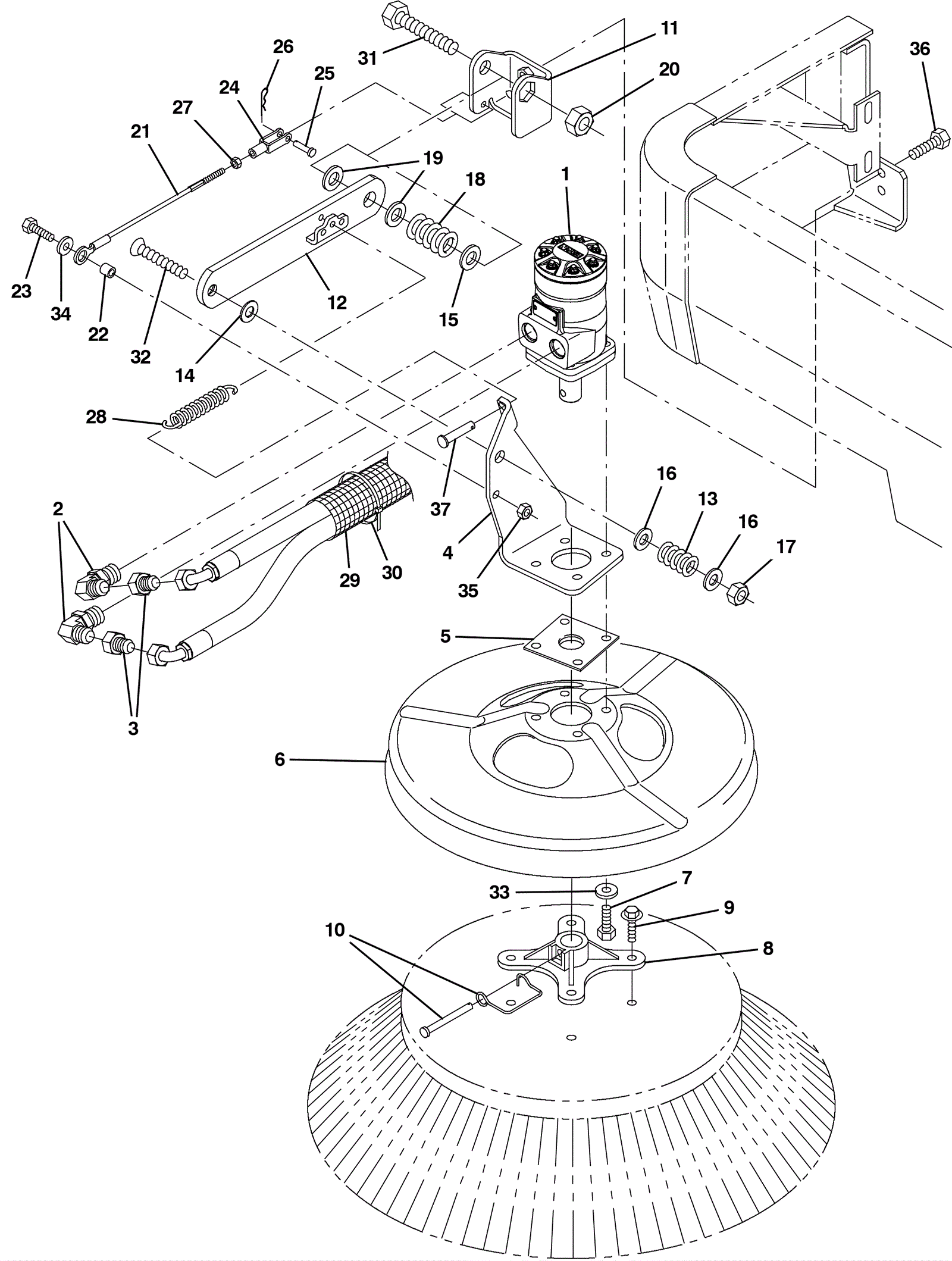

S20 Side Brush Motor and Pivot Assembly

#PartDescriptionPriceReqNotesAvailability
1a 675-5865 MOTOR KIT, SIDE BRUSH, REPLMT, IC (Tennant Industrial) $826.15 1 (before SN 002396) usually ships 5-16 days
1b 675-5883 MOTOR, HYD, GEAR, INT 09.7 BI-DIR 1500 (Tennant Industrial) $830.66 1 (after SN 002395) (includes 1c) usually ships 5-16 days
1c 375-0949 Motor seal kit (Tennant Industrial) $166.33 1 (after SN 002395) usually ships 5-16 days
2a 175-6893 Elbow fitting $35.20 2 (before SN 003000) usually ships 1-5 days
2b 575-4341 FITTING, HYD, E90, FM08/OM10 (Tennant Industrial) $41.58 2 (after SN 002999) usually ships 5-16 days
3a 575-1567 FITTING, HYD, STR, JF08/JM06 (Tennant Industrial) $18.87 2 (before SN 003000) usually ships 5-16 days
3b 575-1177 FITTING, HYD, STR, FF08/FM06 (Tennant Industrial) $16.53 2 (after SN 002999) usually ships 5-16 days
4 575-5389 BRACKET, MTG, MOTOR, RH (Tennant Industrial) $60.29 1 usually ships 5-16 days
5 575-0764 GUARD, STRING, MOTOR, BRUSH (Tennant Industrial) $15.36 1 usually ships 5-16 days
6 275-6380 Brush guard (Tennant Industrial) $60.29 1 usually ships 1-5 days
7 275-3111 SCREW, HEX, .38-16 X 1.25, NL (Tennant Industrial) $6.01 4 usually ships 1-5 days
8 175-7200 Side brush drive hub (Tennant Industrial) $122.08 1 usually ships 5-16 days
9 475-9188 SCREW, HEX, .31-12 X 1.50, FMG [AB] (Tennant Industrial) $6.01 4 usually ships 5-16 days
10 175-7201 Pin (Tennant Industrial) $32.57 1 usually ships 5-16 days
11 575-3570 BRACKET, ARM, SIDE BRUSH (Tennant Industrial) $38.58 1 usually ships 5-16 days
12 575-8046 ARM WLDT, LIFT, RH (Tennant Industrial) $107.72 1 usually ships 5-16 days
13 275-0157 SPRING, DSL, 1.00OD 0.50ID 1.25L (Tennant Industrial) $41.58 1 usually ships 5-16 days
14 275-0817 Thrust bearing $5.61 1 usually ships 5-16 days
15 275-0710 Flat washer $3.96 1 usually ships 5-16 days
16 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
17 475-9853 NUT, HEX, FLEXLOCK, .50-13, THIN (Tennant Industrial) $8.85 1 usually ships 5-16 days
18 275-3217 SPRING, DSL, 1.25OD 0.62ID 1.80L (Tennant Industrial) $82.83 1 usually ships 1-5 days
19 175-3347 Washer .61 thrust $4.84 2 ships same day
20 999-0764 Nut M16-2 hex nylon insert lock zinc plated $0.99 1 ships same day
21 575-2256 CABLE, SS .19D 008.5L .55EYE / M6-1.0 (Tennant Industrial) $23.71 1 usually ships 5-16 days
22 175-0550 Sleeve $3.74 1 ships same day
23 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
24 575-3643 CLEVIS, ADJ, M6 PIN, M6 X 1.0 RH, PL (Tennant Industrial) $35.24 1 usually ships 5-16 days
25 175-9987 Clevis pin 1/4 x 3/4 $3.30 1 usually ships 1-5 days
26 175-7107 Cotter hair pin $2.42 1 usually ships 5-16 days
27 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
28 175-6921 Extension spring $11.00 1 usually ships 5-16 days
29 575-3681 SLEEVE, NYL, 1.63ID 25.0L (Tennant Industrial) $34.57 1 usually ships 5-16 days
30 175-2162 Nylon wire tie $2.42 2 usually ships 5-16 days
31 375-0427 Screw M16-2 x 90 hex head (Tennant Industrial) $12.19 1 usually ships 5-16 days
32 575-0692 SCREW, FLT, SOC, .50-13 X 2.50, AL (Tennant Industrial) $14.20 1 usually ships 5-16 days
33 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
34 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
35 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
36 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 2 ships same day
37 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.01 1 usually ships 5-16 days
