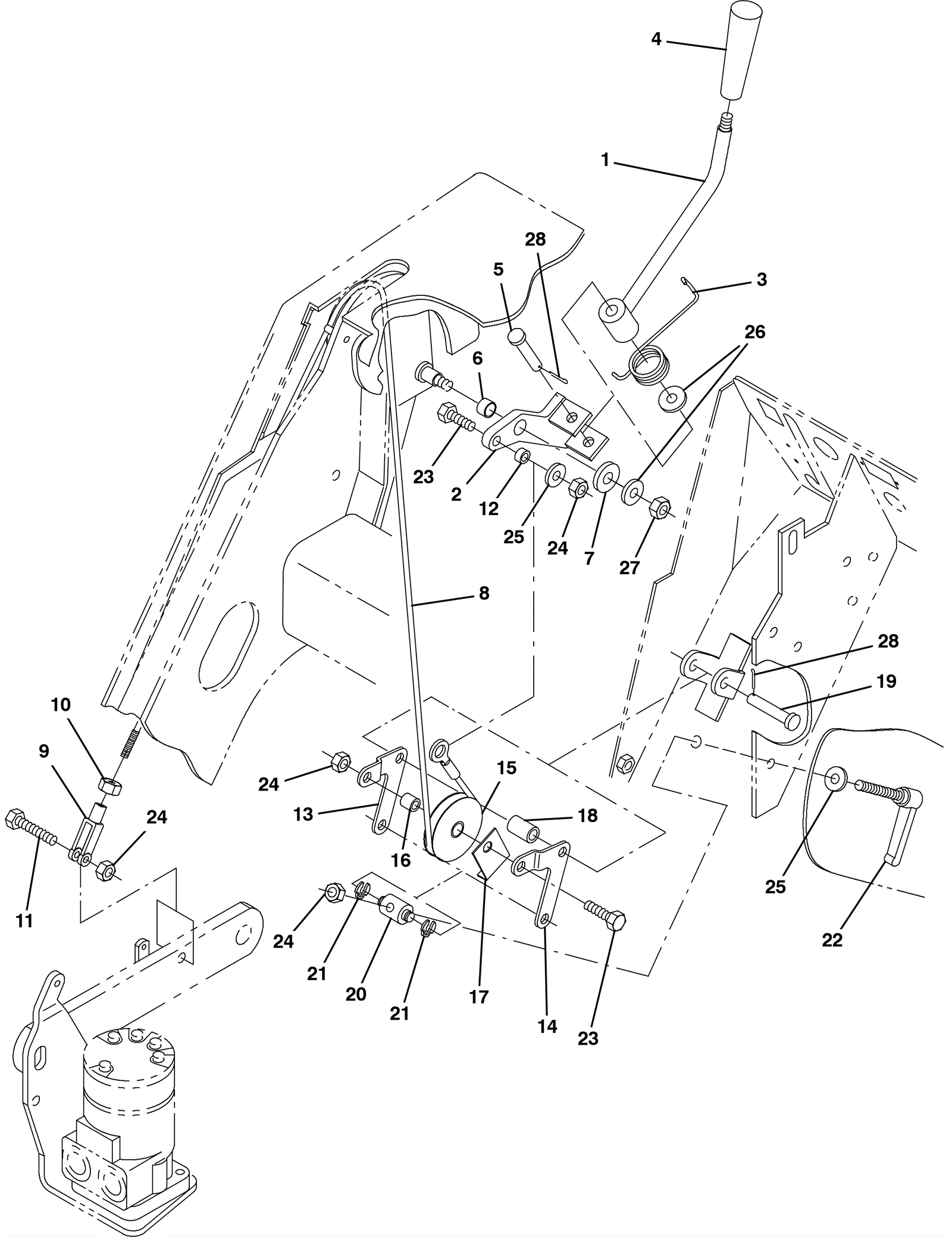

S20 Side Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-7138 HANDLE WLDT, BRUSH, SIDE (Tennant Industrial) $88.34 1 usually ships 5-16 days
2 575-6804 ARM WLDT, LIFT, BRUSH (Tennant Industrial) $81.83 1 usually ships 5-16 days
3 575-2272 SPRING, TORS, 1.03ID .11WIR 03.0COIL (Tennant Industrial) $24.05 1 usually ships 5-16 days
4 275-8476 KNOB, 1.12D 3.86L M10 X 1.5, PLSTC TPR] (Tennant Industrial $20.88 1 usually ships 5-16 days
5 275-2176 PIN, CLEVIS, 0.37D X 2.12L $3.96 1 usually ships 5-16 days
6 175-3355 Sleeved bushing $6.60 1 usually ships 5-16 days
7 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
8 575-4316 CABLE, SS .12D 60.25L .55EYE / M6-1.0 (Tennant Industrial) $41.58 1 usually ships 5-16 days
9 575-3643 CLEVIS, ADJ, M6 PIN, M6 X 1.0 RH, PL (Tennant Industrial) $35.24 1 usually ships 5-16 days
10 999-0439 Nut M6-1 hex coarse thread $0.99 1 ships same day
11 175-3163 Screw M8-1.25 x 60mm hex head $3.30 1 usually ships 5-16 days
12 175-0550 Sleeve $3.74 1 ships same day
13 575-2611 BELLCRANK, LIFT, BRUSH, SIDE, RH (Tennant Industrial) $26.72 1 usually ships 5-16 days
14 575-2612 BELLCRANK, LIFT, BRUSH, SIDE, LH (Tennant Industrial) $26.72 1 usually ships 5-16 days
15 275-0057 PULLEY, CABLE, 1.5D NYL (Tennant Industrial) $7.52 1 usually ships 5-16 days
16 175-2249 Sleeve $3.08 1 ships same day
17 275-0058 Cable keeper angle bracket $7.37 1 usually ships 1-5 days
18 575-0774 TUBE, 0.42ID 0.62OD 01.0L, STL, PL (Tennant Industrial) $15.36 1 usually ships 5-16 days
19 173-1595 Clevis pin (OBSOLETE) $3.96 1 usually ships 5-16 days
20 575-7541 BLOCK, ADJ, PIVOT (Tennant Industrial) $86.01 1 usually ships 5-16 days
21 275-8506 RING, RETAINING, EXT, 0.38D, [KLIPRING] (Tennant Industrial $5.01 2 usually ships 5-16 days
22 575-5088 LEVER, ADJ, METAL (Tennant Industrial) $52.77 1 usually ships 5-16 days
23 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
24 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
25 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
26 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
27 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
28 175-2117 Cotter pin $3.96 2 ships same day
