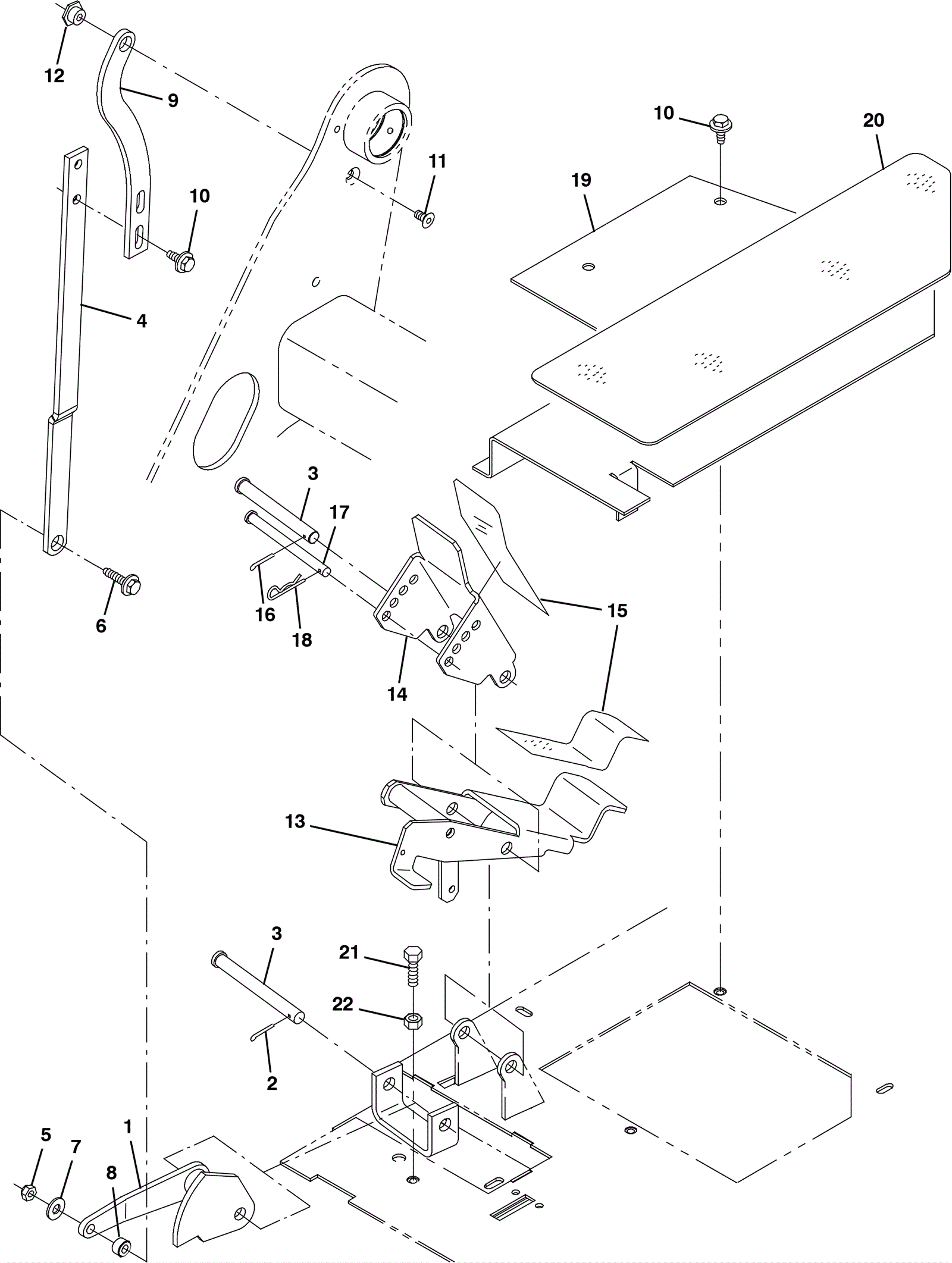

S20 Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-9253 CAM WLDT, LIMITER, SPD (Tennant Industrial) $134.10 1 usually ships 5-16 days
2 175-2040 Cotter pin $2.42 1 usually ships 5-16 days
3 175-2116 Clevis pin $5.83 2 usually ships 5-16 days
4 375-9045 Link $98.12 1 usually ships 5-16 days
5 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
6 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
7 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
8 175-2332 Spacer $4.62 1 ships same day
9 375-9046 Limiter link Call for price 1 usually ships 5-16 days
10 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $3.67 4 ships same day
11 275-0434 Screw M8-1.25 x 16 flat head $7.15 1 usually ships 1-5 days
12 575-2823 SPACER (Tennant Industrial) $28.22 1 usually ships 5-16 days
13 575-7907 PEDAL WLDT, PROPEL, LOWER (Tennant Industrial) $104.54 1 usually ships 5-16 days
14 575-3202 PEDAL, PROPEL, UPPER (Tennant Industrial) $38.08 1 usually ships 5-16 days
15 275-2978 TREAD, NON-SKID, 02.2W 15.5L (Tennant Industrial) $11.36 1 usually ships 1-5 days
16 175-3281 Cotter pin $2.42 1 usually ships 5-16 days
17 275-2976 PIN, CLEVIS, 0.37D X 4.50L (Tennant Industrial) $6.01 1 usually ships 5-16 days
18 275-2977 PIN, COTTER, HAIR, 13MMD 3MM WIR (Tennant Industrial) $5.85 1 usually ships 1-5 days
19 575-9252 COVER, PLT, FLOOR (Tennant Industrial) $139.11 1 usually ships 5-16 days
20 575-2448 TREAD, NON-SKID, 06.5W 20.6L (Tennant Industrial) $26.39 1 usually ships 5-16 days
21 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
22 999-0665 Nut M8-1.25 flange lock $0.99 1 ships same day
