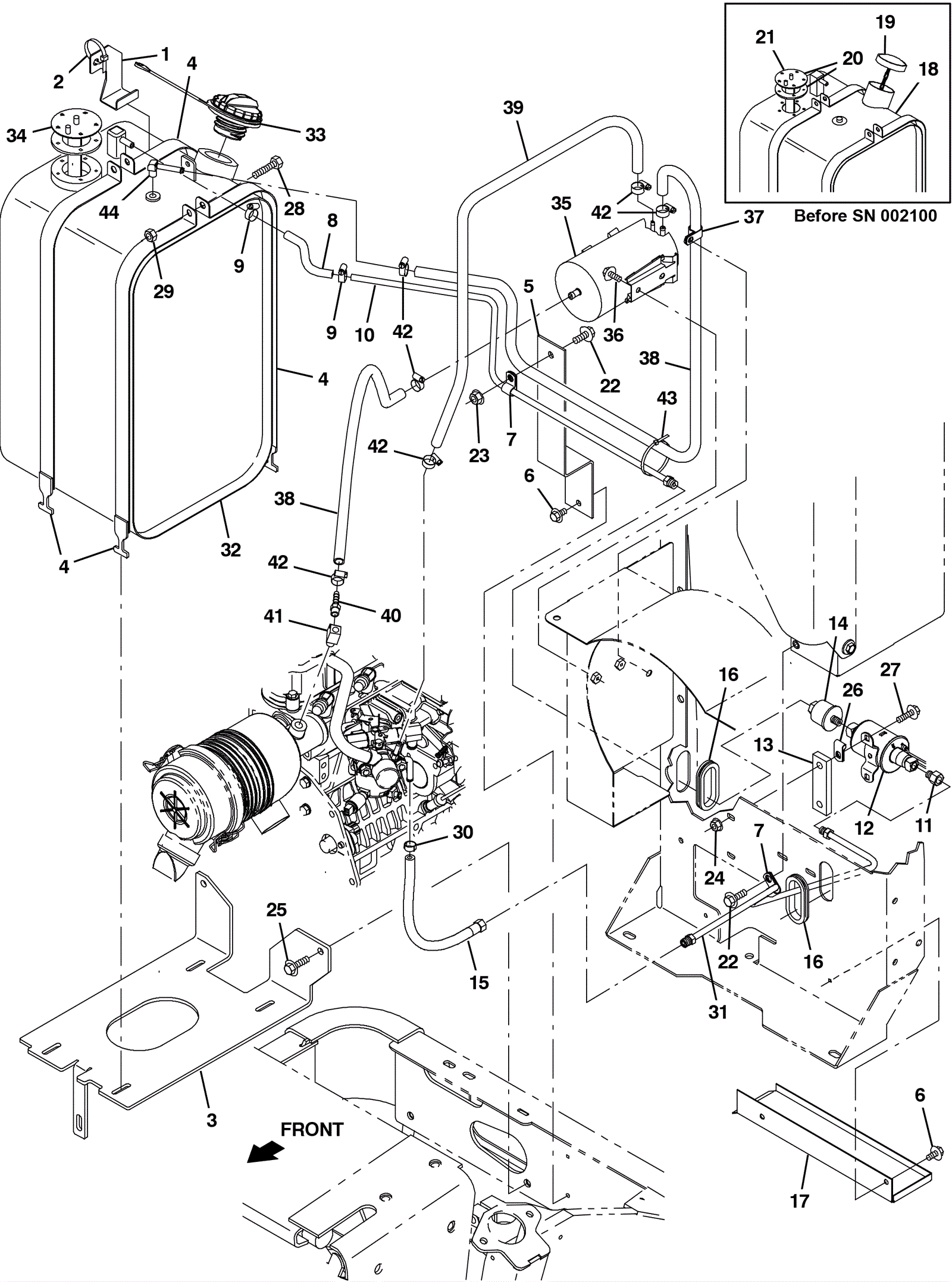

S20 Engine Fuel Tank Assembly - Gas

#PartDescriptionPriceReqNotesAvailability
1 575-1039 BRACKET, MTG, WIRE (Tennant Industrial) $18.87 1 usually ships 5-16 days
2 175-2162 Nylon wire tie $2.42 5 usually ships 5-16 days
3a 575-5591 BRACKET, MTG, TANK, FUEL (Tennant Industrial) $63.29 1 (before SN 005511) usually ships 5-16 days
3b 575-6737 BRACKET, MTG, TANK, FUEL (Tennant Industrial) $81.00 1 (after SN 005510) usually ships 5-16 days
4 575-4618 STRAP WLDT, TANK (Tennant Industrial) $48.60 4 usually ships 5-16 days
5 575-1551 BRACKET, SPPT, FUELLINE (Tennant Industrial) $22.71 1 usually ships 5-16 days
6 175-3298 Bolt M6-1 x 12mm hex head $4.47 4 ships same day
7 175-2152 P clamp $3.30 2 usually ships 1-5 days
8 575-6324 HOSE, FUEL, 0.31ID [EVAP EMISSION 07] (Tennant Industrial) $66.97 1 usually ships 5-16 days
9 175-3594 Hose clamp $3.96 2 ships same day
10 575-1822 FUELLINE, .31D 05IF/ STL (Tennant Industrial) $21.38 1 usually ships 5-16 days
11 275-2862 FITTING, BRS, STR, IF05/PM02 (Tennant Industrial) $6.01 1 usually ships 5-16 days
12 175-6854 PUMP, FUEL (Tennant Industrial) (OBSOLETE) $223.78 1 usually ships 5-16 days
13 375-3544 Flat bar (Tennant Industrial) $31.56 1 usually ships 5-16 days
14 375-3772 Fuel filter (Tennant Industrial) $28.39 1 usually ships 5-16 days
15 575-9592 HOSE, FUEL, 0.31D, FTG [EVAP EMISSION] (Tennant Industrial) $136.11 1 usually ships 5-16 days
16 275-0543 Rubber grommet $5.61 2 usually ships 1-5 days
17 575-4123 CHANNEL, SHIELD, FUEL DRIP (Tennant Industrial) $43.92 1 usually ships 5-16 days
18 675-4975 TANK, FUEL, 06.9GAL, 10.53W 18.6HI 10.0L (Tennant Industrial $623.41 1 (includes 19-21) (before SN 002100) usually ships 5-16 days
19 575-8124 CAP, TANK, FUEL, 2.3NECK 2.6D W/ CHAIN (Tennant Industrial) $105.54 1 (before SN 002100) usually ships 5-16 days
20 675-0086 VR, SEND-UNIT, 90 OHM (Tennant Industrial) $194.05 1 (includes 21) (before SN 002100) usually ships 5-16 days
21 275-2859 GASKET, SENDER, FUEL, 2.7D 1.5B 5/ 2.1BC (Tennant Industria $14.70 1 (before SN 002100) usually ships 1-5 days
22 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $3.67 2 ships same day
23 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
24 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 2 ships same day
25 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 3 ships same day
26 175-6768 P clamp (Tennant Industrial) $5.01 1 usually ships 1-5 days
27 475-8051 SCREW, HEX, M6 X 1.00 X 30, 9.8, SEMS (Tennant Industrial) $3.67 2 usually ships 5-16 days
28 175-3436 Bolt 8mm-1.25 x 40mm hex head $3.30 2 usually ships 1-5 days
29 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
30 475-8142 CLAMP, HOSE, STL, 14.5MM D X 7.0MM W (Tennant Industrial) $4.18 1 usually ships 5-16 days
31 575-3646 FUELLINE, .31D 05IF/05IF, STL (Tennant Industrial) $38.08 1 usually ships 5-16 days
32 675-4975 TANK, FUEL, 06.9GAL, 10.53W 18.6HI 10.0L (Tennant Industrial $623.41 1 (includes 33 and 34) (after SN 002099) usually ships 5-16 days
33 375-0631 Fuel tank cap (Tennant Industrial) $54.61 1 (after SN 002099) usually ships 5-16 days
34 675-3178 VR, SEND-UNIT, FUEL, 90 OHM (Tennant Industrial) $332.83 1 (after SN 002099) usually ships 5-16 days
35 575-5296 FILTER, CARBON, CANISTER (Tennant Industrial) $49.93 1 (after SN 002099) usually ships 5-16 days
36 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 (after SN 002099) ships same day
37 275-5443 P clamp $5.06 2 (after SN 002099) usually ships 1-5 days
27 575-4750 HOSE, FUEL, 0.25ID [EVAP EMISSION 2010] (Tennant Industrial $46.93 1 (after SN 002099) usually ships 5-16 days
39 575-6546 HOSE, FUEL, 0.19ID [EVAP EMISSION 2010] (Tennant Industrial $74.65 2 (after SN 002099) usually ships 5-16 days
40 175-1659 Fitting $3.96 1 (after SN 002099) usually ships 5-16 days
41 275-0341 Brass tee fitting $6.49 1 (after SN 002099) usually ships 5-16 days
42 175-3594 Hose clamp $3.96 6 (after SN 002099) ships same day
43 175-2162 Nylon wire tie $2.42 6 (after SN 002099) usually ships 5-16 days
44 575-1049 FITTING, BRS, E90, EM04/PM02 (Tennant Industrial) $18.04 1 (after SN 002099) usually ships 5-16 days
