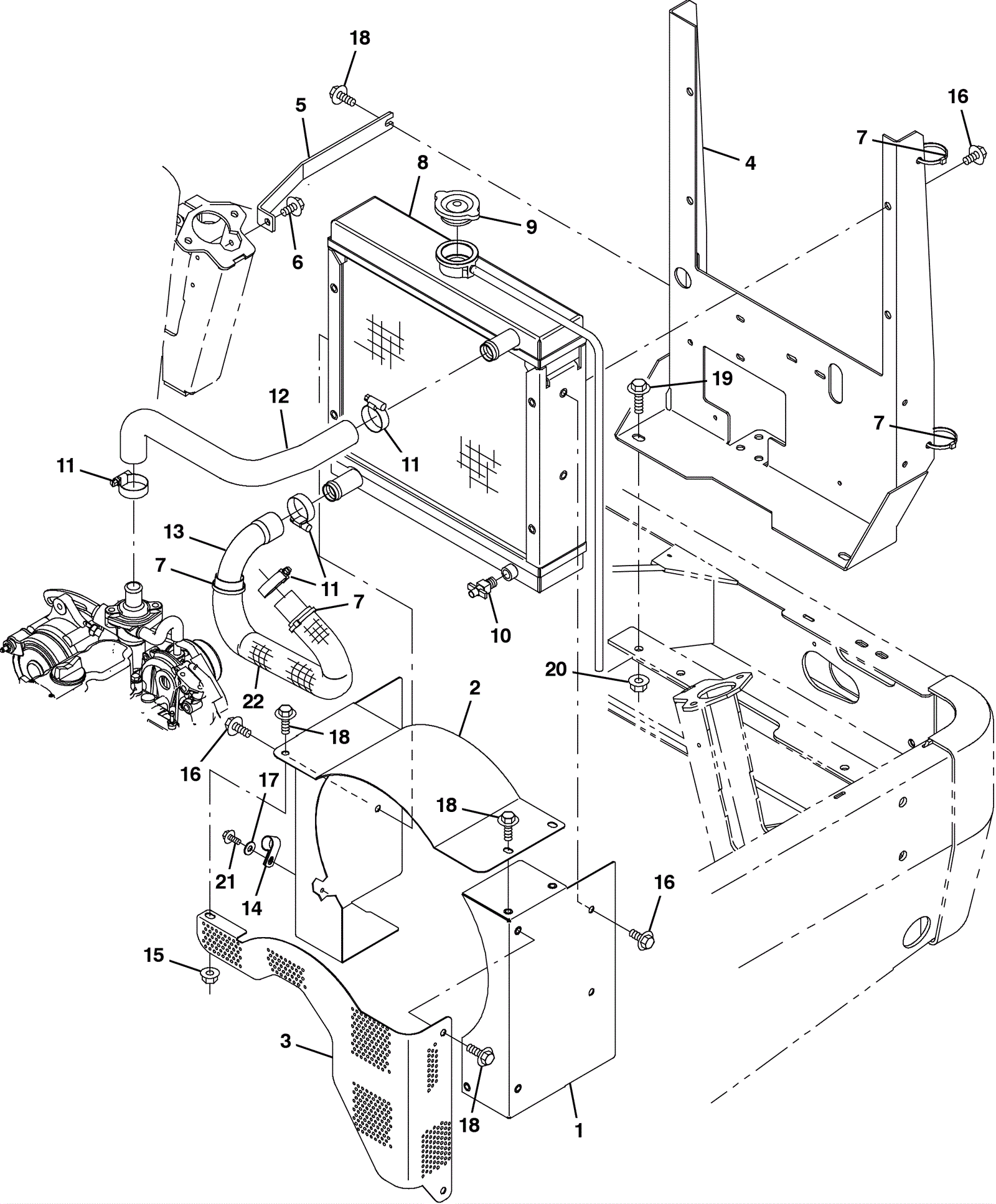

S20 Engine Radiator Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-0681 SHROUD, FAN, W/ LABEL, NA [S20] (Tennant Industrial) $199.21 1 usually ships 10-16 days
2 675-1284 SHROUD, FAN, RADIATOR, W/ LABEL, NA[S20] (Tennant Industrial $232.21 1 usually ships 10-16 days
3 575-5856 GUARD, FAN, ENG, PERF (Tennant Industrial) $68.35 1 usually ships 10-16 days
4 675-1116 ANGLE, MTG, RADIATOR (Tennant Industrial) $221.38 1 usually ships 10-16 days
5 575-1367 ANGLE, BRACE (Tennant Industrial) $21.67 1 usually ships 10-16 days
6 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
7 175-2162 Nylon wire tie $3.04 5 usually ships 10-16 days
8 675-7546 RADIATOR, ALM (Tennant Industrial) $1,703.01 1 usually ships 10-16 days
9 275-6393 Radiator cap (Tennant Industrial) $7.50 1 usually ships 10-16 days
10 575-0722 FITTING, DRAINCOCK, .25NPT (Tennant Industrial) $14.50 1 usually ships 10-16 days
11 175-2254 Hose clamp $5.50 4 ships same day
12 275-2881 HOSE, COOLANT, MOLD, 1.00ID TO 1.00ID (Tennant Industrial) $72.18 1 usually ships 1-5 days
13 575-5958 HOSE, COOLANT, MOLD, 0.87ID TO 1.00ID (Tennant Industrial) $62.85 1 usually ships 10-16 days
14 175-3168 P clamp $4.88 1 usually ships 10-16 days
15 999-0665 Nut M8-1.25 flange lock $0.99 1 ships same day
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 8 ships same day
17 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
18 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $4.60 6 ships same day
19 275-2690 Screw M10-1 1/2 x 35mm hex head (Tennant Industrial) $6.17 6 usually ships 1-5 days
20 175-0791 Nut M10 x 1.5 hex flange $4.88 2 ships same day
21 175-3166 Bolt M6-1 x 16mm hex head $4.88 2 usually ships 10-16 days
22 275-6689 SLEEVE, NYL, 2.38ID, 16.0L (TENNANT INDUSTRIAL) $16.84 1 usually ships 1-5 days
