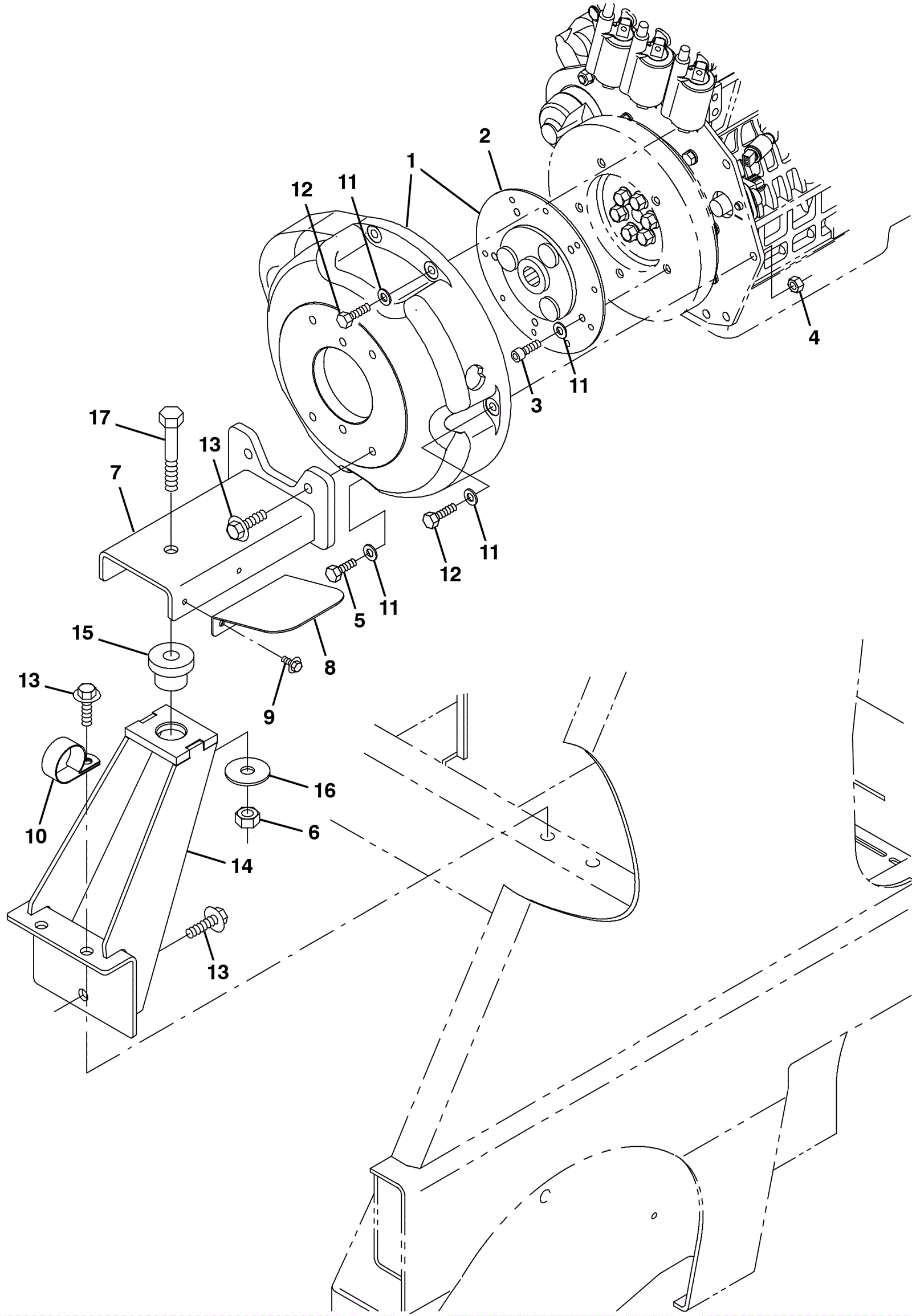

S20 Engine Flywheel Housing and Mount Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-6278 HOUSING ASSY, FLYWHEEL [KUBOTA DF972] (Tennant Industrial) $1,051.21 1 (includes item 2) usually ships 13-17 days
2 175-6818 COUPLING, DRIVE, FLEX, 06.0D /13TOOTH (Tennant Industrial) $652.63 1 usually ships 1-5 days
3 175-0602 Screw M8-1.25 x 25mm socket $4.49 5 usually ships 13-17 days
4 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 3 ships same day
5 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
6 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
7 575-6813 BRACKET WLDT, MTG, ENG, REAR (Tennant Industrial) $96.35 1 usually ships 13-17 days
8 575-0934 SHIELD, BATTERY (Tennant Industrial) $19.67 1 usually ships 13-17 days
9 175-3298 Bolt M6-1 x 12mm hex head $4.49 2 ships same day
10 175-9695 Steel cable clamp $6.49 1 usually ships 1-5 days
11 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 12 ships same day
12 175-0634 Bolt M8-1 1/4 x 35mm hex head $4.49 6 usually ships 1-5 days
13 275-2690 Screw M10-1 1/2 x 35mm hex head (Tennant Industrial) $6.67 6 usually ships 1-5 days
14 575-8553 ANGLE WLDT, MTG, ENG, FRONT [DF972] (Tennant Industrial) $129.69 1 usually ships 13-17 days
15 175-6823 ISOLATOR, VIB, .50D (Tennant Industrial) $59.68 1 usually ships 1-5 days
16 175-2188 Washer $4.49 1 usually ships 13-17 days
17 175-6824 Screw M12-1 3/4 x 60mm hex $5.28 1 usually ships 1-5 days
