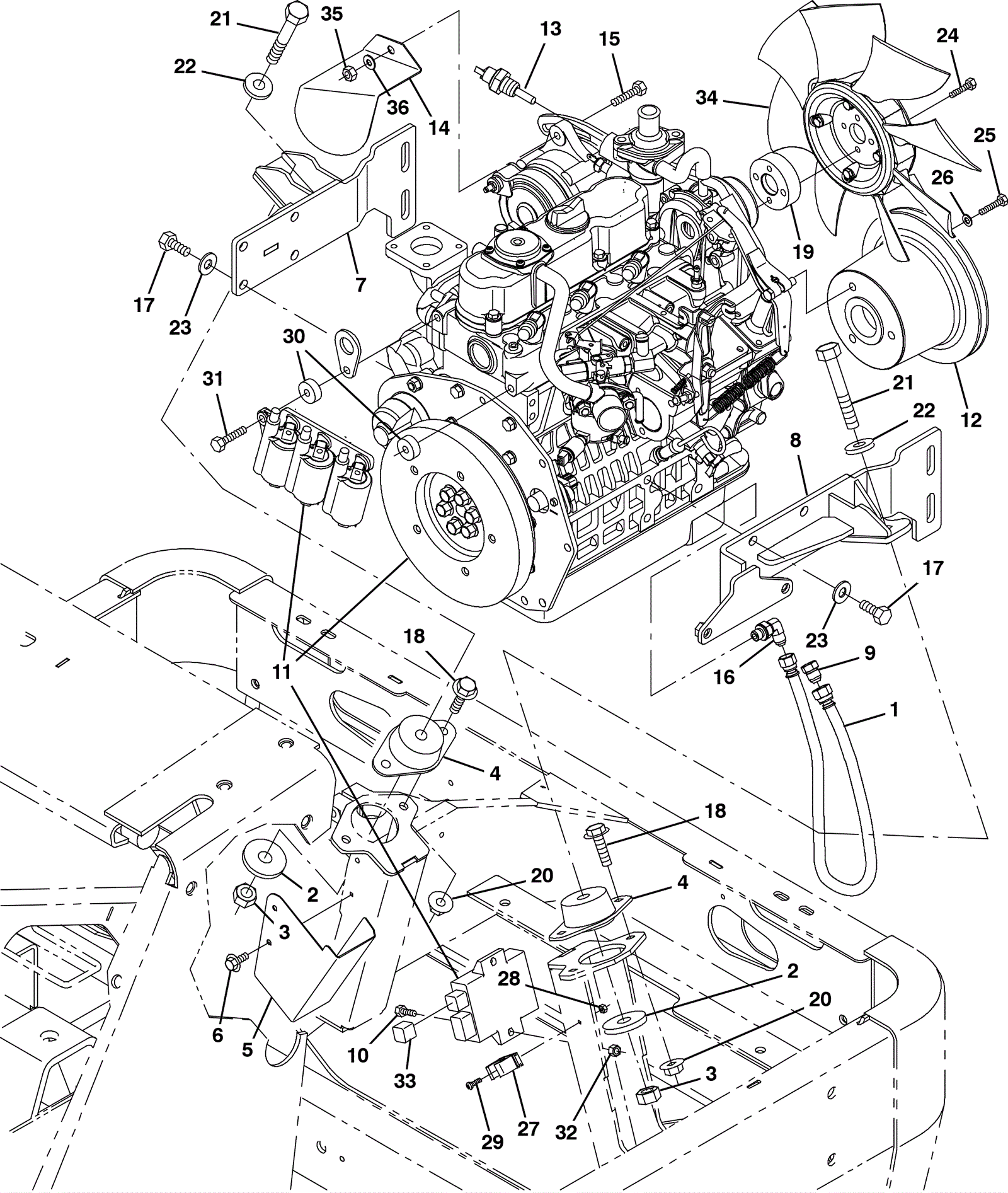

S20 Engine and Mount Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-5816 HOSE, HYD, LOW06, JF05STR/JF06STR, 023.0 (Tennant Industrial $61.29 1 usually ships 5-16 days
2 175-2188 Washer $3.30 2 usually ships 5-16 days
3 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 ships same day
4 175-6816 ISOLATOR, VIB, FLNG, 1.3L .5B 2/.39H (Tennant Industrial) $78.99 2 usually ships 1-5 days
5 575-2027 SHIELD, FLTR, OIL (Tennant Industrial) $26.89 1 usually ships 5-16 days
6 175-3298 Bolt M6-1 x 12mm hex head $4.47 2 ships same day
7 575-7556 PLATE WLDT, MTG, ENG, RH, GAS (Tennant Industrial) $96.86 1 usually ships 5-16 days
8 675-1926 PLATE WLDT, MTG, ENG, LH [DF972 2011] (Tennant Industrial) $267.20 1 usually ships 5-16 days
9 275-0296 Hydraulic plug fitting $7.37 1 usually ships 1-5 days
10 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
11a 375-9043 Gas engine (OBSOLETE) Call for price 1 (before SN 002100) usually ships 5-16 days
11b 675-9181 ENGINE, GAS [KUBOTA WG972 2011] (Tennant Industrial) $15,195.66 1 (after SN 002099) usually ships 5-16 days
11c 675-9253 ENGINE, GAS [KU WG972 CALIFORNIA ONLY] (Tennant Industrial) $15,013.30 1 (after SN 002099) (california only) usually ships 5-16 days
11d 675-9160 ENGINE, LPG [KUBOTA DF972] (Tennant Industrial) $13,648.58 1 (before SN 002100) usually ships 5-16 days
11e 675-9197 ENGINE, LPG [KUBOTA WG972 2011] (Tennant Industrial) $16,469.54 1 (after SN 002099) usually ships 5-16 days
11f 675-9247 ENGINE, LPG [KU WG972 CALIFORNIA ONLY] (Tennant Industrial) $14,228.40 1 (after SN 002099) (california only) usually ships 5-16 days
12 675-0982 SHEAVE, DRIVE, GAS/LPG [S20] (Tennant Industrial) $189.55 1 usually ships 5-16 days
13 375-3480 Thermostat switch (Tennant Industrial) $194.56 1 usually ships 5-16 days
14 575-1094 PANEL, SHIELD, HEAT, ALTERNATOR (Tennant Industrial) $17.37 1 usually ships 5-16 days
15 275-3036 SCREW, HEX, M8 X 1.25 X 40, 8.8, FL (Tennant Industrial) $6.01 1 usually ships 1-5 days
16 575-8885 FITTING, HYD, E90, METRIC, SPCL (Tennant Industrial) $113.89 1 usually ships 5-16 days
17 175-6815 Screw M10 x 1 1/4 x 20 hex $2.42 8 usually ships 1-5 days
18 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 4 ships same day
19 575-3574 SPACER, FAN [DF972] (Tennant Industrial) $33.57 1 usually ships 5-16 days
20 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
21 175-6824 Screw M12-1 3/4 x 60mm hex $3.96 2 usually ships 1-5 days
22 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
23 999-0032 Washer 3/8 USS flat plain finish $2.42 8 ships same day
24 175-6758 Screw M6-1 x 30mm hex head $3.19 4 usually ships 5-16 days
25a 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 3 (before SN 002100) ships same day
25b 175-0574 Bolt 6mm-1 x 35 hex head $3.30 3 (after SN 002099) usually ships 5-16 days
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 3 ships same day
27 475-7578 CLIP, GRIP, PIPE, 0.75, PLSTC (Tennant Industrial) $2.34 1 usually ships 5-16 days
28 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 1 ships same day
29 175-5310 Screw 4 x 45/64 x 16 pan head $3.19 1 usually ships 1-5 days
30 175-2332 Spacer $4.62 2 ships same day
31 175-0634 Bolt M8-1 1/4 x 35mm hex head $3.30 2 usually ships 1-5 days
32 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
33 475-7721 CAP, DUST, IGNITION MODULE (Tennant Industrial) $2.51 1 usually ships 5-16 days
34 675-1205 FAN, COOLING, 11.8D, 8 BLADE, 1.6D BC (Tennant Industrial) $201.07 1 (after SN 002099) usually ships 5-16 days
35 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
36 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
