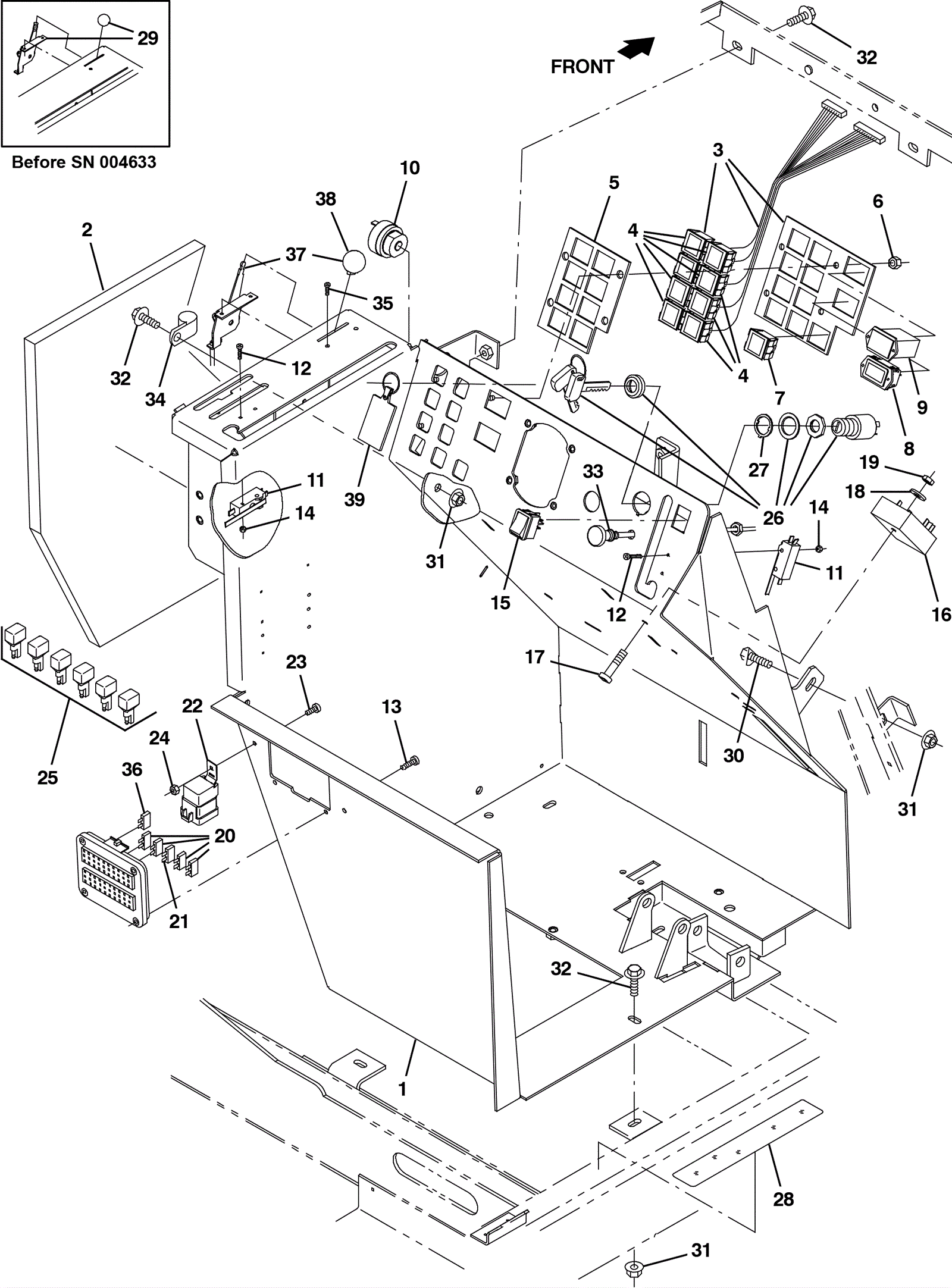

S20 Operator Station Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-7442 PANEL, OPRTR STATION, W/ LABEL, NA[S20 ] (Tennant Industrial $1,694.88 1 usually ships 5-16 days
2 575-5554 INSULATION, ACSTC, 0.8, 19.9 X 18.0 CHAM (Tennant Industrial $60.45 1 usually ships 5-16 days
3 675-1679 PANEL ASSY, INDICATOR LIGHTS, IC (Tennant Industrial) $250.67 1 (includes 4) usually ships 5-16 days
4 175-5962 LIGHT, PANL, 14VDC, 1.1 X 1.0 (Tennant Industrial) $32.73 8 usually ships 1-5 days
5 475-8891 SEAL, RBR, CLSD, 0.38, INSTMT PANL (Tennant Industrial) $6.01 1 usually ships 5-16 days
6 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
7 175-5962 LIGHT, PANL, 14VDC, 1.1 X 1.0 (Tennant Industrial) $32.73 1 usually ships 1-5 days
8 275-6915 Hourmeter gauge $48.40 1 usually ships 5-16 days
9 575-9465 GAUGE, FUEL (Tennant Industrial) $136.61 1 usually ships 5-16 days
10 175-0567 ALARM, AUDIO, 10-48VDC [MALLORY] (Tennant Industrial) $121.41 1 usually ships 1-5 days
11 175-0337 Snap switch $34.76 2 ships same day
12 475-8060 SCREW, PAN, PHL, M3 X 0.5 X 25, BLK (Tennant Industrial) $3.67 4 usually ships 5-16 days
13 475-7635 SCREW, PAN, PHL, 10-32 X 0.50, G2, BLK (Tennant Industrial) $2.17 2 usually ships 5-16 days
14 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 4 ships same day
15 575-1899 SWITCH, ROCKER, 3 POSITION (Tennant Industrial) $21.88 1 usually ships 5-16 days
16 675-0932 TIMER, 12VDC, 10A, 2S [CE SEAT SWITCH] (Tennant Industrial) $207.25 1 usually ships 5-16 days
17 999-1325 Screw M6-1 x 40mm pan head stainless steel $2.84 1 ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
19 999-0439 Nut M6-1 hex coarse thread $0.99 1 ships same day
20 475-8731 FUSE, BLADE, 015A, 32VDC [MINI] (Tennant Industrial) $5.01 4 usually ships 5-16 days
21 475-8057 FUSE, BLADE, 020A, 32VDC [MINI] (Tennant Industrial) $3.67 1 usually ships 5-16 days
22 175-5970 RELAY, 12VDC, 040A, SPDT NO (Tennant Industrial) $16.87 1 usually ships 1-5 days
23 275-2618 Screw M5-1 x 16mm hex head black (Tennant Industrial) $2.17 1 usually ships 1-5 days
24 175-2894 Nut M5-.8 hex nylon locking $2.42 1 usually ships 5-16 days
25 175-2216 Diode plug $12.87 6 ships same day
26a 175-3214 Key switch $85.36 1 (includes 26b) usually ships 5-16 days
26b 175-3215 Key (sold individually) $13.97 1 ships same day
27 175-3216 Washer $17.16 1 usually ships 1-5 days
28 475-8859 TREAD, NON-SKID, 01.4W 12.0L (Tennant Industrial) $5.01 1 usually ships 5-16 days
29 375-9042 Control cable with handle (OBSOLETE) Call for price 1 (before SN 004633) usually ships 5-16 days
30 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
31 999-0665 Nut M8-1.25 flange lock $0.99 5 ships same day
32 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $3.67 6 ships same day
33a 375-3769 Cable choke assembly (Tennant Industrial) $129.43 1 (before SN 002100) usually ships 5-16 days
33b 675-1814 CABLE, CNTRL, CHOKE, 72.0L, KNOB (Tennant Industrial) $236.64 1 (after SN 002099) usually ships 5-16 days
34 175-9979 Clamp (Tennant Industrial) $7.35 2 usually ships 1-5 days
35 475-8748 SCREW, PAN, PHL, 10-16 X .75, BLK (Tennant Industrial) $4.84 2 usually ships 5-16 days
36 475-8731 FUSE, BLADE, 015A, 32VDC [MINI] (Tennant Industrial) $5.01 1 usually ships 5-16 days
37 575-3944 CABLE, CNTRL, 46.3L, W/ HANDLE (Tennant Industrial) $38.08 1 (after SN 004634) usually ships 5-16 days
38 475-8754 KNOB, CABLE LEVER, THROTTLE (Tennant Industrial) $5.01 1 (after SN 004634) usually ships 5-16 days
39 375-3414 Keychain (Tennant Industrial) $6.85 1 usually ships 5-16 days
