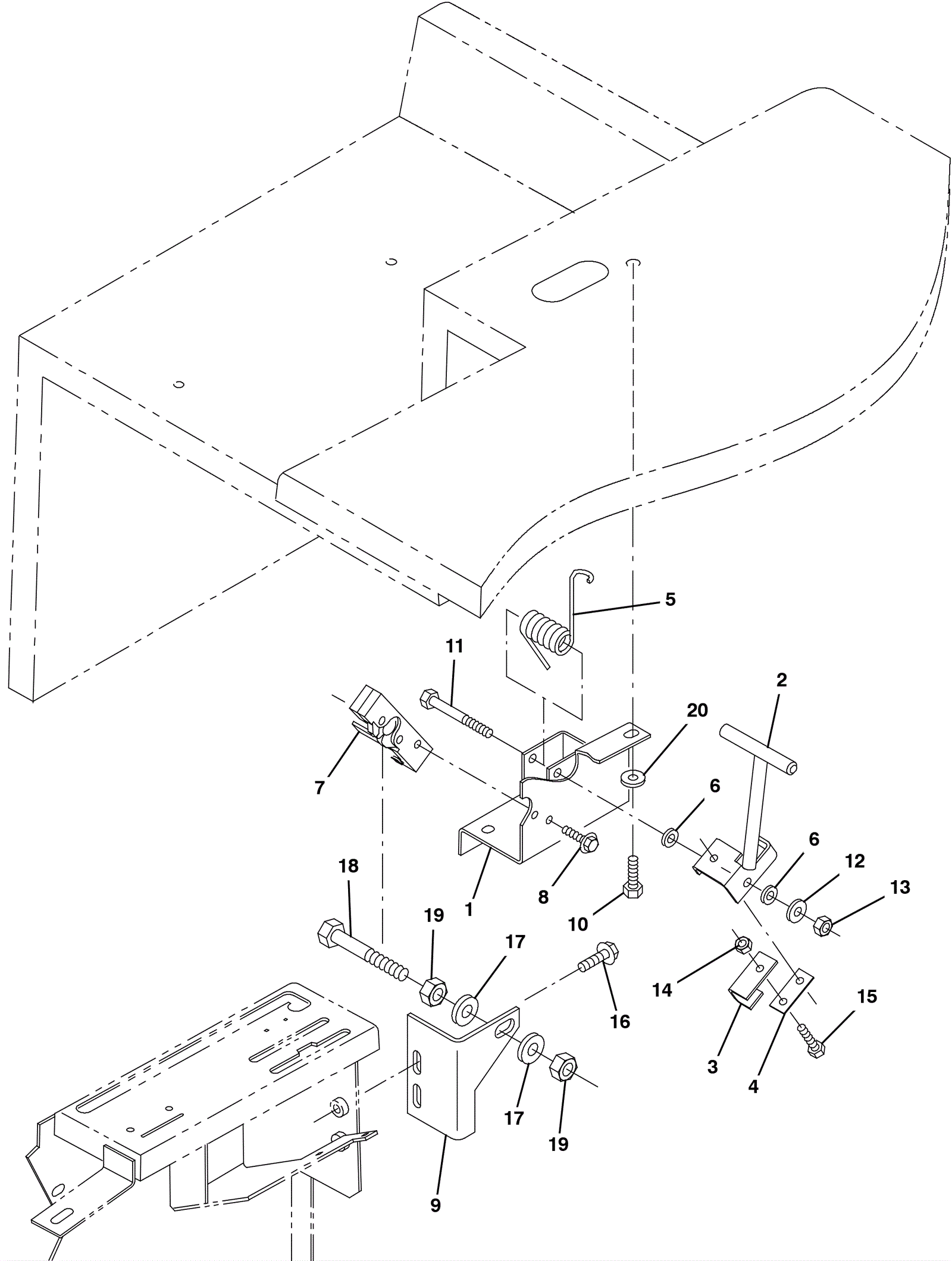

S20 Rear Cover Latch Assembly - Before SN 002465

#PartDescriptionPriceReqNotesAvailability
1 575-5696 BRACKET WLDT, LATCH (Tennant Industrial) $64.96 1 usually ships 5-16 days
2 575-7483 HANDLE WLDT, LATCH, SHRD (Tennant Industrial) $95.52 1 usually ships 5-16 days
3 575-0936 CHANNEL, LATCH (Tennant Industrial) $16.70 1 usually ships 5-16 days
4 575-2405 SPRING, FLAT, .06, 0.75W X 01.8L, 2/.28H (Tennant Industrial $31.73 1 usually ships 5-16 days
5 575-4015 SPRING, TORS, 0.81ID .12WIR 08.0COIL (Tennant Industrial) $49.27 1 usually ships 5-16 days
6 175-2289 Washer $3.30 2 usually ships 5-16 days
7 275-8657 LATCH (Tennant Industrial) $105.88 1 usually ships 1-5 days
8 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
9 575-2475 BRACKET, ANGLE, MTG, PIN, LATCH (Tennant Industrial) $28.22 1 usually ships 5-16 days
10 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
11 475-8851 SCREW, HEX, .31-18 X 2.25, G5 (Tennant Industrial) $5.68 1 usually ships 5-16 days
12 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
13 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
14 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
15 175-5113 Bolt M6 x 12mm hex head $2.42 2 usually ships 1-5 days
16 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $3.67 2 ships same day
17 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
18 475-9325 SCREW, HEX, .50-13 X 2.50, G5 (Tennant Industrial) $8.35 1 usually ships 5-16 days
19 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
20 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
