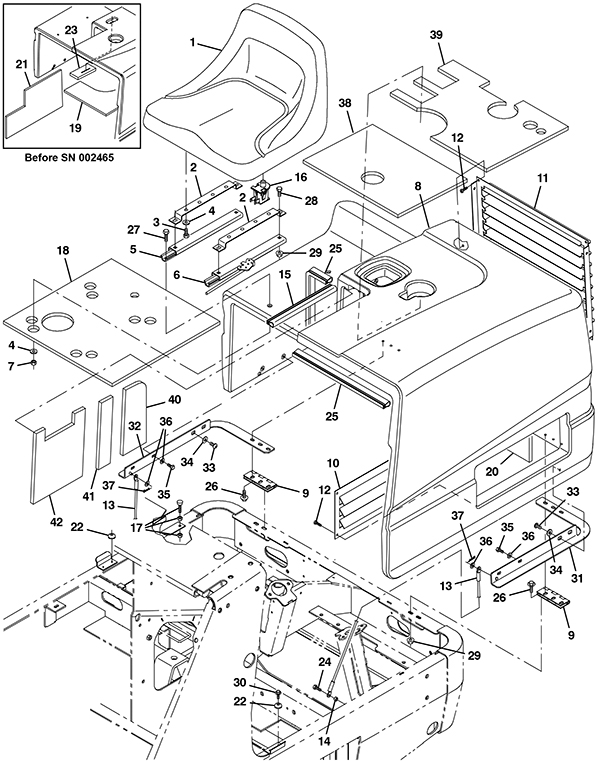

S20 Seat and Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-6562 Seat kit (Tennant Industrial) $334.90 1 (before SN 003441) usually ships 1-5 days
1b 275-6563 Seat kit $236.28 1 (after SN 003440) usually ships 1-5 days
2a 375-1311 Seat bracket (TENNANT INDUSTRIAL) $139.19 2 (before SN 003441) usually ships 1-5 days
2b 675-9891 Spacer $5.50 4 (after SN 003440) ships same day
3a 175-6870 SCREW, HEX, .31-18 X 0.62, G5 (Tennant Industrial) $5.50 4 (before SN 003441) usually ships 1-5 days
3b 999-0814 Screw 5/16-18 x 1 1/2 pan head phillips zinc plated $0.99 4 (after SN 003440) ships same day
4a 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 (before SN 003441) ships same day
4b 999-0024 Washer 5/16 flat stainless steel $1.34 4 (after SN 003440) usually ships 12-18 days
5 575-2872 TRACK, SLIDE, SEAT ADJ, 12.5L (Tennant Industrial) $22.55 1 usually ships 10-16 days
6 575-4211 TRACK, SLIDE, SEAT ADJ, 12.5L, W/ LATCH (Tennant Industrial) $45.01 1 usually ships 10-16 days
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
8a 675-6252 SHROUD, REAR, TRIMMED (Tennant Industrial) $1,080.22 1 (before SN 002465) usually ships 10-16 days
8b 675-5991 SHROUD, REAR [S20] (Tennant Industrial) $982.53 1 (after SN 002464) usually ships 10-16 days
9 575-5089 HINGE, .25PIN .12 3.0W 04.5L, 6/0.38SL (Tennant Industrial) $55.34 2 usually ships 10-16 days
10 575-7517 PANEL, LOUVER (Tennant Industrial) $100.85 1 usually ships 10-16 days
11 675-0357 PANEL, LOUVER (Tennant Industrial) $190.04 1 usually ships 10-16 days
12 175-3223 Screw 12-16 x 1/2 pan head plastic $5.28 8 usually ships 1-5 days
13 575-0489 CABLE, GLV .13D 024.2L .25EYE /.25EYE (Tennant Industrial) $13.84 2 usually ships 10-16 days
14 175-2263 Sleeve $4.22 2 usually ships 10-16 days
15 275-7429 SEAL, BULB (Tennant Industrial) $65.01 1 usually ships 1-5 days
16 275-9280 Seat switch $11.11 1 usually ships 10-16 days
17 275-2965 SPINDLE, ADJUSTMENT (Tennant Industrial) $13.34 1 usually ships 1-5 days
18 575-6744 INSULATION, ACSTC, 0.5, 21.4 X 20.6 C-O (Tennant Industrial) $85.18 1 usually ships 10-16 days
19 575-6955 INSULATION, ACSTC, 0.5, 32.0 X 21.6 NTCH (Tennant Industrial $106.35 1 (before SN 002465) usually ships 10-16 days
20 575-3684 INSULATION, ACSTC, 0.5, 31.6 X 14.1 NTCH (Tennant Industrial $42.34 1 usually ships 10-16 days
21a 575-3992 INSULATION, ACSTC, 0.5, 21.5 X 12.2 NTCH (Tennant Industrial $53.84 1 (before SN 002465) usually ships 10-16 days
21b 475-9009 INSULATION, ACSTC, 0.5, 4.4 X 11.0 ADH (Tennant Industrial) $6.67 1 (after SN 003440) usually ships 10-16 days
22 275-1382 BUMPER, RBR, 0.90D 0.38TH 0.18H (Tennant Industrial) $7.17 2 usually ships 10-16 days
23a 575-0008 INSULATION, ACSTC, 0.8, 06.6 X 03.0 SLIT (Tennant Industrial $14.34 1 (before SN 002465) usually ships 10-16 days
23b 475-7962 INSULATION, ACSTC, 0.5, 2.3 X 11.1 ADH (Tennant Industrial) $4.17 1 (after SN 003440) usually ships 10-16 days
24 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
25 N/A Not available Call for price 1 (Seal bulb) usually ships 3-26 days
26 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $4.17 8 ships same day
27 175-0634 Bolt M8-1 1/4 x 35mm hex head $4.49 4 usually ships 1-5 days
28 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 (before SN 003440) ships same day
29 999-0665 Nut M8-1.25 flange lock $0.99 8 ships same day
30 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 2 ships same day
31 575-5592 PLATE WLDT, LH (Tennant Industrial) $69.18 1 usually ships 10-16 days
32 575-5671 PLATE WLDT, RH (Tennant Industrial) $70.68 1 usually ships 10-16 days
33 275-2235 SCREW, BTN, M8 X 1.25 X 16, SS (Tennant Industrial) $10.84 4 usually ships 1-5 days
34 999-0024 Washer 5/16 flat stainless steel $1.34 4 usually ships 12-18 days
35 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 6 ships same day
36 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
37 175-7107 Cotter hair pin $3.30 2 usually ships 10-16 days
38 575-1373 INSULATION, ACSTC, 0.5, 13.0 X 17.8 HOLE (Tennant Industrial $21.50 1 usually ships 10-16 days
39 575-3235 INSULATION, ACSTC, 0.5, 15.4 X 21.6 NTCH (Tennant Industrial $38.01 1 usually ships 10-16 days
40 475-9009 INSULATION, ACSTC, 0.5, 4.4 X 11.0 ADH (Tennant Industrial) $6.67 1 (from SN 1068103 and 003440) usually ships 10-16 days
41 475-7962 INSULATION, ACSTC, 0.5, 2.3 X 11.1 ADH (Tennant Industrial) $4.17 1 (from SN 1068103 and 003440) usually ships 10-16 days
42 575-0166 INSULATION, ACSTC, 0.5, 9.2 X 11.7 NTCH (Tennant Industrial) $12.50 1 (from SN 1068103 and 003440) usually ships 10-16 days
N/S 575-0060 HARNESS, WIRE, SEAT [S20] (Tennant Industrial) $12.17 1 (after SN 003440) usually ships 10-16 days
