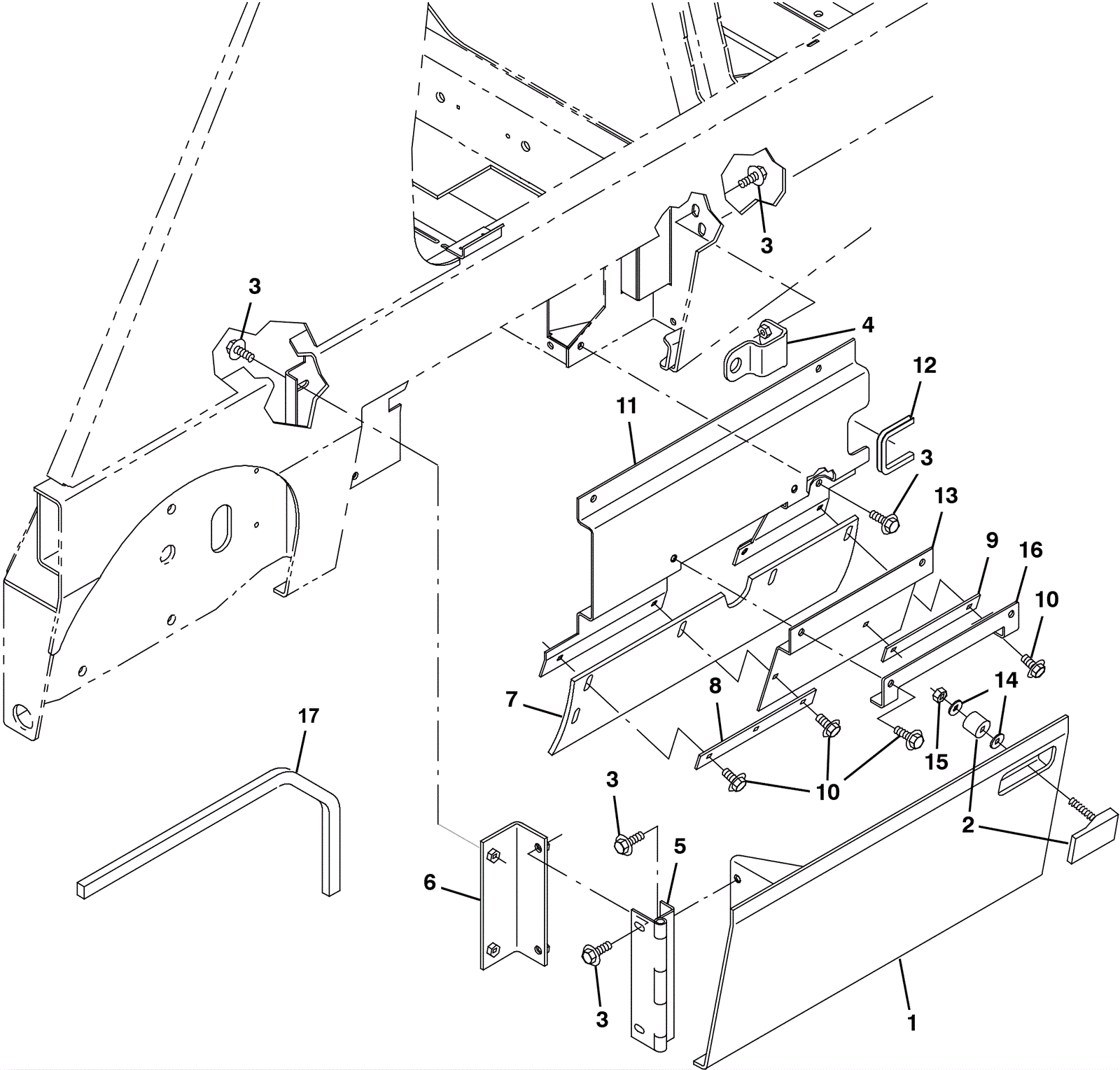

S20 Brush Door Assembly

#PartDescriptionPriceReqNotesAvailability
1a 675-2497 DOOR WLDT, BRUSH, LH (Tennant Industrial) $332.40 1 usually ships 10-16 days
1b 675-2870 DOOR WLDT, BRUSH, RH (Tennant Industrial) $368.41 1 usually ships 10-16 days
2 275-9822 Swell latch $22.77 2 usually ships 10-16 days
3a 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $4.17 12 (left hand door) ships same day
3b 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 12 (right hand door) usually ships 10-16 days
4 575-3069 BRACKET, STOP, BRUSH DOOR (Tennant Industrial) $37.67 2 usually ships 10-16 days
5 575-6572 HINGE, .38PIN .12 3.5W 07.8L, 4/0.38H (Tennant Industrial) $76.35 2 usually ships 10-16 days
6 575-5025 BRACKET, HINGE, DOOR (Tennant Industrial) $60.85 2 usually ships 10-16 days
7 575-6453 SEAL (Tennant Industrial) $80.02 1 (left hand door) usually ships 10-16 days
8 575-0956 RETAINER, SKIRT, .12, 1.0W X 08.1L, PL (Tennant Industrial) $18.34 1 (left hand door) usually ships 10-16 days
9 575-1156 STRIP, RETAINER, SEAL (Tennant Industrial) $20.00 1 (left hand door) usually ships 10-16 days
10 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 12 usually ships 10-16 days
11 575-8685 PLATE, SEAL, HYD DRIVE (Tennant Industrial) $133.36 1 (left hand door) usually ships 10-16 days
12 575-0684 MOLDING, TRIM, PVC, .08-.11 05.0L (Tennant Industrial) $16.34 1 (left hand door) usually ships 10-16 days
13 575-1849 SEAL, DUST (Tennant Industrial) $25.34 1 (left hand door) usually ships 10-16 days
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
15 999-0296 Nut 5/16-24 nylon insert lock stainless steel $0.99 2 ships same day
16 575-1756 STRIP, RETAINER, SEAL (Tennant Industrial) $24.84 1 (left hand door) usually ships 10-16 days
17 575-6393 SEAL, RBR, OPEN, 0.38, 1.25W 25.5L (Tennant Industrial) $94.85 1 (right hand door) usually ships 10-16 days
N/S 575-6021 SEAL (Tennant Industrial) $72.35 1 (right hand door) usually ships 10-16 days
N/S 575-0577 RETAINER, SKIRT, .12, 1.0W X 19.3L, PL (Tennant Industrial) $15.17 1 (right hand door) usually ships 10-16 days
N/S 575-3642 SEAL, AFMKT, BULB, STR, .50D F/11GA 01FT (Tennant Industrial $41.68 4 (right hand door) usually ships 10-16 days
