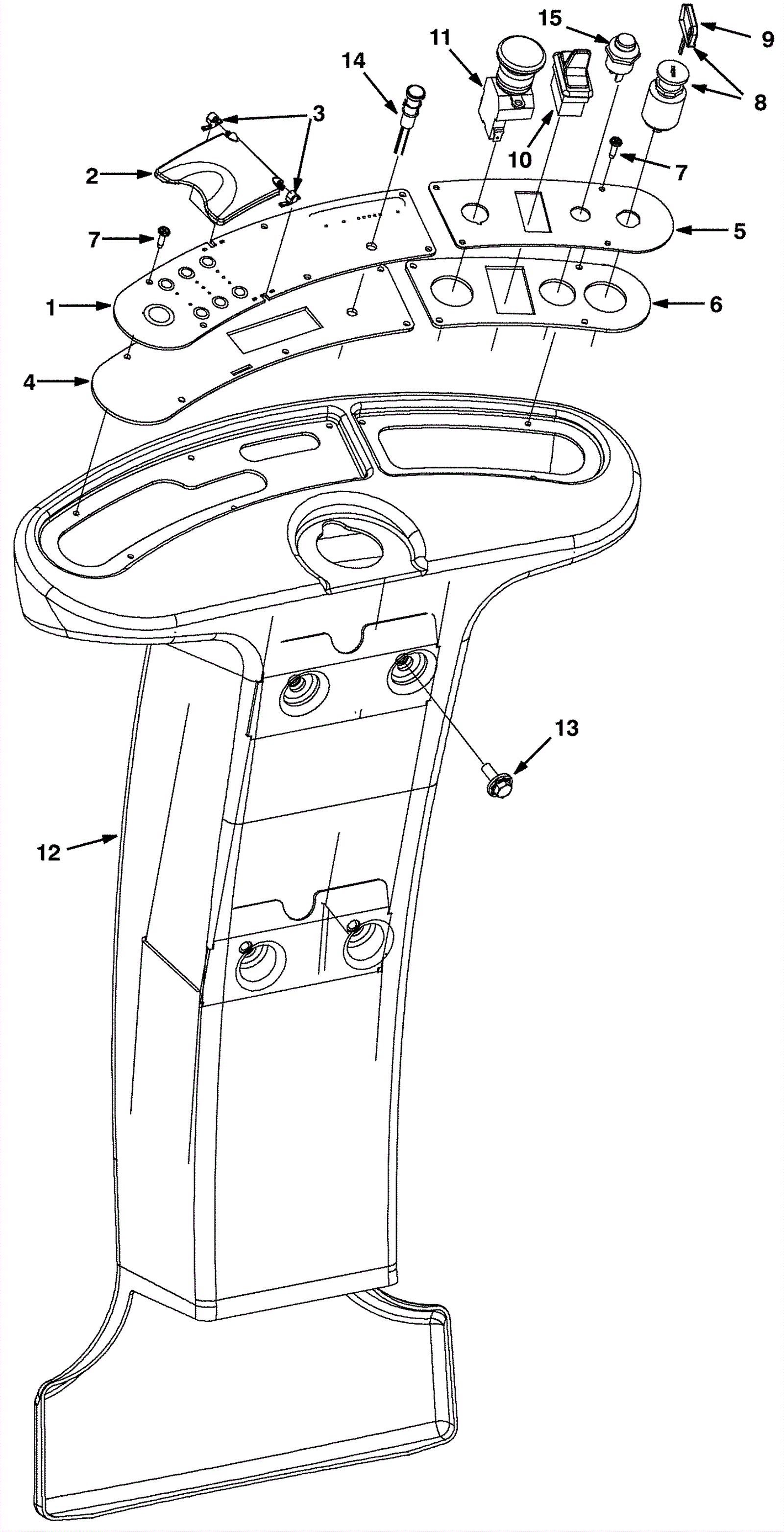

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-8082
|
Left instrument panel |
1 |
|
|
1b |
375-6011
|
Left hand intrument panel |
1 |
(ec-H2O) |
|
2 |
275-8083
|
Instrument panel cover |
1 |
|
|
3 |
275-8084
|
Pivot block |
2 |
|
|
4 |
275-9348
|
Left hand panel gasket |
1 |
|
|
5a |
275-9349
|
Right hand instrument panel |
1 |
(after SN 10403818) |
|
5b |
275-8088
|
Key switch kit |
1 |
(before SN 10403819) |
|
6 |
275-8087
|
Right hand panel gasket |
1 |
|
|
7 |
275-1411
|
Plastic rivet |
10 |
|
|
8a |
175-7872
|
Key switch with 2 keys |
1 |
(includes 9a) (after SN 10403818) |
|
8b |
275-8088
|
Key switch kit |
1 |
(includes 9b) (before SN 10403819) |
|
9a |
991-1634
|
Key (pkg of 2) |
1 |
(after SN 10403818) |
|
9b |
175-3215
|
Key (sold individually) |
1 |
(before SN 10403819) |
|
10 |
275-7033
|
Rocker switch |
1 |
|
|
11 |
275-1416
|
Safety shut-off switch |
1 |
|
|
12a |
275-8090
|
Steering column with decal (teal) |
1 |
|
|
12b |
275-9351
|
Steering column with decal (gray) |
1 |
|
|
12c |
275-9352
|
Steering column (teal) |
1 |
(ec-H2O) |
|
12d |
275-9353
|
Steering column (gray) |
1 |
(ec-H2O) |
|
13 |
999-9082
|
Screw M8-1.25 x 25mm hex head stainless steel |
4 |
|
|
14 |
275-4715
|
LED light |
1 |
|
|
15 |
275-9354
|
Horn switch |
1 |
|
|
