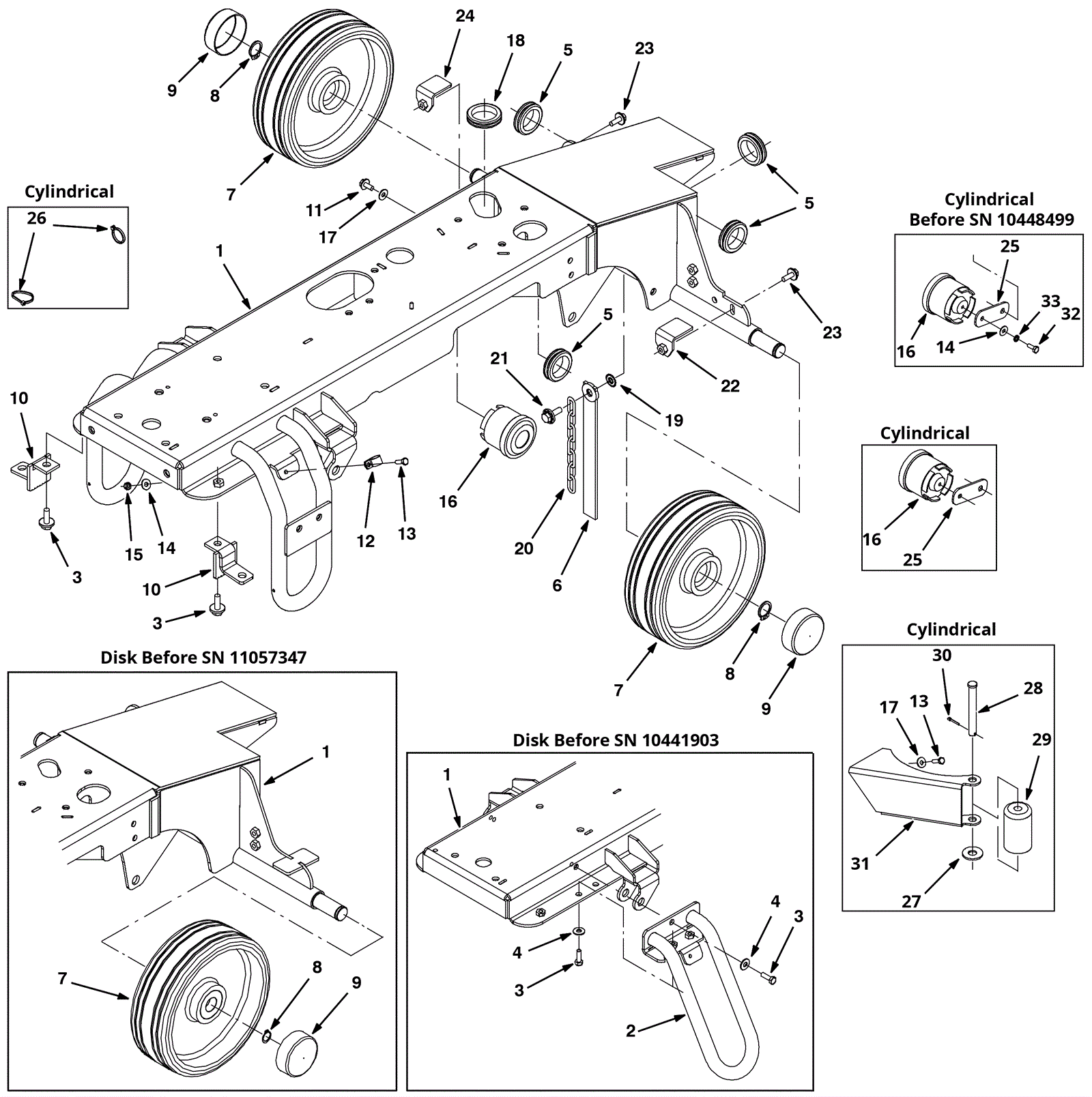

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
N/A
|
Not available |
1 |
(frame weldment) (disk) (after SN 11057346) |
|
1b |
275-4961
|
Frame weldment |
1 |
(disk) (before SN 11057347) (replaced by 1a and qty 2 of 8a) |
|
1c |
N/A
|
Not available |
1 |
(frame weldment) (disk) (before SN 10441903) (replaced by 1a, qty 2 of 3a and 8a, and qty 1 of 22 and 24) |
|
1d |
275-9259
|
Frame weldment |
1 |
(cylindrical) (after SN 11057346) |
|
1e |
275-9262
|
Frame weldment (OBSOLETE) |
1 |
(cylindrical) (before SN 11057347) (replaced by 1d and qty 2 of 8a) |
|
2 |
N/A
|
Not available |
2 |
(stabilizer weldment) (disk) (before SN 10441903) (replaced by 1b) |
|
3a |
999-9082
|
Screw M8-1.25 x 25mm hex head stainless steel |
2 |
(disk) (after SN 10441902) |
|
3b |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
9 |
(disk) (before SN 10441903) |
|
4 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
(disk) (after SN 10441902) (qty 7 before SN 10441903) |
|
5 |
175-2366
|
Rubber grommet |
4 |
|
|
6a |
275-8058
|
Static strap |
1 |
(disk) (cylindrical after SN 10448498) |
|
6b |
275-9261
|
Static strip with grommet |
1 |
(cylindrical before SN 10448499) |
|
7 |
275-8059
|
Tire assembly |
2 |
|
|
8a |
375-2563
|
Retaining ring |
2 |
(disk after SN 11057346) (cylindrical after SN 10448498) |
|
8b |
175-3294
|
Retaining ring |
2 |
(before SN 11057347) (for use with 1b and 1c) |
|
9 |
275-8060
|
Cap |
2 |
|
|
10 |
275-8061
|
Jack stand bracket weldment |
2 |
(disk) |
|
11 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
1 |
(disk) (cylindrical after SN 10448498) |
|
12a |
175-2667
|
P clamp |
1 |
(disk after SN 10518138) (cylindrical after SN 10448498) |
|
13 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
14 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
15 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
16 |
275-8062
|
Horn |
1 |
|
|
17 |
175-4544
|
Washer M6 locking |
1 |
|
|
18 |
275-7016
|
Rubber grommet |
1 |
(disk) |
|
19 |
175-2893
|
Washer 5/16 internal/external locking |
1 |
(disk) (cylindrical after SN 10448498) |
|
20 |
175-2094
|
Chain |
1 |
(disk) (cylindrical after SN 10448498) |
|
21 |
999-1653
|
Screw M8-1.25 x 30mm hex head stainless steel |
1 |
(disk) (cylindrical after SN 10448498) |
|
22 |
375-7742
|
Tank mount bracket (Tennant Industrial) |
1 |
(disk) (after SN 11057346) |
|
23 |
999-9082
|
Screw M8-1.25 x 25mm hex head stainless steel |
2 |
(disk) (after SN 11057346) |
|
24 |
375-6010
|
Tank mounting bracket (Tennant Industrial) |
1 |
(disk) (after SN 11057346) |
|
25 |
275-9260
|
Horn mounting plate |
1 |
(cylindrical) |
|
26 |
175-2202
|
Nylon wire tie |
4 |
(cylindrical) |
|
27 |
999-0114
|
Washer 1/2 SAE flat |
2 |
(cylindrical) (32 in) |
|
28 |
275-8369
|
PIN, CLEVIS, 0.50D X 4.00L (Tennant Industrial) |
2 |
(cylindrical) (32 in) (after SN 10448498) |
|
29 |
175-2512
|
Bumper roller |
2 |
(cylindrical) (32 in) |
|
30 |
175-2040
|
Cotter pin |
2 |
(cylindrical) (32 in) |
|
31a |
275-9323
|
Left guard bracket |
1 |
(cylindrical) (32 in) |
|
31b |
275-9324
|
Right guard bracket |
1 |
(cylindrical) (32 in) |
|
32 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
(cylindrical) (before SN 10448499) |
|
33 |
175-4544
|
Washer M6 locking |
1 |
(cylindrical) (before SN 10448499) |
|
N/S |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
7 |
(cylindrical) (before SN 10448499) |
|
N/S |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
7 |
(cylindrical) (before SN 10448499) |
|
