| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-6910
|

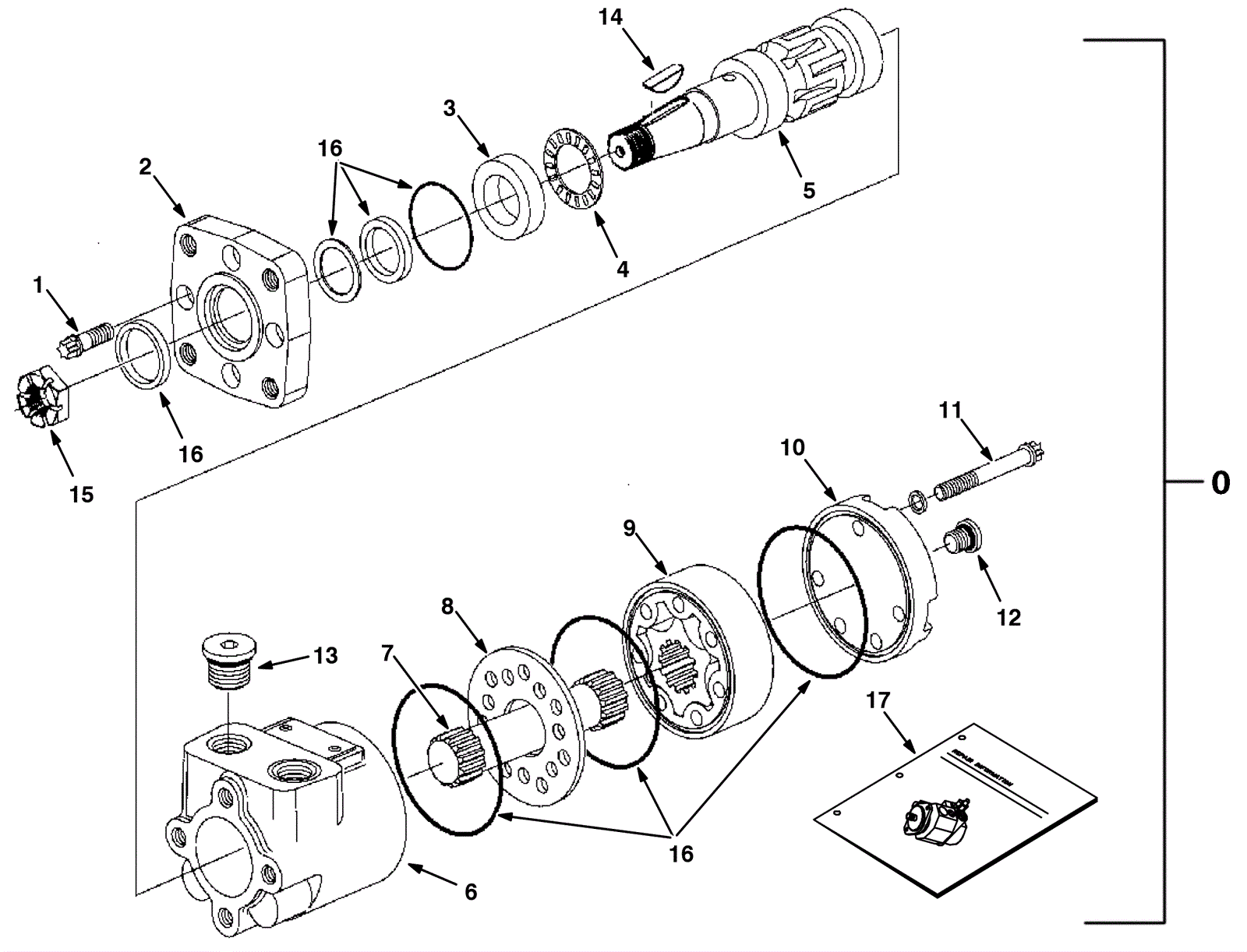

MOTOR, HYD, GEAR, INT 03.6 BI-DIR 1500 (Tennant Industrial) |
1 |
(includes 1-17) |
|
1 |
175-8249
|
Screw |
4 |
|
|
2 |
175-8243
|
VR, FLANGE, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
3 |
175-8246
|
Thrust race |
1 |
|
|
4 |
175-8245
|
Bearing thrust |
1 |
|
|
5 |
675-4301
|
VR, SHAFT, OUTPUT, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
6 |
175-8250
|
VR, HOUSING, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
7 |
575-6779
|
VR, DRIVE, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
8 |
175-8251
|
Spacer plate (Tennant Industrial) |
1 |
|
|
9 |
375-6148
|
Gerotor set (OBSOLETE) |
1 |
|
|
10 |
275-4064
|
VR, END CAP, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
11 |
275-4094
|
VR, SCREW, CAP, MOTOR, HYD [EN] (Tennant Industrial) |
5 |
|
|
12 |
175-8232
|
O - Ring plug |
1 |
|
|
13 |
275-4065
|
FITTING, HYD, PLUG, OM20 (Tennant Industrial) |
2 |
|
|
14 |
175-6746
|
Woodruff key |
1 |
|
|
15 |
275-4066
|
NUT, HEX, SLTD, .75-16 (Tennant Industrial) |
1 |
|
|
16 |
575-9614
|
VR, SEAL KIT [CL] (Tennant Industrial) |
1 |
|
|
17 |
175-8254
|
VR, INSTR, MOTOR, HYD, REPAIR [EN] (Tennant Industrial) |
1 |
|
|
