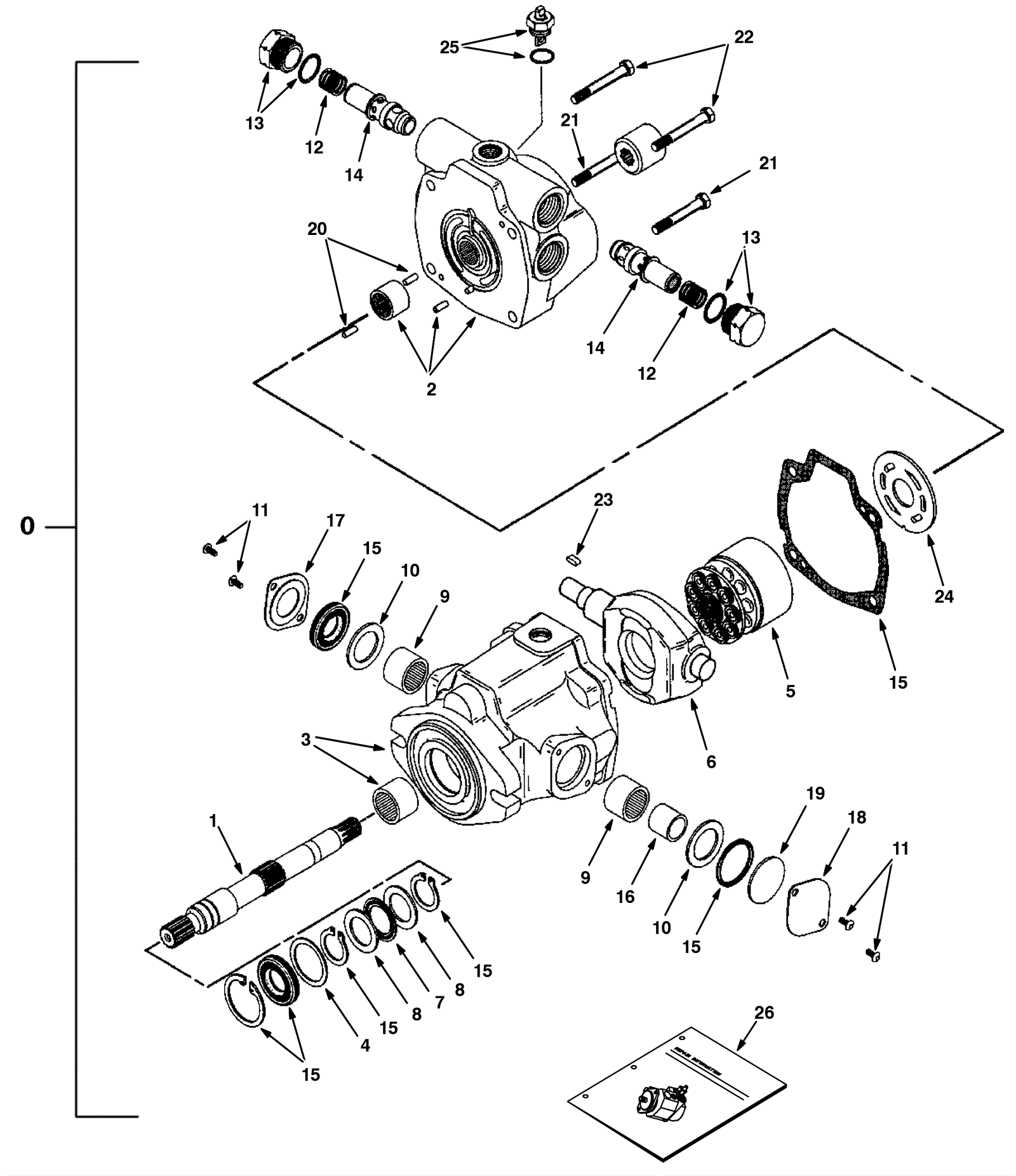

Hydraulic Piston Pump Assembly - 364103

#PartDescription ReqNotesAvailability
0 675-8341 PUMP, HYD, PISTON, VAR, 1.24 2750, CW (Tennant Industrial) 1 (includes 1-26)
1 175-8164 VR, SHAFT, DRIVE, PUMP, HYD [CESSNA] (Tennant Industrial) 1
2 675-6706 VR, PLATE, BACK, PUMP, HYD [CESSNA] (Tennant Industrial) 1
3 675-5688 VR, HOUSING ASSY, PUMP, HYD [CESSNA] (Tennant Industrial) 1
4 175-8169 VR, WASHER, FLAT, PUMP, HYD (Tennant Industrial) 1
5 175-8167 VR, ROTATING KIT, PISTON, PUMP, HYD (Tennant Industrial) 1
6 275-4011 VR, CAM, PUMP, HYD [CESSNA] (Tennant Industrial) 1
7 175-8172 VR, BEARING, THRUST, PUMP, HYD (Tennant Industrial) 1
8 175-8173 VR, RACE, BRG, PUMP, HYD (Tennant Industrial) 2
9 275-4012 VR, BEARING, CAM (Tennant Industrial) 2
10 275-4013 VR, WASHER, PUMP, HYD [EN] (Tennant Industrial) 2
11 275-4014 VR, SCREW, PUMP, HYD [EN] (Tennant Industrial) 4
12 175-8178 VR, SPRING CMPR, PUMP, HYD (Tennant Industrial) 2
13 175-8179 VR, FITTING ASSY, PLUG, ORG (Tennant Industrial) 2
14 N/A Not available 2 (relief valve)
15 275-4016 VR, SEAL KIT, PUMP [CE] (Tennant Industrial) (OBSOLETE) 1
16 275-4017 VR, BEARING, RACE, INNER, HYD PUMP (Tennant Industrial) 1
17 275-4018 VR, COVER, PUMP, HYD [CESSNA] (Tennant Industrial) 1
18 275-4019 VR, COVER, TRUNION, PUMP, HYD [CESSNA] (Tennant Industrial) 1
19 275-4020 VR, COVER, 0RG (Tennant Industrial) 1
20 175-8186 VR, PIN, DOWEL, PUMP, HYD (Tennant Industrial) 2
21 375-6140 Cap screw (OBSOLETE) 2
22 375-6141 Cap screw (OBSOLETE) 2
23 175-8189 VR, KEY, SHAFT, PUMP, HYD (Tennant Industrial) 1
24 175-8190 VR, PLATE, VALVE, PUMP, HYD (Tennant Industrial) 1
25 275-4025 VR, VALVE, DUMP, PUMP, HYD [CESSNA] (Tennant Industrial) 1
26 275-4026 VR, LIT, REPAIR INFO, PUMP, F/74465 (Tennant Industrial) 1
