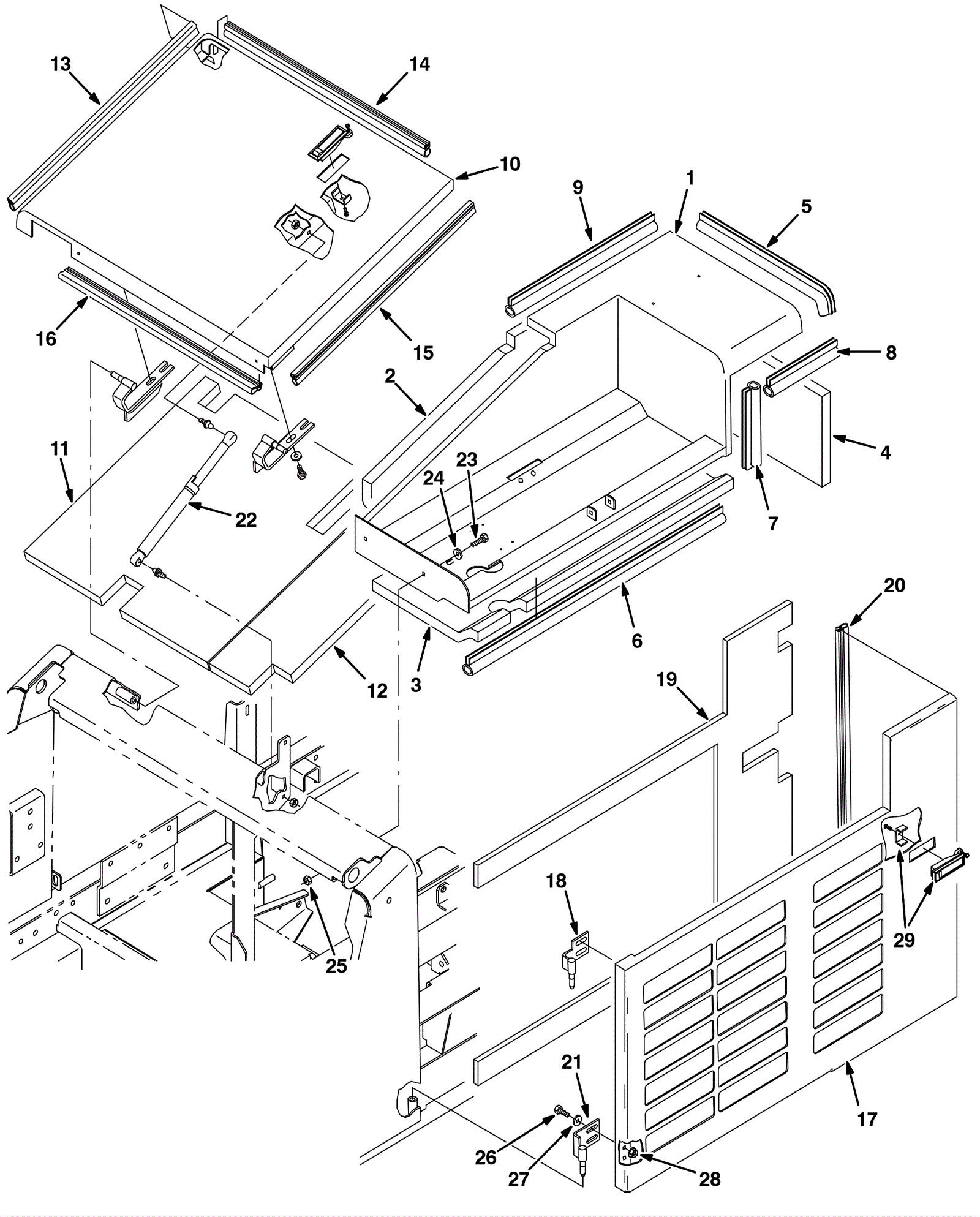

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-6123
|
Cover (OBSOLETE) |
1 |
|
|
2 |
375-6124
|
Side insulation (OBSOLETE) |
1 |
|
|
3 |
375-6125
|
Bottom insulation (OBSOLETE) |
1 |
|
|
4 |
575-0578
|
INSULATION, ACSTC, 1.0, 12.0 X 09.0 (Tennant Industrial) |
1 |
|
|
5 |
175-0623
|
SEAL, BULB, 90, 1.33 .06-.09GRIP 015.5L (Tennant Industrial |
1 |
|
|
6 |
275-7429
|
SEAL, BULB (Tennant Industrial) |
1 |
|
|
7 |
275-7429
|
SEAL, BULB (Tennant Industrial) |
1 |
|
|
8 |
275-7429
|
SEAL, BULB (Tennant Industrial) |
1 |
|
|
9 |
375-6126
|
Bulb seal (OBSOLETE) |
1 |
|
|
10 |
375-6127
|
Engine cover assembly (OBSOLETE) |
1 |
|
|
11 |
575-8450
|
INSULATION, ACSTC, 1.0, 22.8 x 22.0 NTCH (Tennant Industrial |
1 |
|
|
12 |
375-6128
|
Cover insulation (OBSOLETE) |
1 |
|
|
13 |
175-0623
|
SEAL, BULB, 90, 1.33 .06-.09GRIP 015.5L (Tennant Industrial |
1 |
|
|
14 |
375-6129
|
Bulb seal (OBSOLETE) |
1 |
|
|
15 |
175-0625
|
SEAL, BULB, STR, 0.58D .06-.09GRIP 12.5L (Tennant Industria |
1 |
|
|
16 |
175-0623
|
SEAL, BULB, 90, 1.33 .06-.09GRIP 015.5L (Tennant Industrial |
1 |
|
|
17 |
375-6130
|
Door assembly (OBSOLETE) |
1 |
|
|
18 |
375-6132
|
Hinge bracket assembly (OBSOLETE) |
1 |
|
|
19 |
575-6674
|
INSULATION, ACSTC, 0.5, 37.6 X 29.2 NTCH (Tennant Industrial |
1 |
|
|
20 |
375-6035
|
Bulb seal SD 504 29.0 (OBSOLETE) |
1 |
|
|
21 |
275-7446
|
BRACKET WLDT, HINGE (Tennant Industrial) |
1 |
|
|
22 |
675-1315
|
GASSPRING, 72LB, 6.2STRK (Tennant Industrial) |
1 |
|
|
23 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
24 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
25 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
26 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
4 |
|
|
27 |
999-1407
|
Washer 5/16 belleville |
4 |
|
|
28 |
999-0665
|
Nut M8-1.25 flange lock |
4 |
|
|
29 |
175-0541
|
LATCH, TRIGGER (Tennant Industrial) |
1 |
|
|
