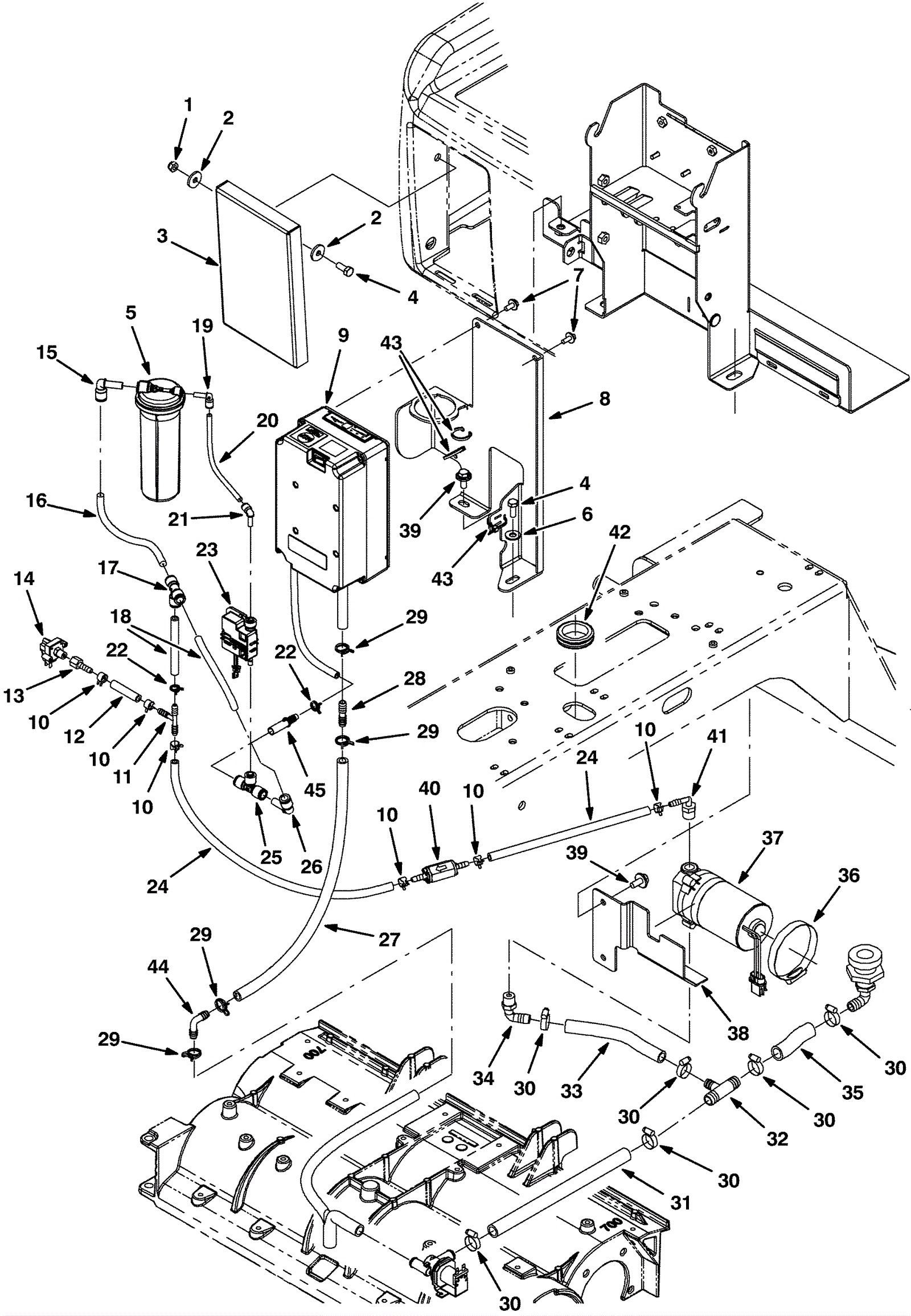

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
2 |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
3 |
275-4941
|
Cover |
1 |
|
|
4 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
3 |
|
|
5 |
375-0144
|
Nanoclean cartridge |
1 |
(after SN 10740597) |
|
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
7 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
8 |
375-4014
|
Module bracket |
1 |
(after SN 10740597) |
|
9 |
375-0142
|
ec-H2O module kit |
1 |
(after SN 10740597) |
|
10 |
175-1656
|
Hose clamp |
5 |
(after SN 10740597) |
|
11 |
175-7303
|
1/4 inch union tee |
1 |
|
|
12 |
175-6409
|
43 1/2 inch PVC hose |
1 |
|
|
13 |
175-3529
|
Brass fitting |
1 |
|
|
14 |
275-4944
|
Pressure switch |
1 |
|
|
15 |
375-0075
|
90 degree elbow |
1 |
(after SN 10740597) |
|
16 |
375-0143
|
Hose |
1 |
(after SN 10740597) |
|
17 |
375-0076
|
Plastic tee fitting |
1 |
(after SN 10740597) |
|
18 |
175-9691
|
Hose 1/4 x 1 foot (Tennant Industrial) |
1 |
(after SN 10740597) |
|
19 |
375-0079
|
90 degree elbow |
1 |
(after SN 10740597) |
|
20 |
375-0145
|
PVC hose |
1 |
(after SN 10740597) |
|
21 |
375-0079
|
90 degree elbow |
1 |
(after SN 10740597) |
|
22 |
175-5304
|
Hose clamp |
2 |
|
|
23 |
375-0146
|
Dispenser pump assembly |
1 |
(after SN 10740597) |
|
24 |
375-1137
|
Hose |
1 |
(after SN 10740597) |
|
25 |
375-0148
|
Plastic tee fitting |
1 |
(after SN 10740597) |
|
26 |
375-0075
|
90 degree elbow |
1 |
(after SN 10740597) |
|
27 |
275-1534
|
3 foot PVC hose (braided) (Tennant Industrial) |
1 |
(after SN 10740597) |
|
28 |
275-8703
|
Straight plastic fitting (Tennant Industrial) |
1 |
(after SN 10740597) |
|
29 |
175-3671
|
Hose clamp |
4 |
(after SN 10740597) |
|
30 |
175-6081
|
Hose clamp |
6 |
|
|
31 |
275-4940
|
3 foot PVC hose (Tennant Industrial) |
1 |
|
|
32 |
275-1455
|
Tee fitting |
1 |
|
|
33 |
275-4948
|
Hose (OBSOLETE) |
1 |
|
|
34 |
175-5241
|
90 degree elbow |
1 |
|
|
35 |
275-4949
|
PVC hose (OBSOLETE) |
1 |
|
|
36 |
997-2009
|
Hose clamp |
1 |
|
|
37a |
275-4753
|
24V solution pump |
1 |
(includes 37b-37f) |
|
37b |
275-4754
|
Solution head pump kit |
1 |
|
|
37c |
175-8753
|
Female connector |
1 |
|
|
37d |
175-8755
|
TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) |
1 |
|
|
37e |
175-8754
|
14/16 wire seal |
1 |
|
|
37f |
175-8756
|
Male and female secondary lock |
1 |
|
|
38 |
275-4937
|
Solution pump bracket |
1 |
|
|
39 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
3 |
|
|
40 |
375-1136
|
Check valve |
1 |
(after SN 10740597) |
|
41 |
275-2390
|
90 degree fitting |
1 |
(after SN 10740597) |
|
42 |
175-2366
|
Rubber grommet |
1 |
|
|
43 |
175-7795
|
Cable tie |
3 |
(after SN 10740597) |
|
44 |
175-8716
|
FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) |
1 |
(after SN 10740597) |
|
45 |
375-1138
|
Plastic fitting |
1 |
|
|
