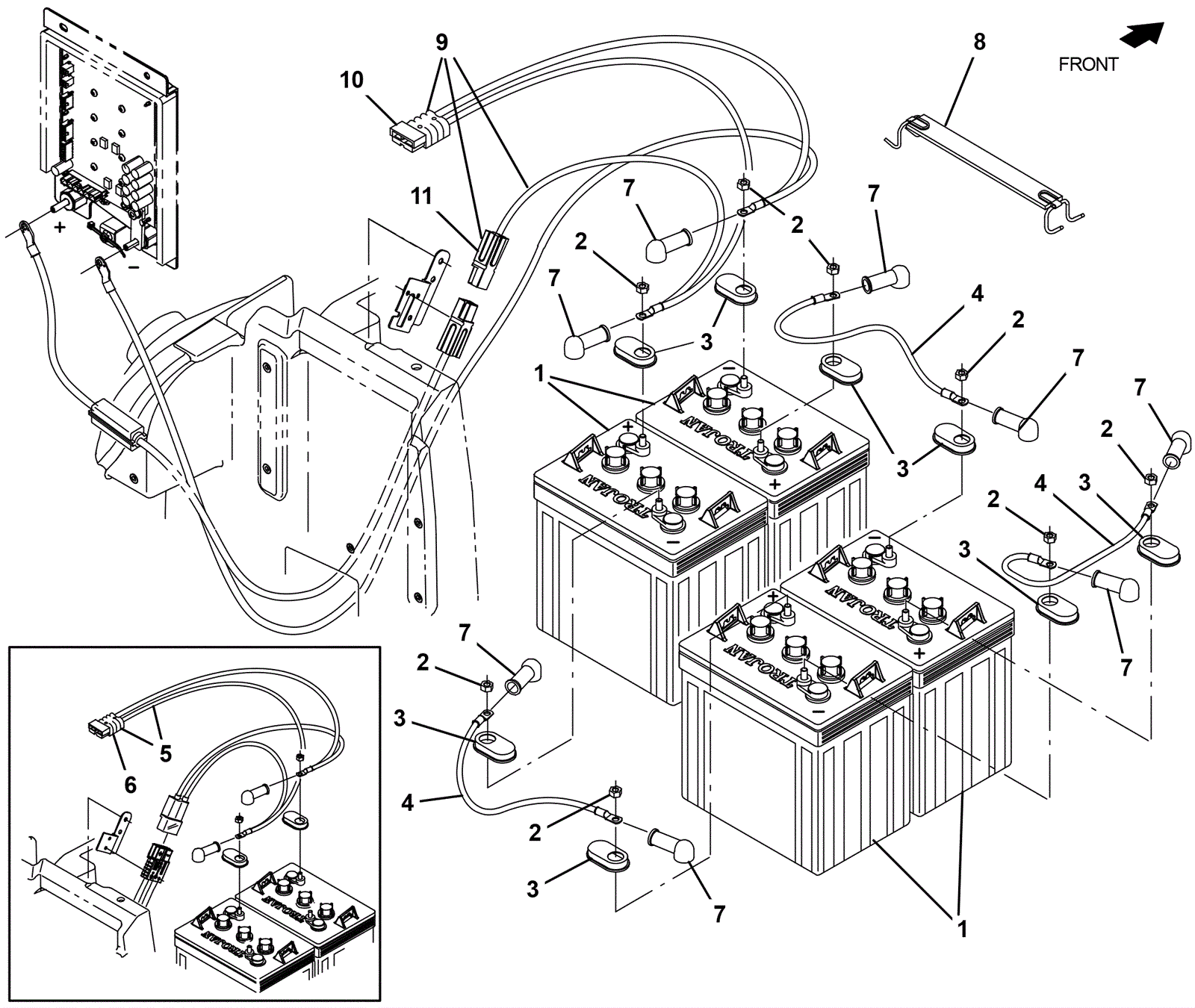

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
162-0003
|
6V 225Ah wet battery (SNSR) |
4 |
|
|
1b |
162-0043
|
6V 224Ah AGM battery (Group GC2) (SNSR) |
4 |
|
|
2 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
|
3 |
275-5948
|
Battery terminal cover (black) |
8 |
(WET battery) |
|
4 |
175-9591
|
Battery cable (black) |
3 |
|
|
5 |
375-5133
|
Battery harness kit |
1 |
(includes 6) (before SN 10897477) |
|
6 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
(before SN 10897477) |
|
7 |
175-1103
|
Battery cable boot (black) |
8 |
|
|
8 |
375-4188
|
Battery lift strap |
1 |
(WET battery) |
|
9 |
375-5143
|
Battery cable |
1 |
(includes 10-11) (after SN 10897476) |
|
10 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
(after SN 10897476) |
|
11 |
275-9406
|
Anderson connector |
1 |
(after SN 10897476) |
|
