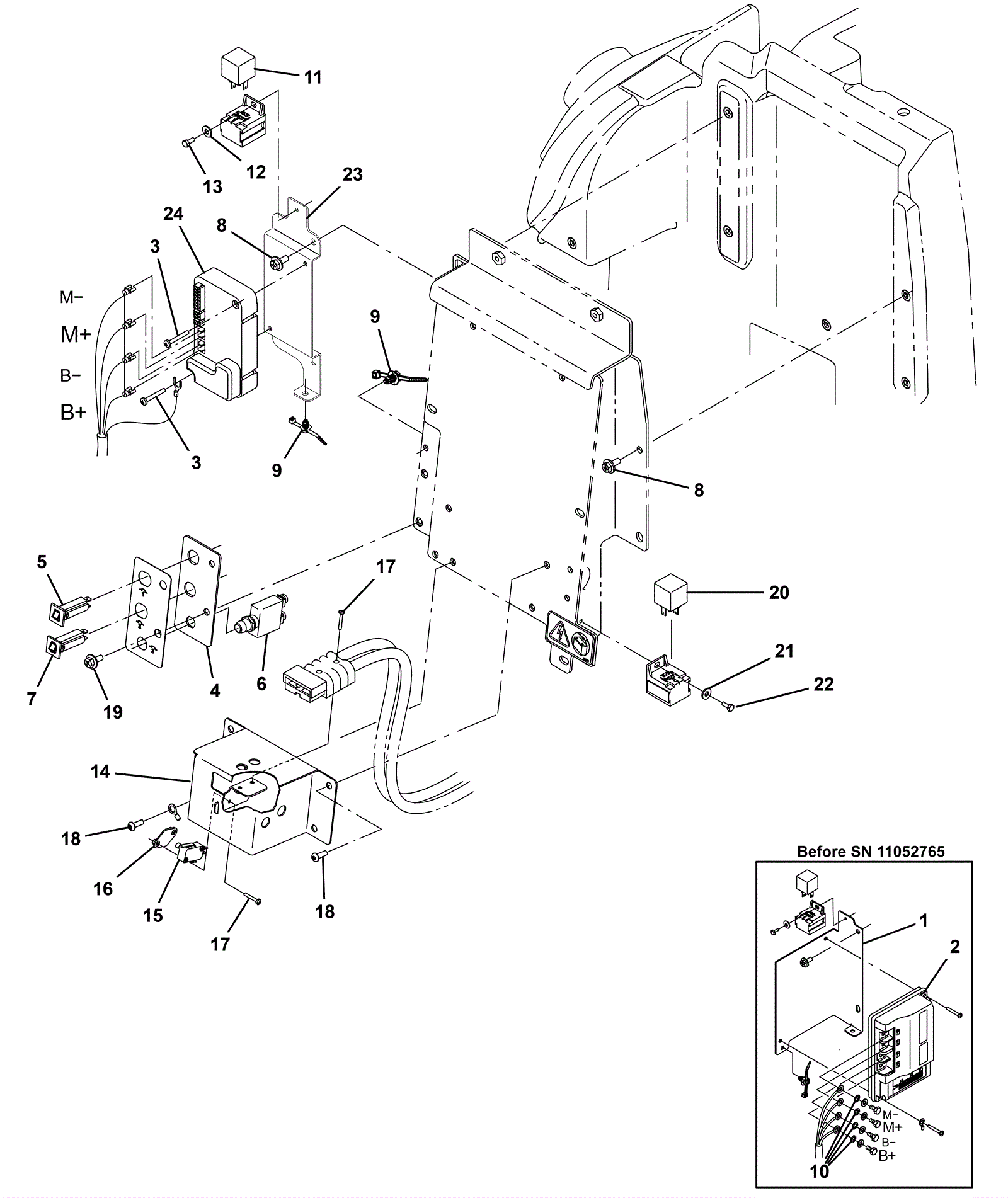

SPEED SCRUB 350 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-4241 Weldment bracket $65.34 1 (before SN 11052765) usually ships 5-16 days
2 375-5138 Speed controller $514.80 1 (before SN 11052765) usually ships 5-16 days
3 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 usually ships 11-24 days
4 375-4243 Circuit breaker mounting bracket $15.95 1 usually ships 5-16 days
5 375-0170 Circuit breaker $8.25 1 ships same day
6 375-4244 70amp circuit breaker (Tennant Industrial) $47.60 1 usually ships 5-16 days
7 275-9986 10amp circuit breaker (Tennant Industrial) $7.52 1 ships same day
8 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 6 ships same day
9 275-5197 Fir tree clip $1.65 1 usually ships 5-16 days
10 999-0238 Washer 1/4 internal star lock zinc plated $0.99 4 (before SN 11052765) ships same day
11 175-8635 40amp relay $28.60 1 ships same day
12 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
13 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 1 ships same day
14 375-4245 Charger socket cover weldment $63.36 1 usually ships 5-16 days
15 375-0226 Mircroswitch $10.12 1 usually ships 5-16 days
16 175-7839 Switch plate $33.00 1 usually ships 5-16 days
17 999-1040 Screw M3-.5 x 20mm pan head $0.99 4 ships same day
18 999-1403 Screw M8 x 16mm torx head $2.90 4 ships same day
19 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
20 175-8635 40amp relay $28.60 1 ships same day
21 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
22 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 1 ships same day
23 375-0022 I-Drive mounting bracket weldment $87.81 1 usually ships 5-16 days
24 375-3234 Drive module kit $388.74 1 ships same day
