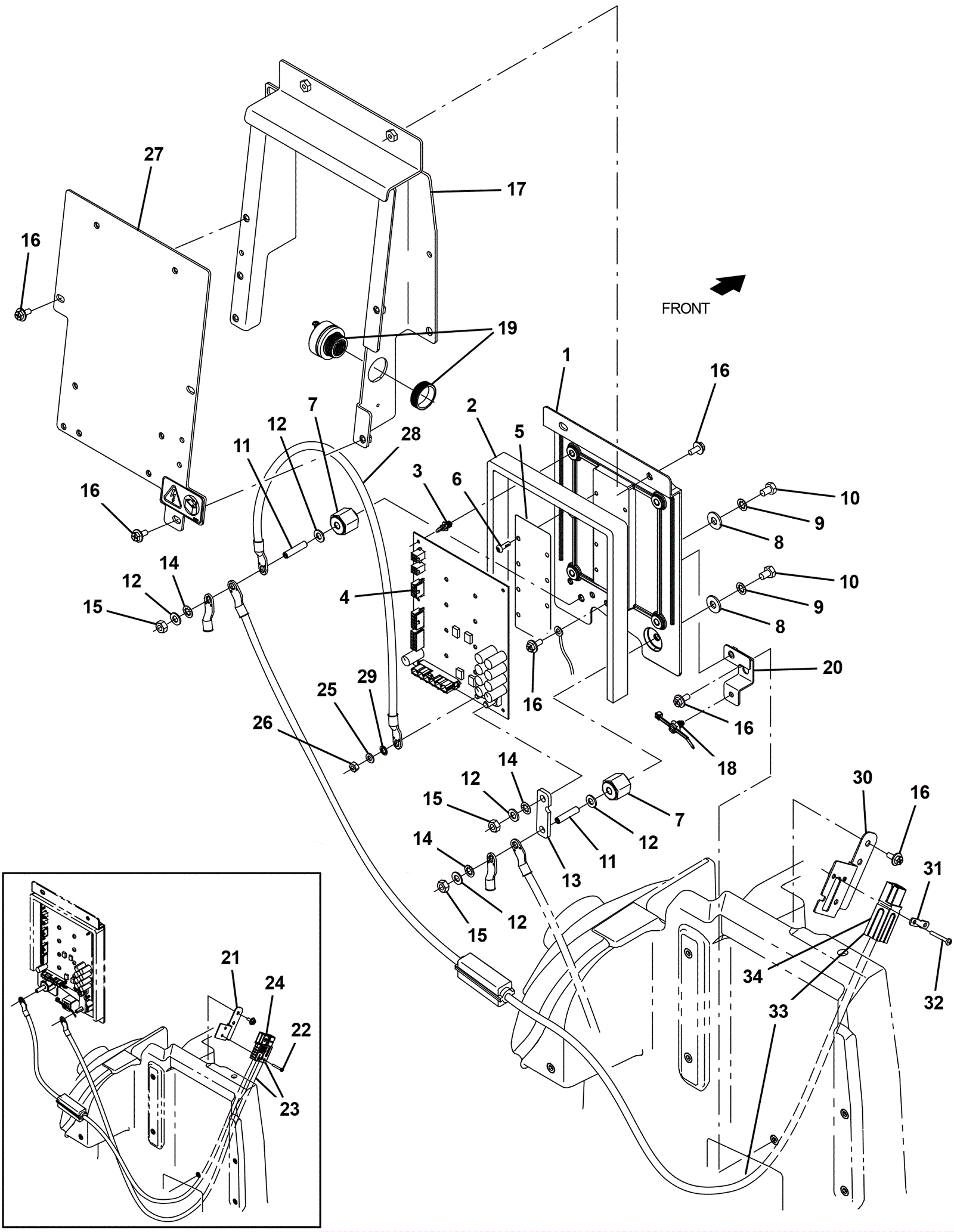

SPEED SCRUB 350 Electrical Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0178 Circuit board heat sink $106.37 1 usually ships 10-16 days
2 375-0177 Circuit board cover gasket $26.73 1 usually ships 10-16 days
3 275-5465 Standoff $1.85 5 usually ships 10-16 days
4 375-0174 Circuit board assembly $755.04 1 (requires Tennant True service or an authorized Tennant service provider) ships same day
5 375-0173 Circuit board pad $25.74 1 usually ships 10-16 days
6 999-1403 Screw M8 x 16mm torx head $2.90 8 ships same day
7 375-0176 Insulated stand-off $13.20 2 usually ships 1-5 days
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
9 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
10 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 2 ships same day
11 175-4271 Screw M8 x 35mm set $4.88 2 usually ships 10-16 days
12 275-5475 Washer M8-.4 x 1.6mm brass $3.04 5 usually ships 1-5 days
13 375-0181 Fuse $18.04 1 usually ships 1-5 days
14 999-1053 Washer 5/16 internal star lock stainless steel $0.99 3 ships same day
15 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) $5.17 3 usually ships 10-16 days
16 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 7 ships same day
17 375-4236 Control weldment cover $152.79 1 usually ships 10-16 days
18 275-5197 Fir tree clip $2.11 5 usually ships 10-16 days
19 375-0658 Warning alarm (Tennant Industrial) $83.35 1 usually ships 1-5 days
20 375-4237 Weldment bracket $38.39 1 usually ships 10-16 days
21 375-4238 Mounting weldment plate $33.00 1 (before SN 10897477) usually ships 10-16 days
22 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 (before SN 10897477) usually ships 12-18 days
23 375-5133 Battery harness kit $300.08 1 (before SN 10897477) (includes 24) usually ships 10-16 days
24 991-2103 50amp charger plug SB50 with pins (red) $7.19 1 ships same day
25 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
26 275-5479 Nut M6 x 1 (Tennant Industrial) $2.80 1 usually ships 10-16 days
27 375-5134 Charger plate weldment $187.44 1 usually ships 10-16 days
28 375-3320 4 gauge battery jumper cable 15 inch (red) $32.01 1 usually ships 10-16 days
29 175-4544 Washer M6 locking $4.09 1 ships same day
30 375-5135 Battery disconnect plate weldment mount $28.93 1 (after SN 10897476) usually ships 10-16 days
31 375-5136 Battery connector plate washer $9.02 1 (after SN 10897476) usually ships 10-16 days
32 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 (after SN 10897476) usually ships 12-18 days
33 375-5137 Battery fuse cable $114.29 1 (includes 34) (after SN 10897476) usually ships 10-16 days
34 275-9406 Anderson connector $18.37 1 (after SN 10897476) ships same day
