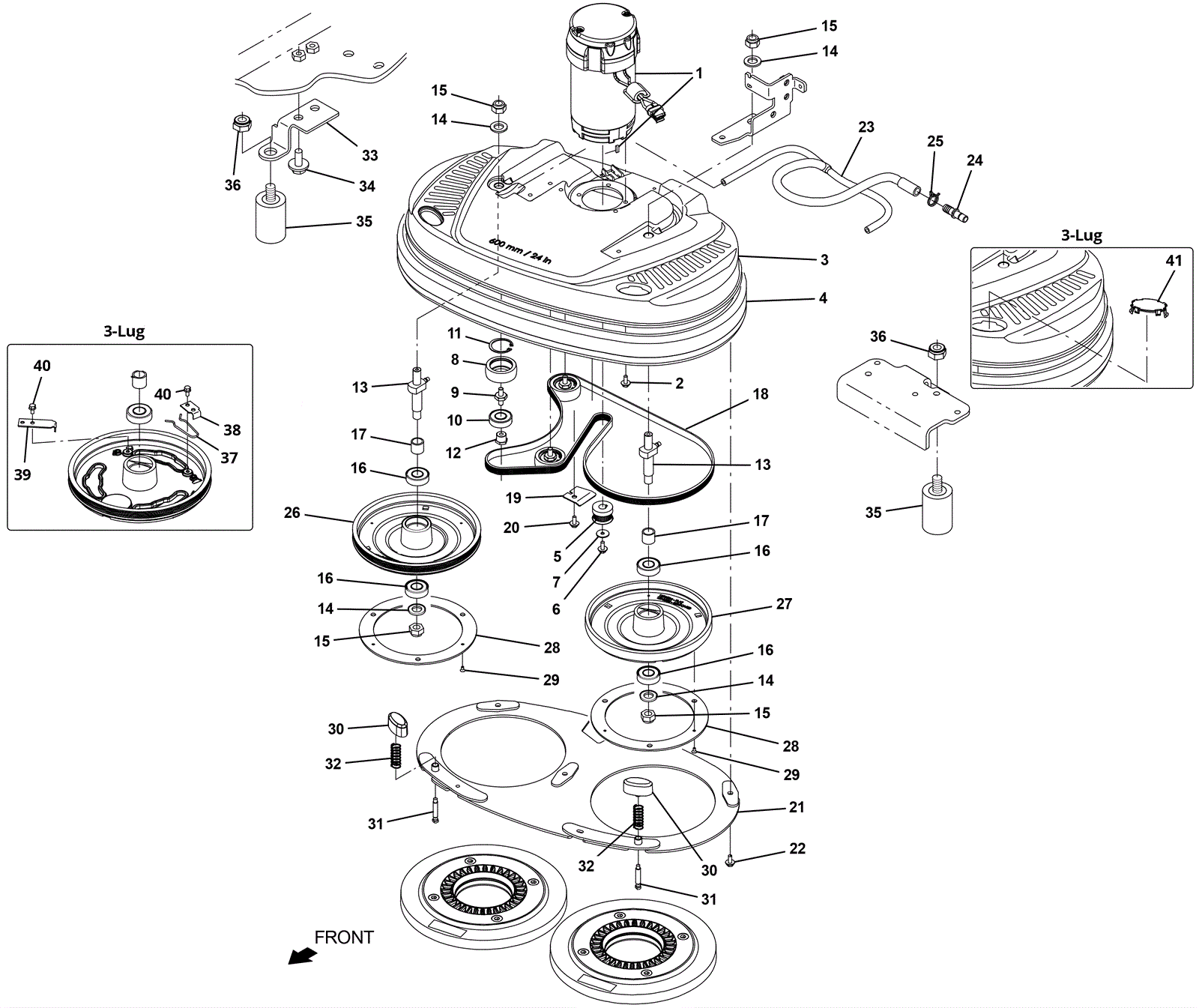

SPEED SCRUB 350 Scrub Head Assembly - 24 inch

#PartDescriptionPriceReqNotesAvailability
1a 375-3157 24V brush motor $987.25 1 (includes 1b) usually ships 5-16 days
1b 275-9904 Carbon brush (pkg of 4) $85.58 1 usually ships 5-16 days
2 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
3 375-0058 24 inch scrub head housing $586.19 1 usually ships 5-16 days
4 275-1466 24 inch (600mm) bumper skirt assembly $279.95 1 ships same day
5 375-0065 Sheave $92.62 1 usually ships 5-16 days
6 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 ships same day
7 175-1424 Washer flat $3.96 1 usually ships 5-16 days
8 275-9915 Idler pulley $67.21 3 usually ships 5-16 days
9 375-0067 Stud $57.42 3 usually ships 5-16 days
10 375-0036 Ball bearing $20.79 3 ships same day
11 275-9914 Retaining ring $23.21 3 usually ships 5-16 days
12 275-9916 Spacer $11.99 3 usually ships 5-16 days
13 375-0064 Pulley shaft weldment $224.07 2 usually ships 5-16 days
14 275-1469 Shaft spacer $8.03 4 usually ships 5-16 days
15 375-0063 Nut M14 x 2mm hex lock (Tennant Industrial) $4.84 4 usually ships 5-16 days
16 375-0036 Ball bearing $20.79 4 ships same day
17 275-9918 Tube $6.27 2 usually ships 5-16 days
18 275-9917 Drive belt $121.77 1 usually ships 5-16 days
19 375-0057 Belt guide bracket $14.30 1 usually ships 1-5 days
20 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 ships same day
21 375-0059 Splash guard bracket weldment $222.64 1 usually ships 5-16 days
22 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 5 ships same day
23 375-0056 Water distribution manifold $124.08 1 usually ships 5-16 days
24 375-0055 Straight plastic fitting $13.64 1 usually ships 5-16 days
25 375-0291 Hose clamp $3.96 1 ships same day
26a 375-0069 Grooved magnetic drive hub $127.82 1 (magnetic) usually ships 5-16 days
26b 275-9919 Drive hub $61.27 1 (3-lug) usually ships 5-16 days
27a 375-0066 Magnetic drive hub $127.82 1 (magnetic) usually ships 5-16 days
27b 275-9921 Drive hub $48.46 1 (3-lug) ships same day
28 375-0068 Magnetic hub ring $24.09 2 ships same day
29 175-4251 Screw M4 x 8mm flat head phillips $3.19 6 ships same day
30 375-0062 Plunger pad button $11.00 2 ships same day
31 375-0060 Short stop pin $21.56 2 usually ships 5-16 days
32 375-0061 Spring $11.11 2 ships same day
33 375-4224 Brush release plate $25.19 1 usually ships 5-16 days
34 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 2 ships same day
35 375-4185 Brush bumper release $12.87 2 usually ships 5-16 days
36 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
37 175-7924 Spring clip $6.60 2 (3-lug) ships same day
38 175-7921 Brush plate clamp $20.79 2 (3-lug) ships same day
39 275-9920 Release stop $18.04 2 (3-lug) usually ships 5-16 days
40 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 8 (3-lug) ships same day
41 375-3156 Hole plug $58.63 2 (3-lug) usually ships 5-16 days
