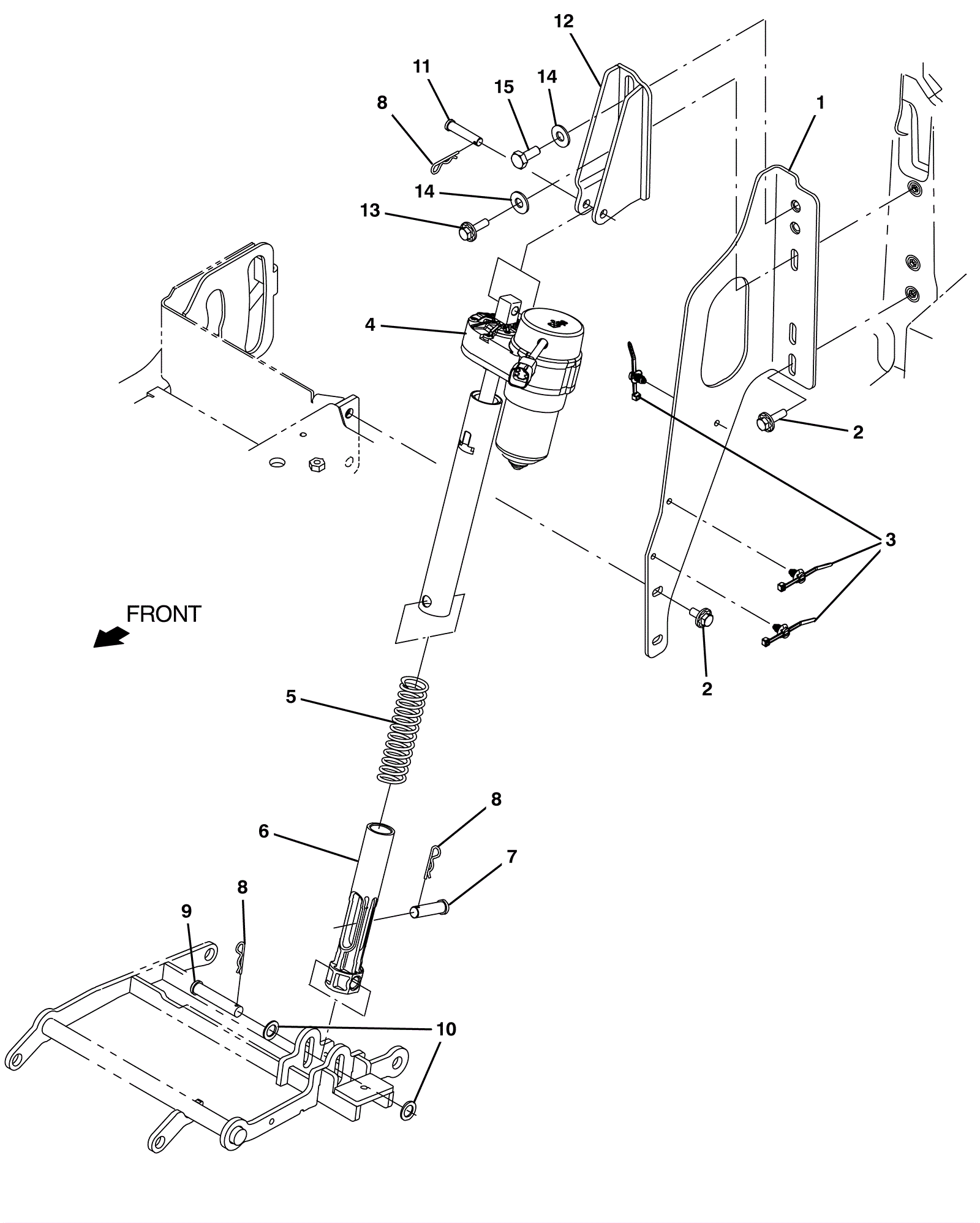

SPEED SCRUB 350 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-7819 Actuator plate weldment $78.43 1 usually ships 5-16 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
3 275-5197 Fir tree clip $1.65 3 usually ships 5-16 days
4 375-7820 Actuator $457.27 1 usually ships 5-16 days
5 375-4175 Compression spring $6.05 1 usually ships 5-16 days
6 375-4176 Spring plunger tube $14.96 1 usually ships 5-16 days
7 174-0347 Clevis pin 1/2 x 1.75 $1.00 1 usually ships 1-5 days
8 175-2117 Cotter pin $3.96 3 ships same day
9 175-0716 Clevis pin $3.96 1 usually ships 5-16 days
10 175-1825 Washer $3.85 2 ships same day
11 175-2592 Clevis Pin 0.37 D X 1.75 L $3.96 1 ships same day
12 375-4177 Actuator weldment bracket $38.28 1 usually ships 5-16 days
13 999-1653 Screw M8-1.25 x 30mm hex head stainless steel $4.36 1 ships same day
14 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
15 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 2 ships same day
