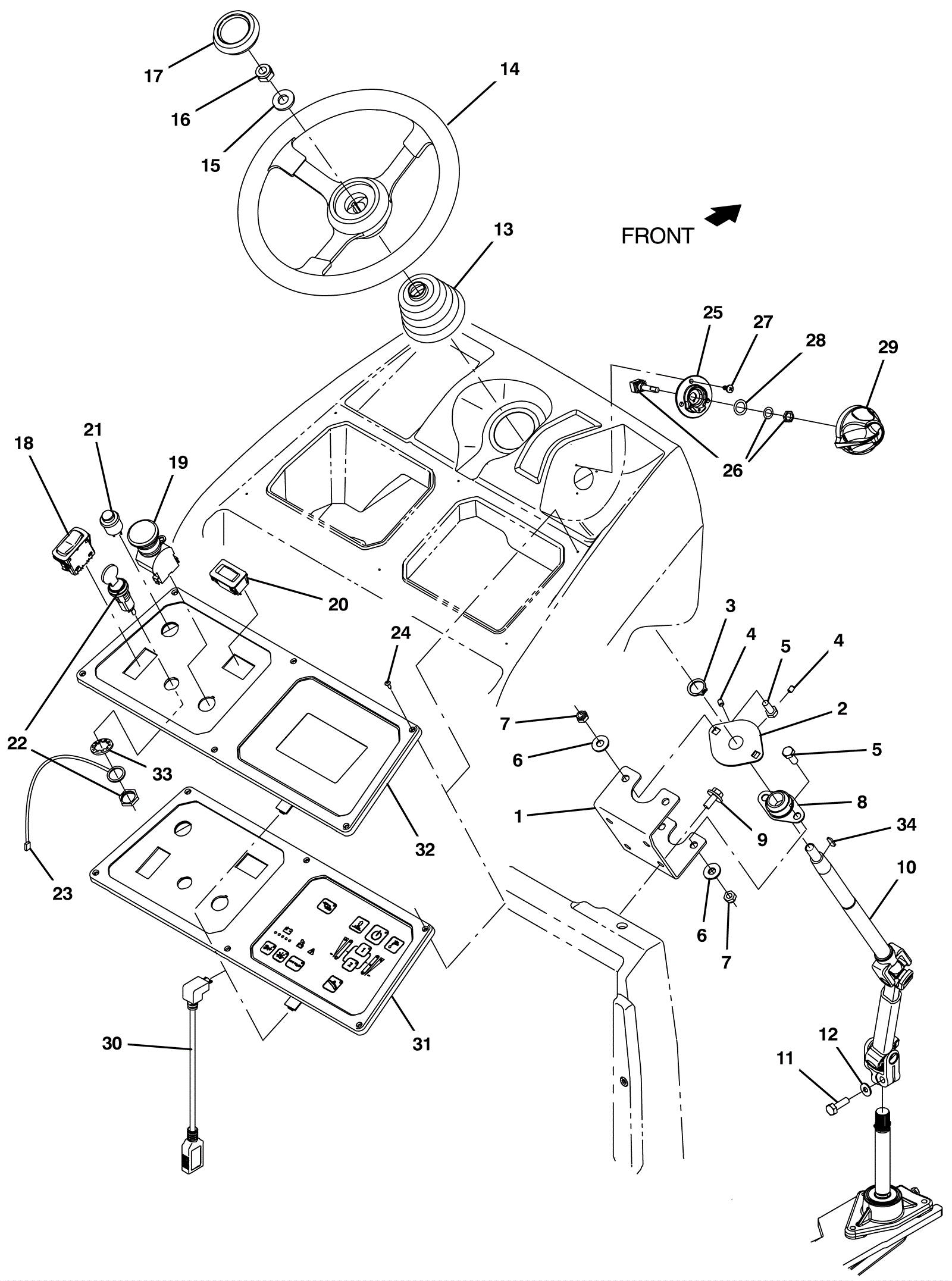

SPEED SCRUB 350 Instrument Panel And Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-4069 Steering bracket $37.29 1 usually ships 5-16 days
2 275-7601 Flanged bearing (Tennant Industrial) $56.28 1 usually ships 1-5 days
3 275-2003 Retaining ring (Tennant Industrial) $5.85 1 usually ships 5-16 days
4 175-9339 Screw M6-1 x 8mm set socket $3.96 2 usually ships 5-16 days
5 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
8 175-3201 Flanged bearing $5.83 1 usually ships 5-16 days
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
10a 375-5098 Steering shaft $469.70 1 (before SN 10890646) usually ships 5-16 days
10b 375-5099 Steering shaft $409.09 1 (after SN 10890645) usually ships 5-16 days
11 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
13 275-8081 Steering shaft bellows $9.35 1 usually ships 5-16 days
14 275-8079 Steering wheel $200.75 1 usually ships 5-16 days
15 275-9343 WASHER, FLAT, 0.53B 1.12D .11, STL, PL (Tennant Industrial) $4.14 1 ships same day
16 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
17 275-8080 Steering wheel cap $11.99 1 usually ships 5-16 days
18 375-4071 On/off rocker switch $108.13 1 usually ships 5-16 days
19 275-1416 Safety shut-off switch $40.01 1 ships same day
20 275-9900 Hour meter $52.69 1 ships same day
21 275-9354 Horn switch $34.76 1 ships same day
22a 175-7872 Key switch with 2 keys $53.13 1 (includes 22b) usually ships 1-5 days
22b 991-1634 Key (pkg of 2) $8.54 1 usually ships 3-10 days
23 275-5428 Wiring harness $21.23 1 usually ships 1-5 days
24 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 6 ships same day
25 375-4072 Speed knob mount $7.70 1 usually ships 5-16 days
26 375-4073 Potentiometer $49.94 1 usually ships 5-16 days
27 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 3 ships same day
28 375-4074 O-ring seal $8.36 1 usually ships 5-16 days
29 375-4075 Speed knob $9.90 1 usually ships 5-16 days
30 375-4076 USB cable $25.52 1 usually ships 5-16 days
31 375-7831 Membrane control $548.13 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 5-16 days
32 375-7832 Pro panel control $1,139.71 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 5-16 days
33 375-4077 Lock washer (Tennant Industrial) $4.01 1 usually ships 5-16 days
34a 375-4078 Square keyway $1.21 1 (before SN 10890646) usually ships 5-16 days
34b 275-1468 Square keyway $3.96 1 (after SN 10890645) ships same day
