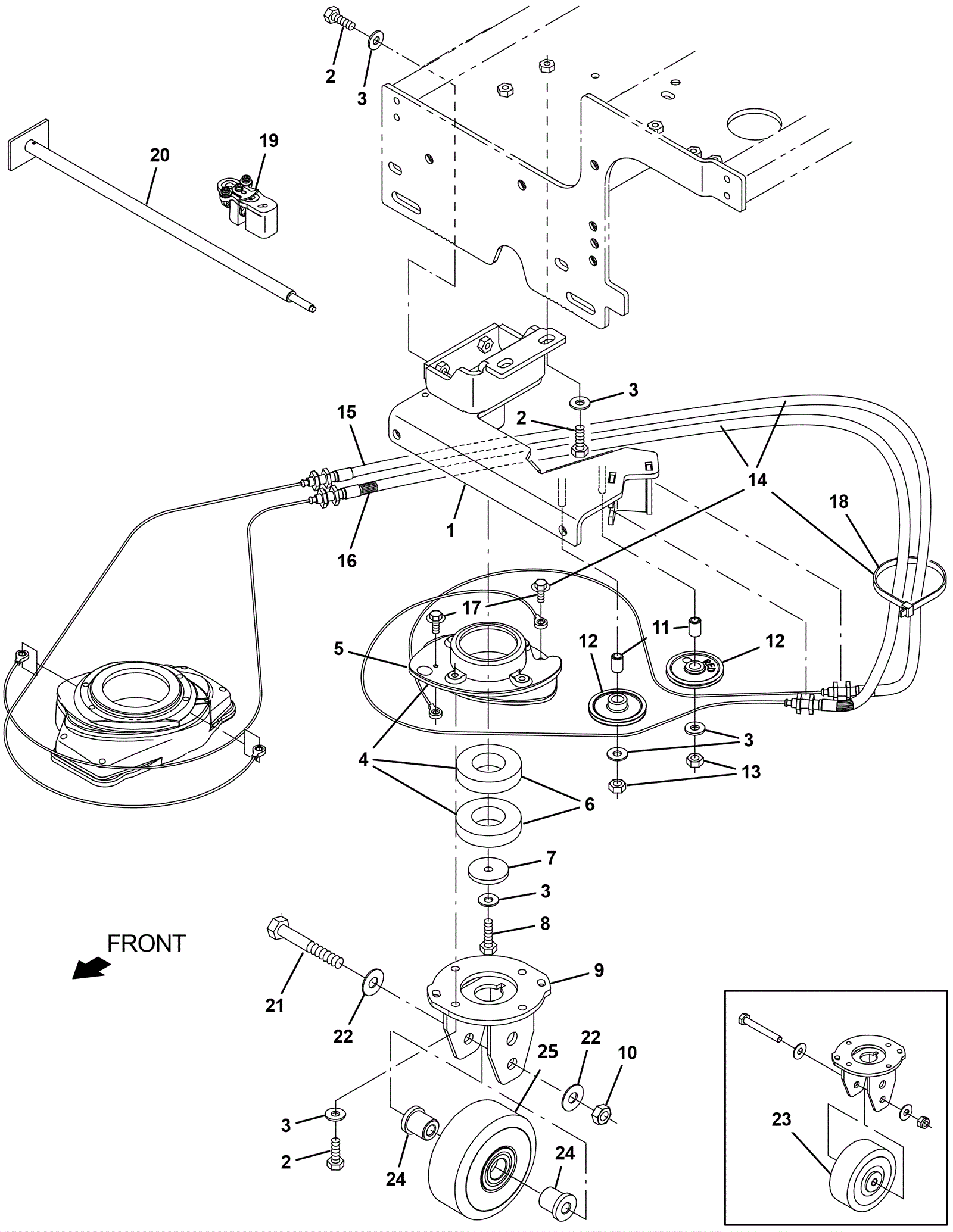

SPEED SCRUB 350 Steering Cables And Pivot Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-4060 Right hand wheel mount weldment $382.36 1 usually ships 10-16 days
2 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 10 ships same day
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 13 ships same day
4 375-7821 Right hand bearing housing $185.90 1 (includes 5-6) usually ships 10-16 days
5 375-4061 Right hand bearing housing $41.91 1 usually ships 10-16 days
6 375-4062 Ball bearing (Tennant Industrial) $57.51 2 usually ships 10-16 days
7 375-4063 Steering plate $14.63 1 usually ships 10-16 days
8 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 ships same day
9 375-4064 Bearing retainer weldment $47.63 1 usually ships 10-16 days
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
11 175-3398 Sleeve $7.48 2 usually ships 10-16 days
12 375-4049 Plastic cable guide $12.98 2 usually ships 10-16 days
13 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
14a 375-7822 Steering cable installation tool kit $3,603.93 1 (includes 14b-20) usually ships 10-16 days
14b 375-7823 Steering cable $423.83 1 (includes 15-18) usually ships 10-16 days
15 375-4065 Top steering cable $88.77 1 (requires tool kit 375-7824) usually ships 10-16 days
16 375-4066 Bottom steering cable $88.22 1 (requires tool kit 375-7824) usually ships 10-16 days
17 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
18 175-2226 Nylon wire tie $4.09 1 ships same day
19a 375-7824 Steering installation tool kit $3,252.15 1 (includes 19b-20) usually ships 10-16 days
19b 375-7825 Cable tension gauge $1,945.57 1 usually ships 10-16 days
20 475-3437 TOOL, ALIGN, WHEEL $640.75 1 usually ships 10-16 days
21 999-1987 Screw M12-1.75 x 90mm hex cap $14.83 1 ships same day
22 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
23 375-5089 Wheel kit $246.29 1 (before SN 10995776) usually ships 10-16 days
24 375-5096 Right hand spacer axle $38.94 2 (after SN 10995775) ships same day
25 375-5097 Wheel $132.88 1 (after SN 10995775) usually ships 10-16 days
