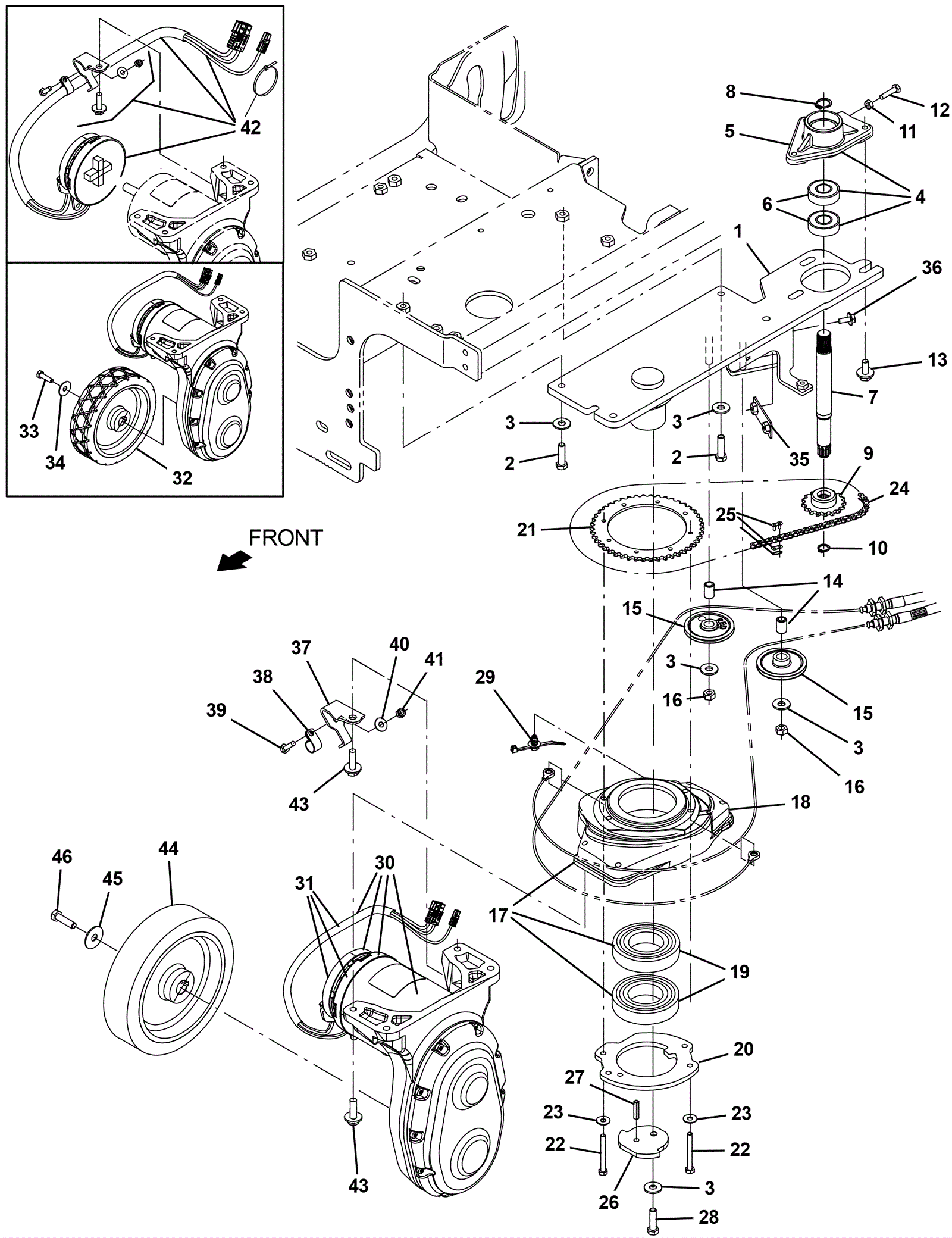

SPEED SCRUB 350 Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-4044 Steering plate $466.51 1 usually ships 5-16 days
2 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 5 ships same day
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
4 375-7827 Bearing housing kit $121.00 1 (includes 5-6) usually ships 5-16 days
5 375-4045 Input housing bearing $37.62 1 usually ships 5-16 days
6 175-9071 Ball bearing 43/64 x 1-37/64 x 15/32 $17.93 2 usually ships 1-5 days
7 375-4046 Input steering shaft $430.21 1 usually ships 5-16 days
8 375-4047 Retaining ring (Tennant Industrial) $1.50 1 usually ships 5-16 days
9 375-4048 Sprocket $17.93 1 usually ships 5-16 days
10 275-2805 RING, RETAINING, EXT, 0.50D, HD (Tennant Industrial) $4.84 1 usually ships 1-5 days
11 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
12 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 1 ships same day
13 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 3 ships same day
14 175-3398 Sleeve $7.26 2 usually ships 5-16 days
15 375-4049 Plastic cable guide $12.65 2 usually ships 5-16 days
16 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
17 375-7828 Pulley housing kit $264.55 1 (includes 18-19) usually ships 5-16 days
18 375-4050 Steering bearing housing $90.75 1 usually ships 5-16 days
19 375-4051 Ball bearing $47.85 2 usually ships 5-16 days
20 375-4052 Bearing retainer plate $15.95 1 usually ships 5-16 days
21 375-4053 Sprocket $34.54 1 usually ships 5-16 days
22 175-3400 Bolt M6-1 x 55mm hex head stainless steel $3.96 4 usually ships 1-5 days
23 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
24 375-4054 Chain $18.37 1 usually ships 5-16 days
25 175-3207 Master link $3.96 1 usually ships 5-16 days
26 375-4055 Steering plate $32.56 1 usually ships 5-16 days
27 375-4056 Roll pin (Tennant Industrial) $4.68 1 usually ships 5-16 days
28 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 ships same day
29 275-5197 Fir tree clip $1.65 1 usually ships 5-16 days
30a 375-5090 Front drive assembly $1,614.80 1 (includes 30c-31) (before SN 11025503) usually ships 5-16 days
30b 375-5091 Front drive assembly $1,797.07 1 (includes 30c-31) (after SN 11025502) usually ships 5-16 days
30c 275-9904 Carbon brush (pkg of 4) $85.58 1 usually ships 5-16 days
30d 375-7830 Parking brake $607.09 1 usually ships 5-16 days
31 375-5094 Drive harness $872.41 4 usually ships 5-16 days
32a 375-4058 Drive wheel $165.11 1 (after SN 11025503) ships same day
32b 375-5095 Drive wheel $208.67 1 (before SN 11025503) ships same day
33 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 (before SN 11025503) ships same day
34 175-2298 Washer .38 x .06 stainless steel $3.96 1 (before SN 11025503) usually ships 5-16 days
35 375-4059 Plate $12.98 1 usually ships 5-16 days
36 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
37 375-5093 Harness bracket $18.81 1 (after SN 10903155) usually ships 5-16 days
38 175-3170 P clamp $3.08 1 (after SN 10903155) usually ships 1-5 days
39 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 (after SN 10903155) ships same day
40 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 (after SN 10903155) ships same day
41 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 (after SN 10903155) ships same day
42 375-5094 Drive harness $872.41 1 (before SN 10903156) usually ships 5-16 days
43 999-1653 Screw M8-1.25 x 30mm hex head stainless steel $4.36 4 ships same day
44 375-4058 Drive wheel $165.11 1 (after SN 11025502) ships same day
45 275-1169 Washer .40 x 12mm flat $5.61 1 (after SN 11025502) ships same day
46 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 1 (after SN 11025502) ships same day
