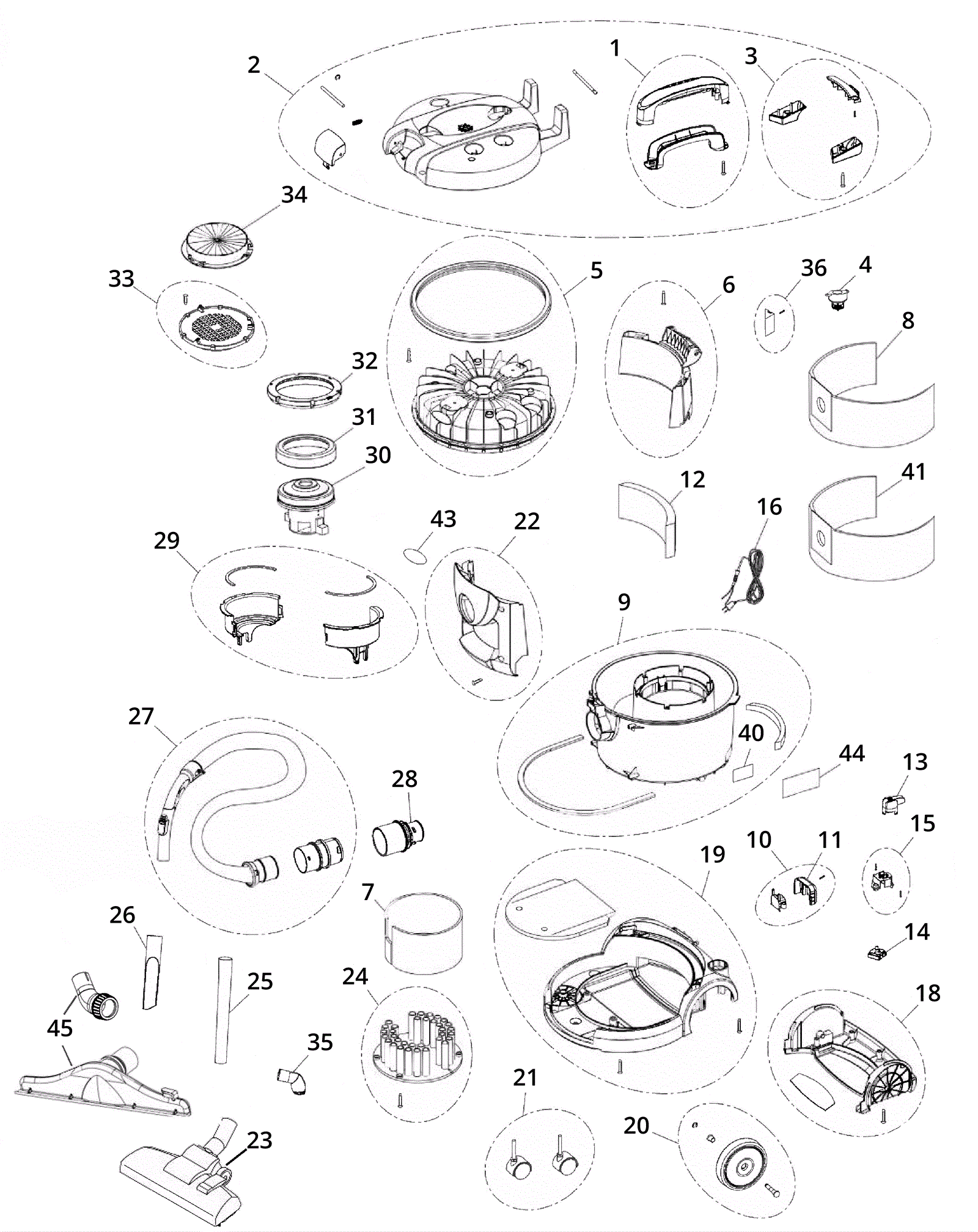

V6 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-1473 Handle kit $20.79 1 usually ships 13-17 days
2 375-1474 Cover assembly $148.28 1 (includes 1 and 3) usually ships 13-17 days
3 375-1475 Hinge cover kit $9.24 1 usually ships 13-17 days
4 375-1476 Safety valve kit $25.41 1 usually ships 13-17 days
5 375-1477 Lid kit $111.54 1 usually ships 13-17 days
6 375-1478 Outlet air cover kit $37.40 1 usually ships 13-17 days
7 375-1479 Motor insulation $13.75 1 usually ships 13-17 days
8 275-7392 Vacuum bag (pkg of 12) $44.00 1 usually ships 13-17 days
9 475-2270 BODY KIT, REPLMT, W/ WARN LABEL [NA, V6] $268.51 1 (includes 40) usually ships 13-17 days
10 375-1480 Plug retainer kit $35.86 1 (includes 11) usually ships 13-17 days
11 375-1481 Plug retainer $13.75 1 usually ships 13-17 days
12 375-1482 Outlet air filter $14.19 1 usually ships 13-17 days
13 375-1483 Switch $8.69 1 usually ships 13-17 days
14 375-1207 Switch $33.88 1 usually ships 13-17 days
15 375-1484 Switch housing $17.93 1 usually ships 13-17 days
16 275-6591 Power cord assembly (yellow) $270.16 1 usually ships 13-17 days
18 375-1485 Base cover kit $41.58 1 usually ships 13-17 days
19 375-1486 Base kit $128.26 1 usually ships 13-17 days
20 375-1487 Wheel assembly $45.32 1 usually ships 13-17 days
21 375-1488 Caster assembly $23.10 2 usually ships 13-17 days
22 375-1489 Suction plate $30.47 1 usually ships 13-17 days
23 375-1385 Floor tool $104.50 1 usually ships 13-17 days
24 375-1490 Insulation $41.14 1 usually ships 13-17 days
25 375-1491 Extension tube $80.63 1 usually ships 13-17 days
26 375-1485 Base cover kit $41.58 1 usually ships 13-17 days
27 375-1471 Vacuum hose $162.91 1 usually ships 13-17 days
28 375-1493 Body $18.04 1 usually ships 13-17 days
29 375-1494 Outer motor housing kit $35.86 1 usually ships 13-17 days
30 375-1495 120V vacuum motor $455.62 1 usually ships 13-17 days
31 375-1496 Lower motor seal kit $25.63 1 usually ships 13-17 days
32 375-1497 Outer motor housing seal kit $20.35 1 usually ships 13-17 days
33 375-1498 Air intake grill $25.41 1 usually ships 13-17 days
34 375-0290 HEPA filter $37.40 1 ships same day
35 375-1499 Brush tool $17.16 1 usually ships 13-17 days
36 375-1500 Tool holder kit $17.71 1 usually ships 13-17 days
40 375-1501 Warning decal $10.34 1 usually ships 13-17 days
41 375-1502 Cloth bag $39.38 1 usually ships 13-17 days
43 375-1503 Tennant decal $12.76 1 usually ships 13-17 days
44 375-1504 V6 decal $7.59 1 usually ships 13-17 days
45 275-6736 Carpet tool with adapter $94.38 1 usually ships 13-17 days
N/S 375-1505 120V circuit board $55.22 1 usually ships 13-17 days
