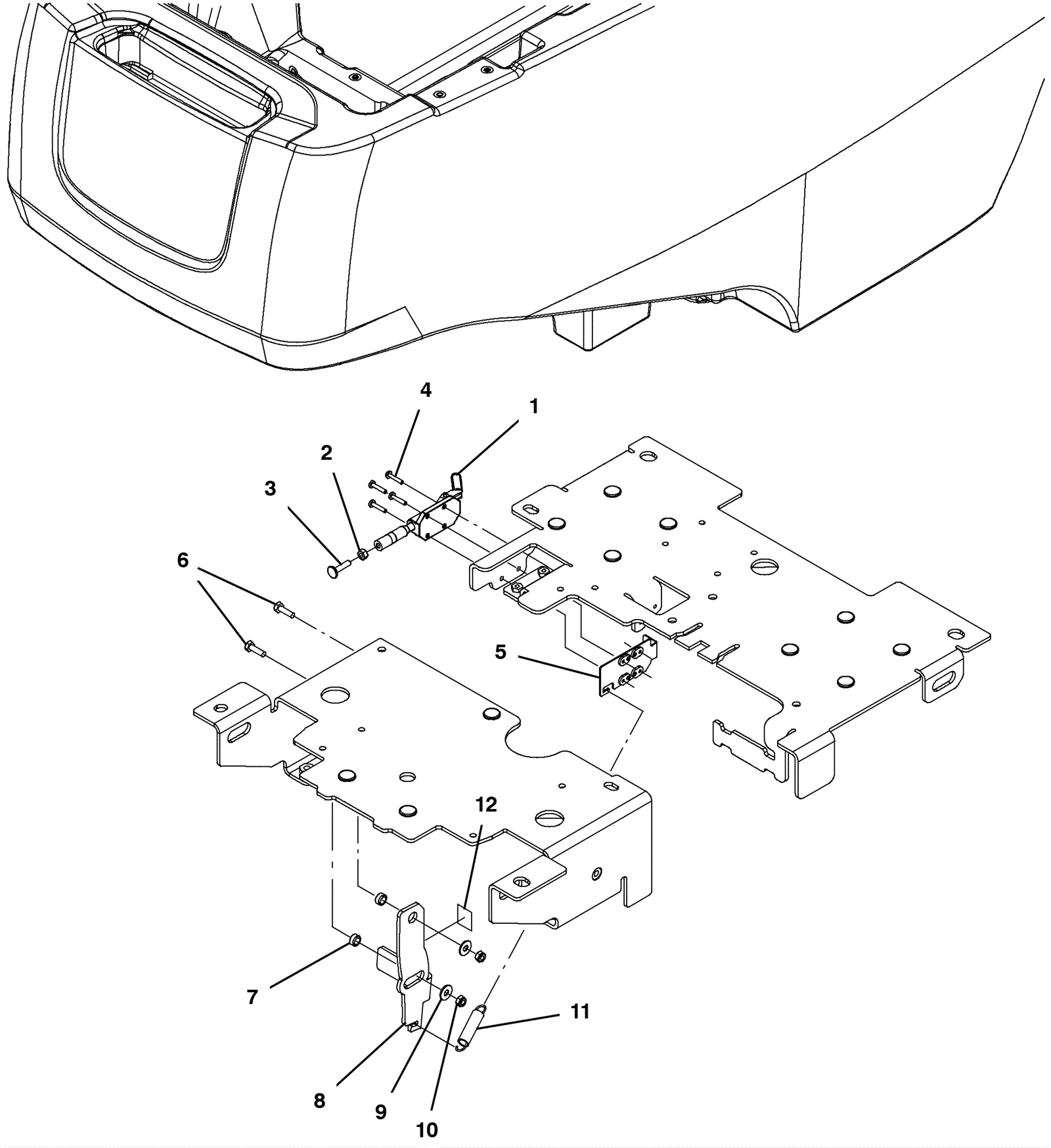

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
375-3356
|
Parking brake clamp |
$70.62
|
1 |
|
usually ships 10-16 days |
2 |
999-1308
|
Nut M6-1 hex stainless steel |
$0.99
|
1 |
|
ships same day |
3 |
275-1444
|
Screw M6 x 25mm stainless steel |
$5.83
|
1 |
|
usually ships 10-16 days |
4 |
175-5326
|
Screw 4 x 45/64 x 20 pan head stainless steel |
$4.36
|
4 |
|
usually ships 10-16 days |
5 |
375-3357
|
Brake plate weldment |
$33.55
|
1 |
|
usually ships 10-16 days |
6 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
$0.99
|
2 |
|
ships same day |
7 |
175-0550
|
Sleeve |
$5.02
|
2 |
|
ships same day |
8 |
375-3358
|
Parking brake shoe |
$27.83
|
1 |
|
usually ships 10-16 days |
9 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
10 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$0.99
|
2 |
|
ships same day |
11 |
175-7129
|
Tension spring |
$8.25
|
1 |
|
ships same day |
12 |
375-3359
|
Parking brake decal |
$36.08
|
1 |
|
usually ships 10-16 days |
